Recliner Cover Replacement

RECLINER COVER REPLACEMENT

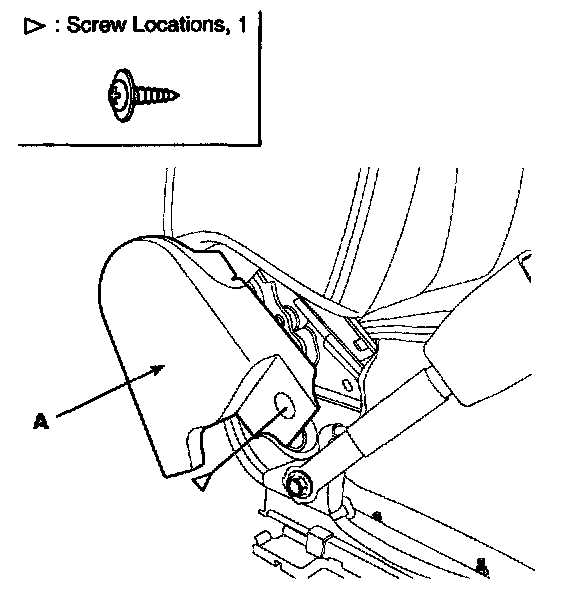

1. Remove the cover (A).

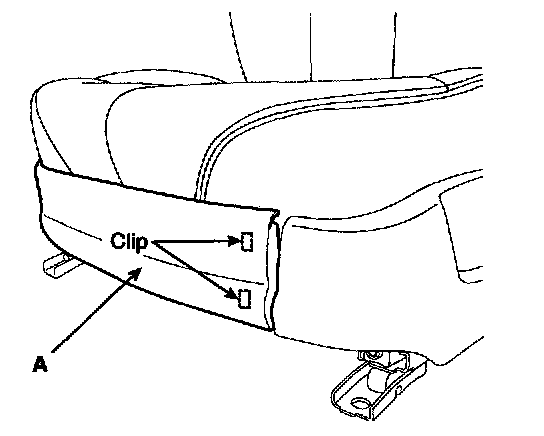

2. Loosen the recliner mounting screw and clip, then remove the recliner cover (A).

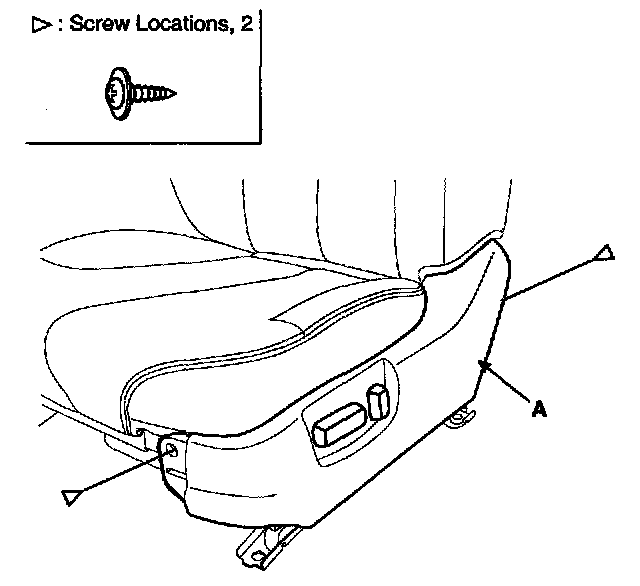

3. Loosen the mounting screw, then remove the cover (A).
4. Installation is the reverse of removal.
