Body Electrical System

NOTE: The OEM offers 2 different service procedures for this component. It is up to the user to determine the correct procedure.

SUNROOF MOTOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the connector then remove the overhead console lamp assembly from the headliner.
3. Remove the head lining.

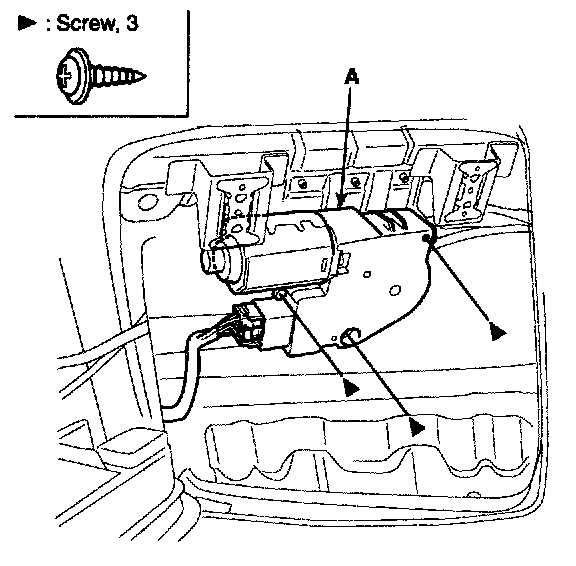

4. Remove the sunroof motor (A) after removing 3 screws and disconnect.
5. Installation is the reverse of removal.

RESETTING THE SUNROOF
Whenever the vehicle battery is disconnected or discharged, or you use the emergency handle to operate the sunroof, you have to reset your sunroof system as follows:.
1. Turn the ignition key to the ON position.
2. According to the position of the sunroof, do as follows.
1. In case that the sunroof has closed completely or been tilted Press the TILT UP button until the sunroof has tilted upward completely.
2. In case that the sunroof has slide-opened :
Press and hold the CLOSE button for more than 5 seconds until the sunroof has closed completely. Press and hold the CLOSE button for more than 5 seconds after the sunroof has closed completely. Press the TILT UP button until the sunroof has tilted upward completely.

3. Release the TILT UP button.
4. Press and hold the TILT UP button once again until the sunroof has raised above and returned to the maximum TILT UP position. When this is complete, the sunroof system is reset.
