Console: Service and Repair

FLOOR CONSOLE REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

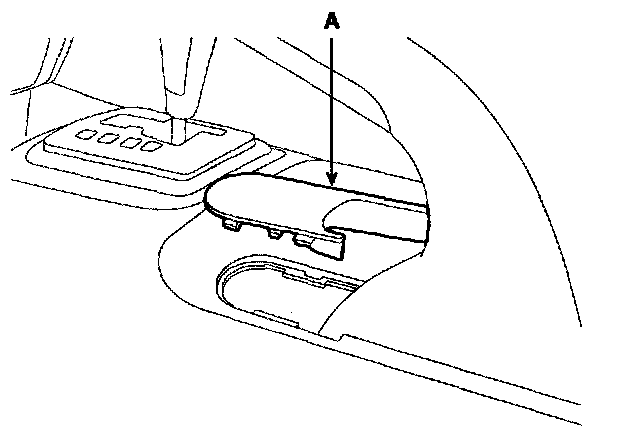

1. Remove the parking brake cover (A).

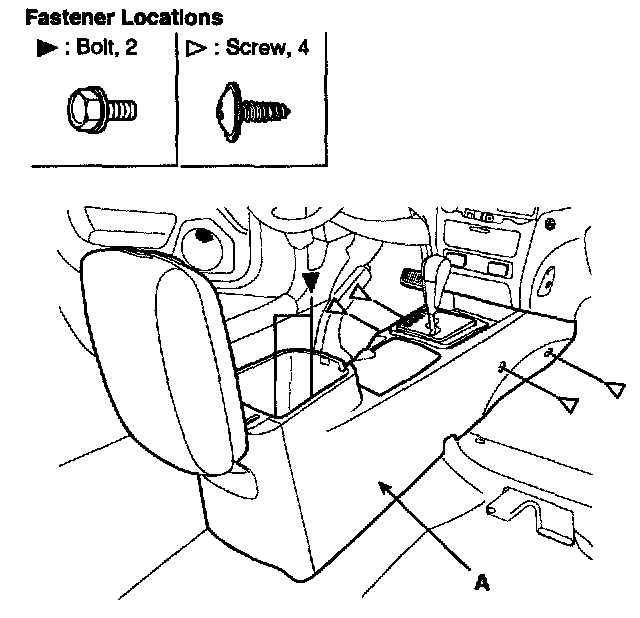

2. After loosening the console mounting bolt, remove the floor console assembly (A).
3. Disconnect the connectors.
4. Installation is the reverse of removal.
