Fuel Door: Service and Repair

FUEL FILL DOOR REPLACEMENT

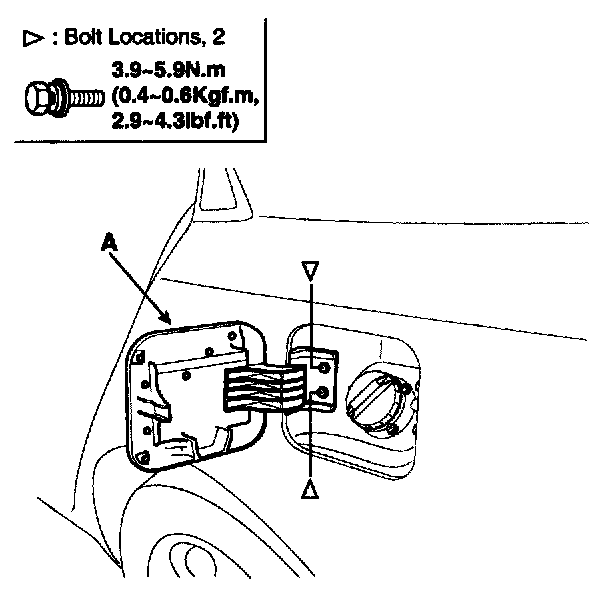

1. Loosen the bolts, then remove the fuel filler door (A).
2. Installation is the reverse of removal.

NOTE: Make sure the fuel fill door opens properly and locks securely

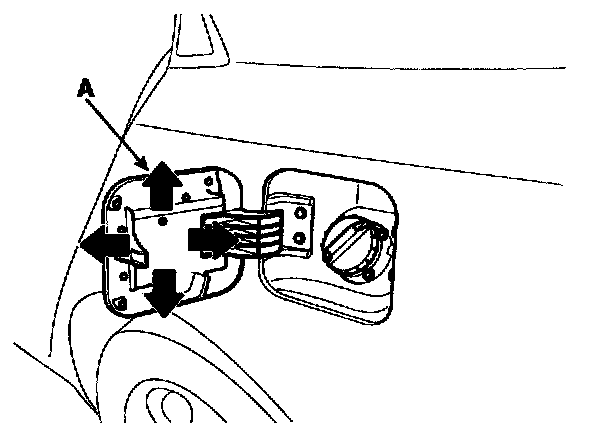

3. Check that the fuel fill door (A) fit flush against the body. If necessary, adjust it.
