Ultrasonic Sensor: Service and Repair

ULTRASONIC SENSOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the rear bumper.

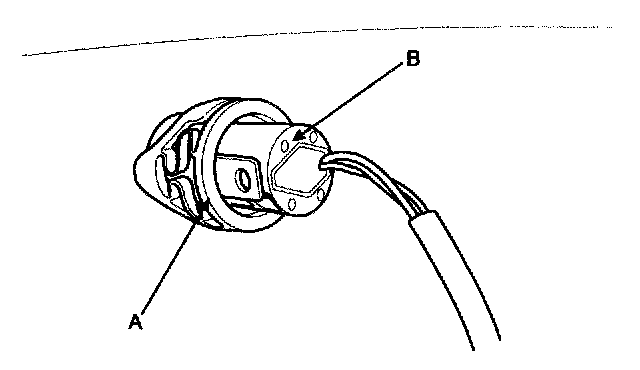

3. Disconnect the sensor connector at the inside of the rear bumper, and then remove the sensor (B) from the housing (A).
4. Installation is the reverse of removal procedure.
