Door Sensor/Switch (For Alarm): Testing and Inspection

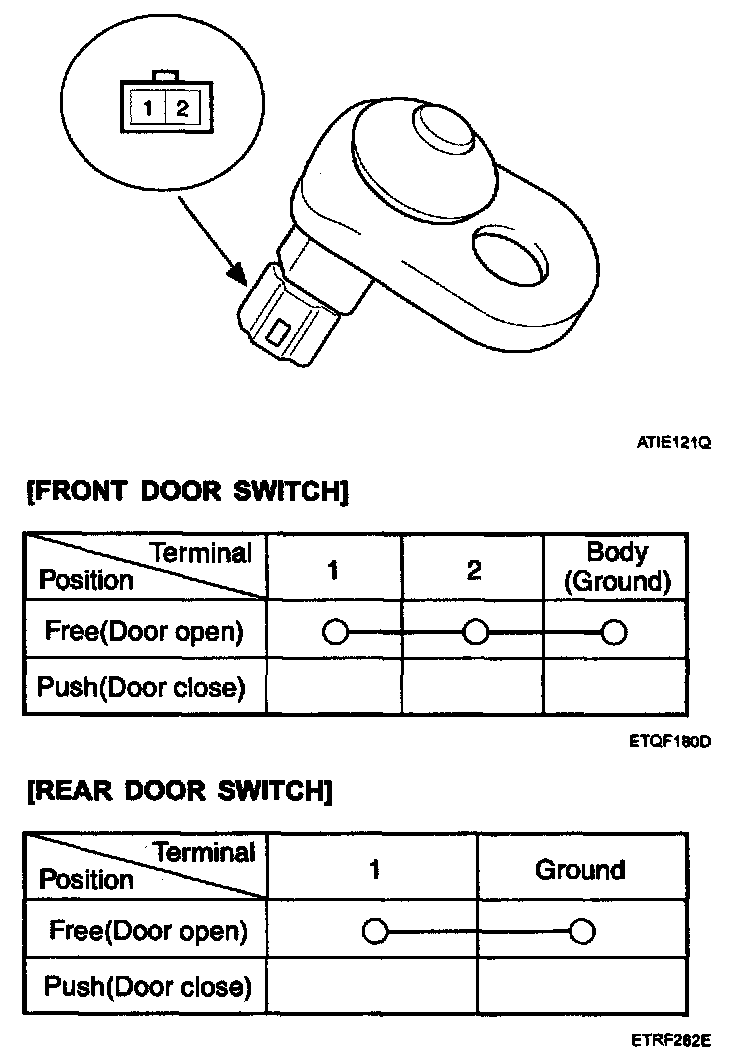

DOOR SWITCH
INSPECTION
Remove the door switch and check for continuity between the terminals.
