DTC P0159 HO2S CIRCUIT SLOW RESPONSE (BANK 2 / SENSOR 2)Component Location:
GENERAL DESCRIPTION
The rear heated oxygen sensor is mounted on the rear side of the Catalytic Converter (warm-up catalytic converter) or in the rear exhaust pipe, which is able to detect catalyst efficiency. The rear heated oxygen sensor (HO2S) produces a voltage between 0 V and 1 V. This rear heated oxygen sensor is used to estimate the oxygen storage capability. If a catalyst has good conversion properties, the oxygen fluctuations are smoothed by the oxygen storage capacity of the catalyst. If the conversion provided by the catalyst is low due to aging, poisoning or misfiring, then the oxygen fluctuations are similar to signals from the front oxygen sensor.
DTC DESCRIPTION
Checking output signals from HO2S under detecting condition, if the HO2S's response time is too long, PCM sets P0159. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

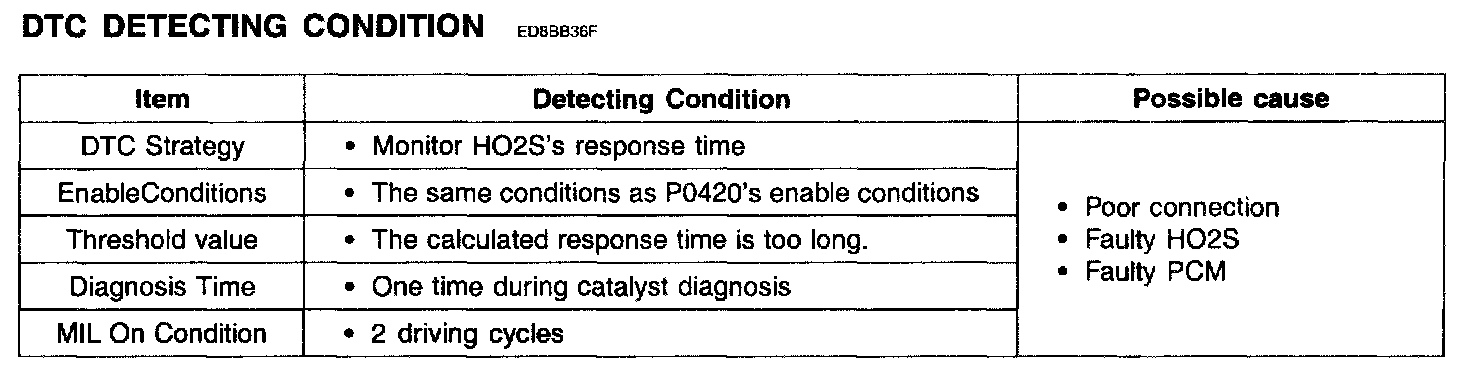

DTC Detecting Condition:
Signal Waveform And Data:

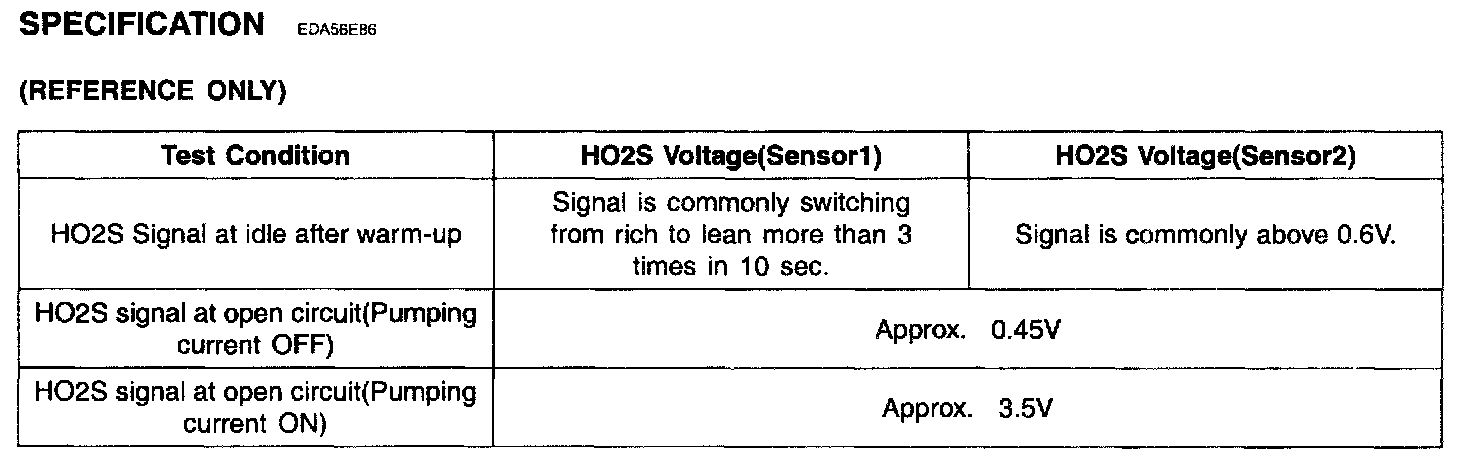

After warming-up, if accelerator pedal is released suddenly around 4000 rpm, the HO2S signal reading will be lower than 200 mV resulting from Fuel cut-off for the moment. Conversely, if suddenly accelerator pedal is depressed, HO2S signal reading will be around 0.6 V - 1.0 V. At idle, Normally HO2S signal will switch from lean to rich with 3 Hz. And as racing, Its frequency rises.
MONITOR DTC STATUS
1. Check DTC Status
1. Connect scantool to Data Link Connector (DLC).
2. IG "ON"
3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F4 (DTAL) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.
5. Is parameter displayed "Present fault"?
YES - Go to "Terminal and connector inspection" procedure.
NO - Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
COMPONENT INSPECTION
1. Replace the HO2S
2. Clear DTC with scantool.
3. Start the engine and warm it up until the radiator fan comes on ( more than at least 10 minutes).
4. Drive at a steady speed between 45 - 55 mph (72 - 88 km/h) for 30 seconds.
5. Stop and then maintain idle state for 30 seconds in D-position.
6. Check if O2 sensor monitoring readiness is complete.
7. Does the scan tool show DTC P0139?
YES
- Substitute with a known - good PCM and check for proper operation.
- If the problem is corrected, go to "Verification of Vehicle Repair" procedure.
NO - Troubleshooting is finished.
NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
VERIFICATION OF VEHICLE REPAIR
After a repair, it is essential to verify that the fault has been corrected.
1. Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code (DTC) which has been diagnosed.
2. Using a Scantool, Clear the DTCs
3. Operate the vehicle within conditions noted in the freeze frame data or enable conditions
4. Monitor that all readiness test have been verified as "Complete"
5. Are any DTCs present?
YES - Go to the applicable troubleshooting procedure.
NO - System is performing to specification at this time.
