Clutch: Description and Operation

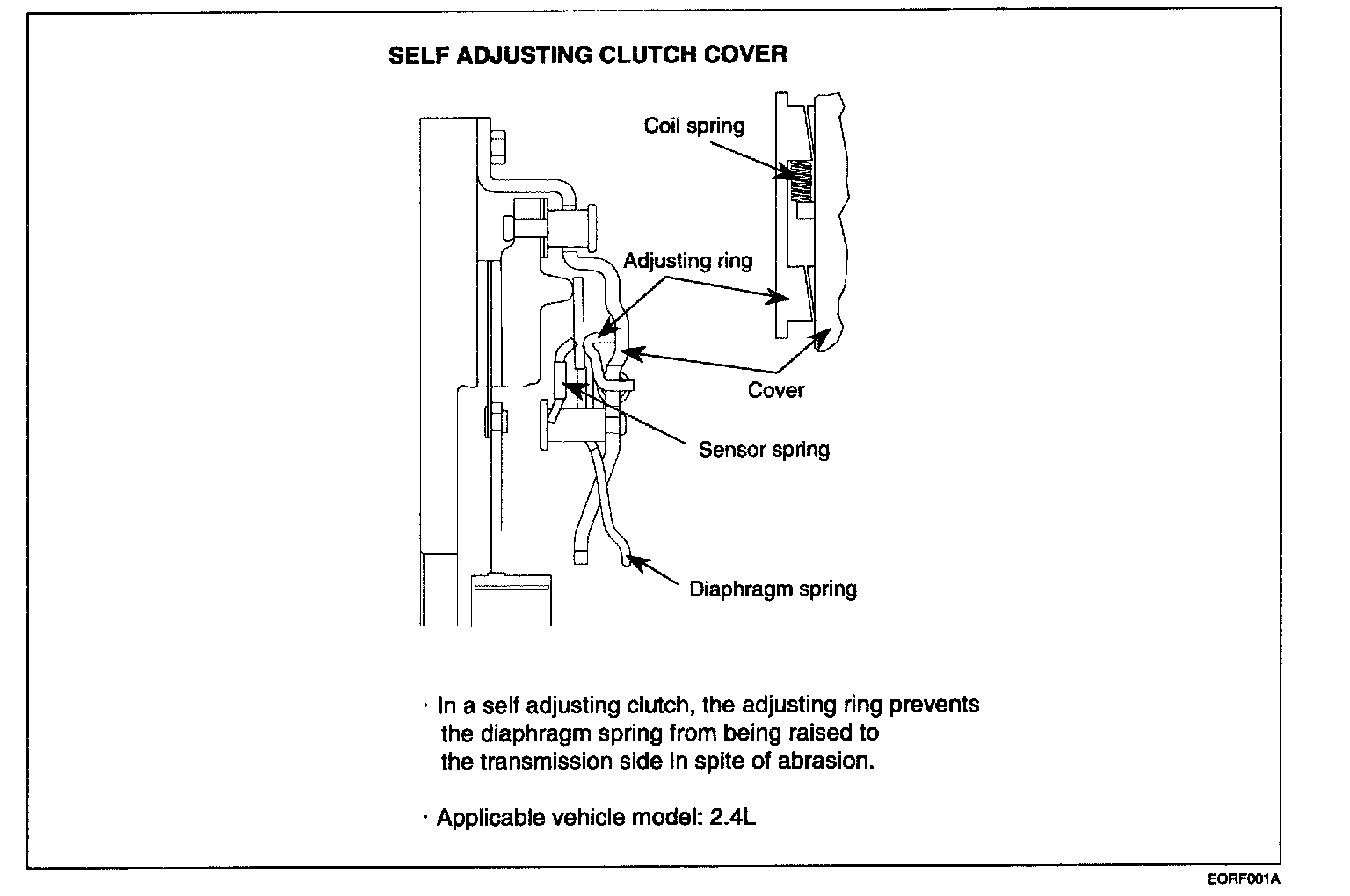

DESCRIPTIONSELF ADJUSTING CLUTCH (S.A.C.) COVER
^ A self-adjusting clutch cover is used to increase durability, a cover weight is increasing and a clutch pedal pressure can be more needed.
^ To make up for this defect, the self adjusting clutch system makes the requested pedal pressure minimized so that makes the maintenance cycle longer.
^ Applied only in 2AL gasoline engine vehicles.
CONCENTRIC SLAVE CYLINDER-C.S.C.
It improves working efficiency and lowers the number and the weight of part by unifying clutch release control parts (clutch release bearing - clutch release cylinder) in a manual transaxle.
OPERATION
CONCENTRIC SLAVE CYLINDER-C.S.C

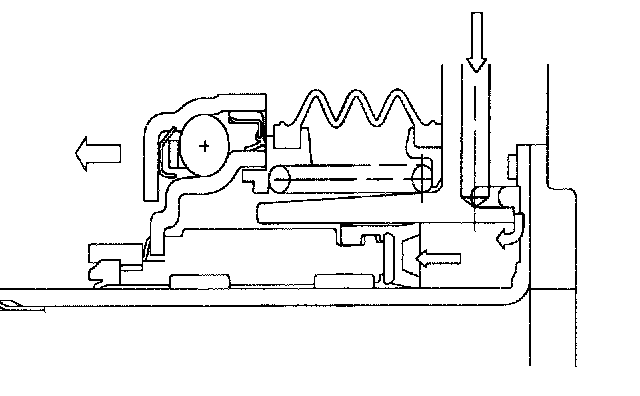

When the clutch pedal is pressed, oil pressure is, transmitted along the arrow directions shown and that moves the clutch slave cylinder and the diaphragm spring of the clutch cover.
