Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL

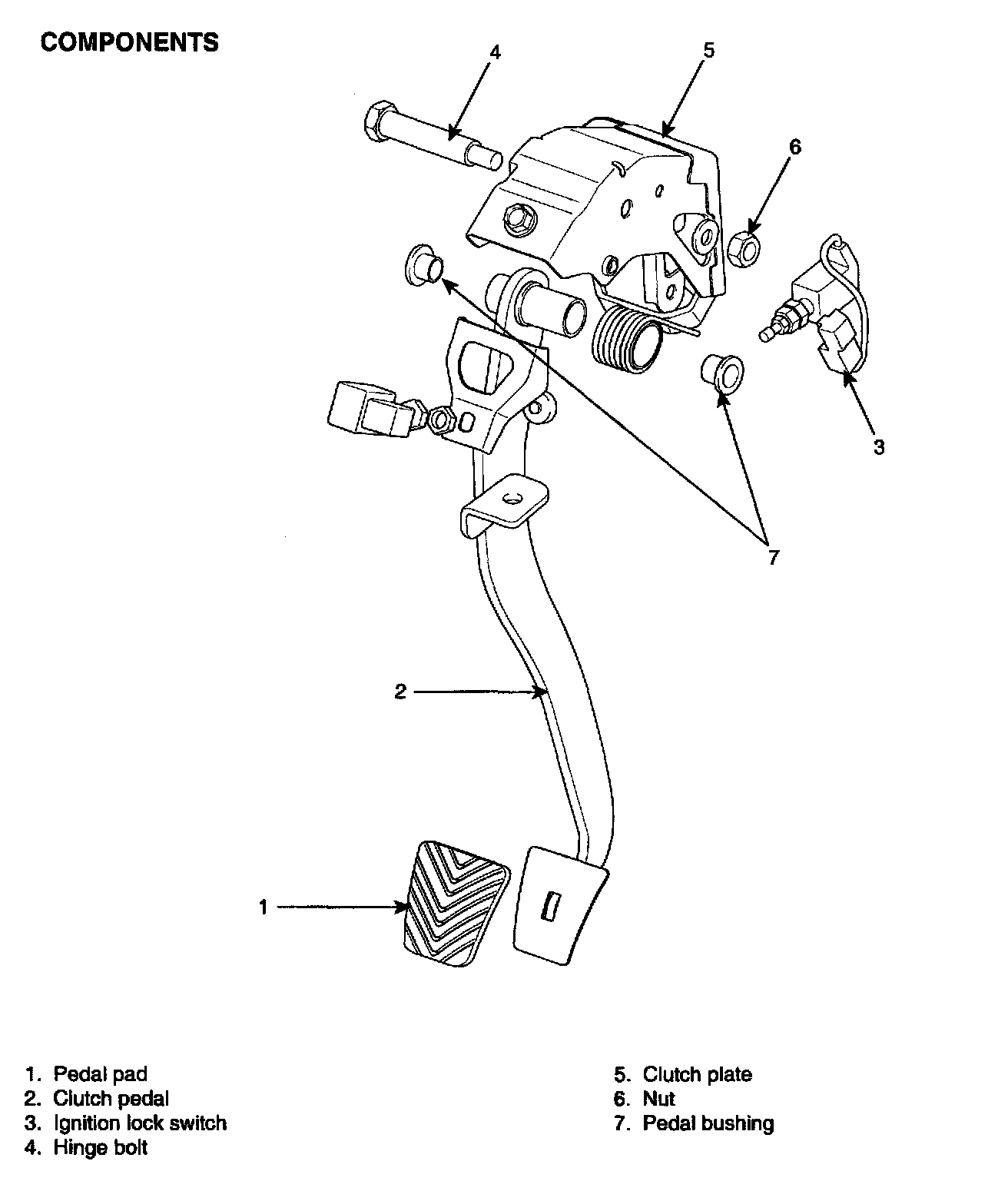

COMPONENTS:

REPLACEMENT
1. Disconnect the connector of the ignition lock switch.

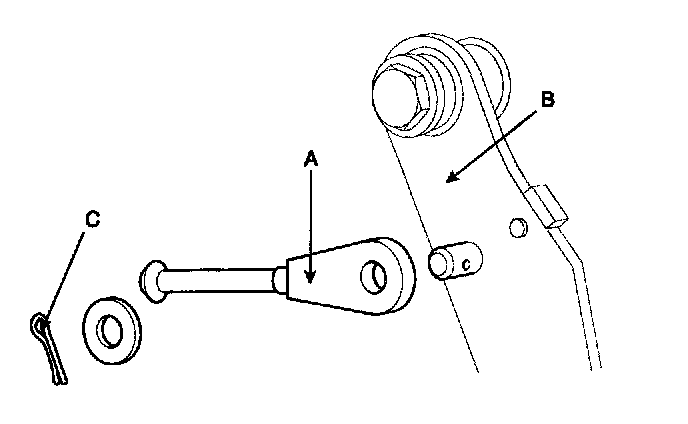

2. Remove the split pin (C) connecting the mater cylinder's push rod (A) and the clutch pedal's arm (B).
3. Remove the clutch pedal mounting bolts.
4. Remove the clutch pedal.
5. Install a new clutch pedal.
6. Install the clutch pedal mounting bolt and nut.
TORQUE: 24.5 - 34.3 Nm (250 - 350 kgf.cm, 18.1 - 25.3 ft. lbs.)
7. Grease the clutch pedal mounting bolt and bushing of the turn-over spring.
8. Connect the connector of the ignition lock switch.
9. Adjust the clutch pedal and the ignition lock switch.
