Clutch System Adjustment

ADJUSTMENT

NOTE:
^ Check for the ignition lock switch. In case of clutch lock system vehicle, there is an additional switch.
^ Before adjusting, remove the driver's floor mat.

1. After loosening the ignition lock switch nut, move it back until it has no contact with the clutch pedal arm. (In case of clutch lock system vehicle, repeat this step with its additional ignition lock switch).

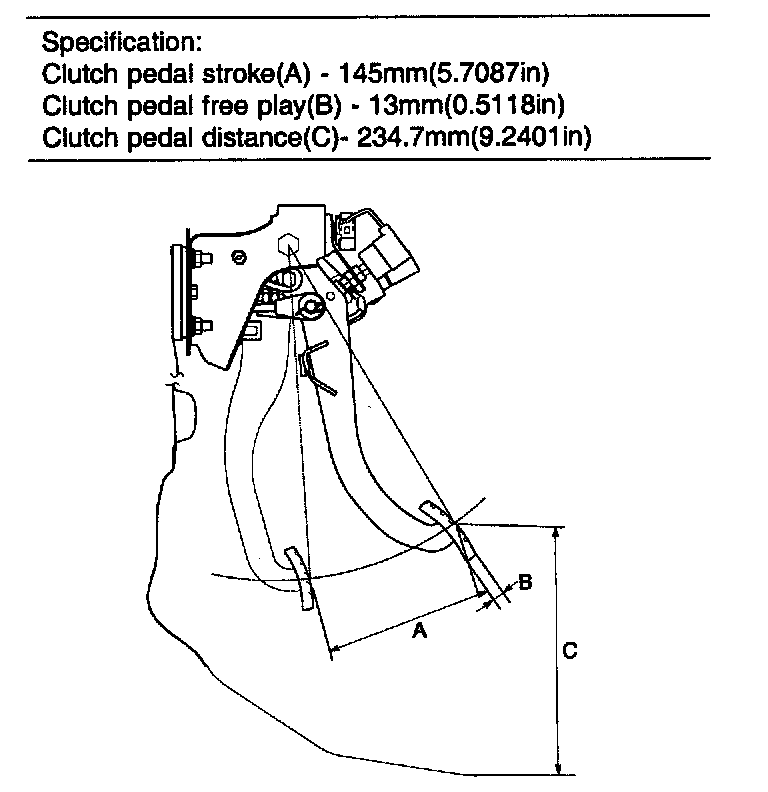

2. Check for the specification.
3. (Clutch lock system vehicle) Fix the additional ignition lock switch when its signal is ON pressing the pedal slowly 112 - 118 mm (4.4 - 4.6 inch). Tighten the retaining nut to specification.
TORQUE: 8 - 10 Nm (0.8 - 1.0 kgf.m, 5.9 - 7.4 ft. lbs.)
