Front Suspension

FRONT STRUT ASSEMBLY

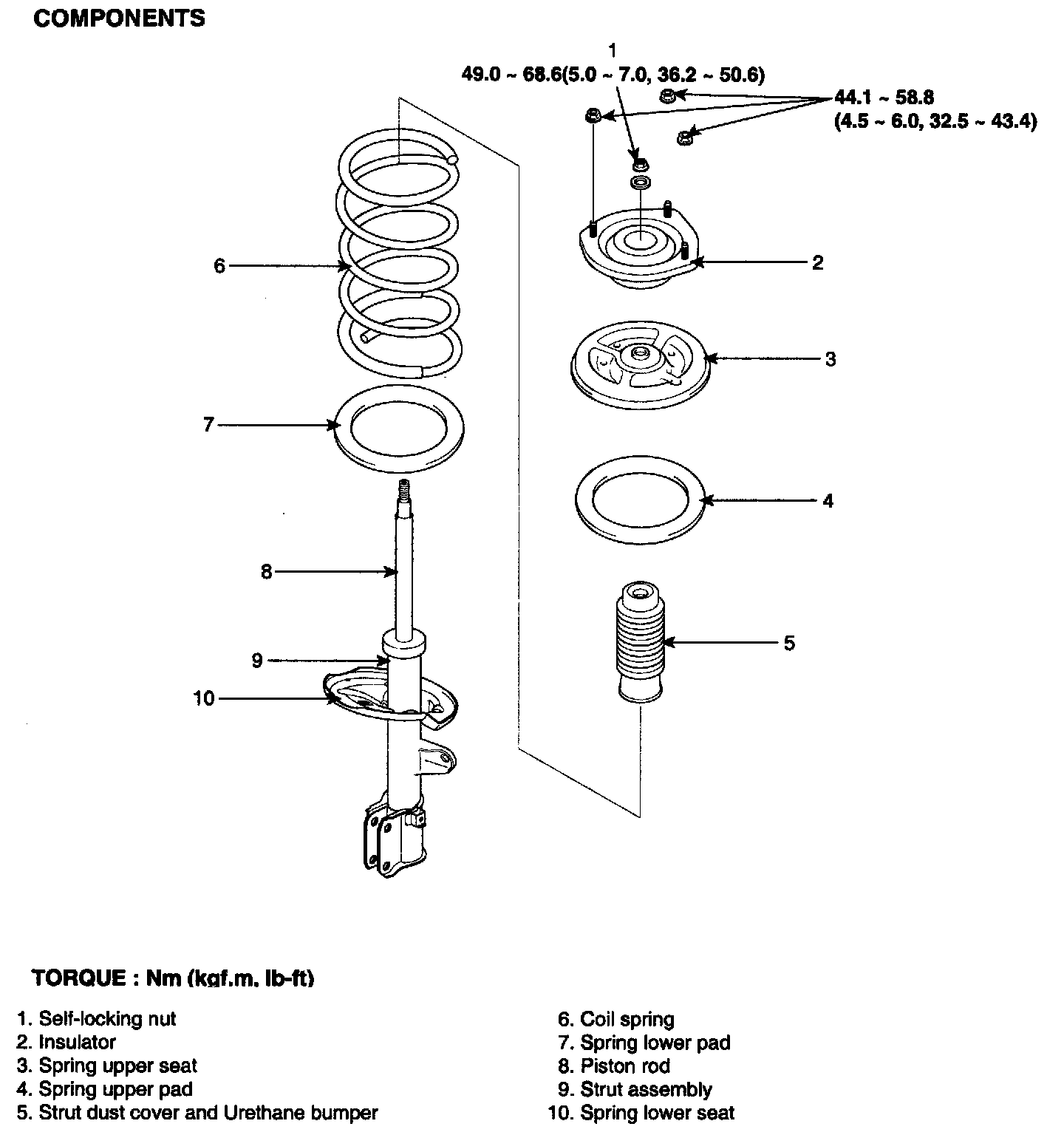

COMPONENTS:





REMOVAL
1. Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.





2. Remove the front wheel and tire (A) from front hub (B).

CAUTION: Be careful not to damage to the hub bolts (C) when removing the front wheel and tire (A).

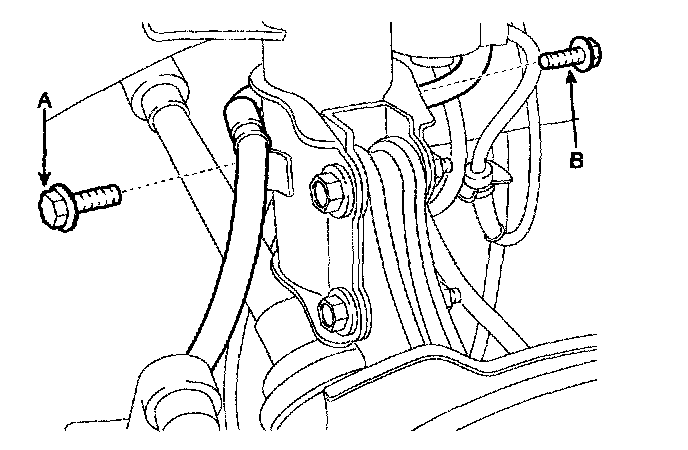

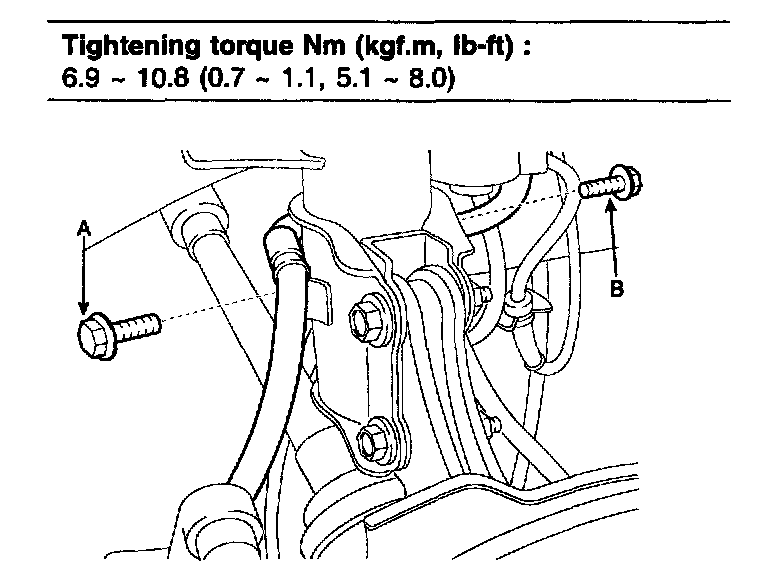

3. Remove the brake hose bracket bolt (A, B) from the front strut assembly.

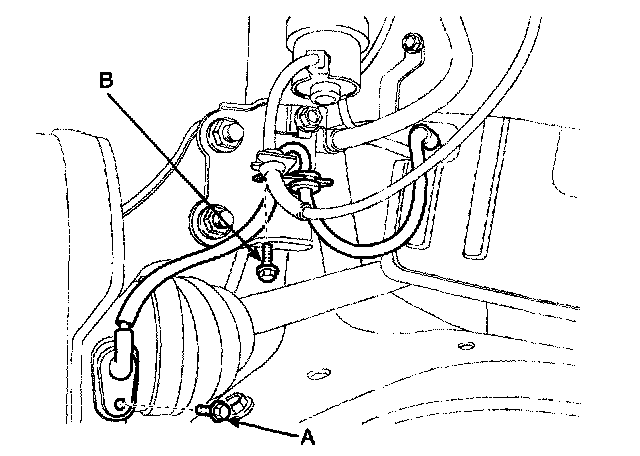

4. Remove the speed sensor (A) and wire (B) bolts from the front knuckle.

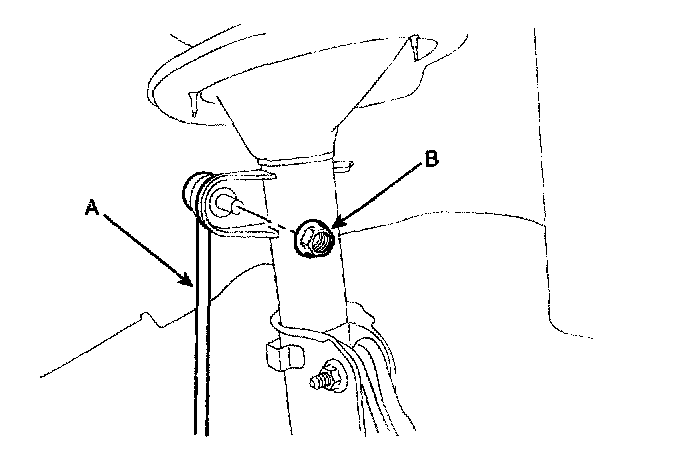

5. Remove the front stabilizer link (A) nut (B) from the strut assembly.

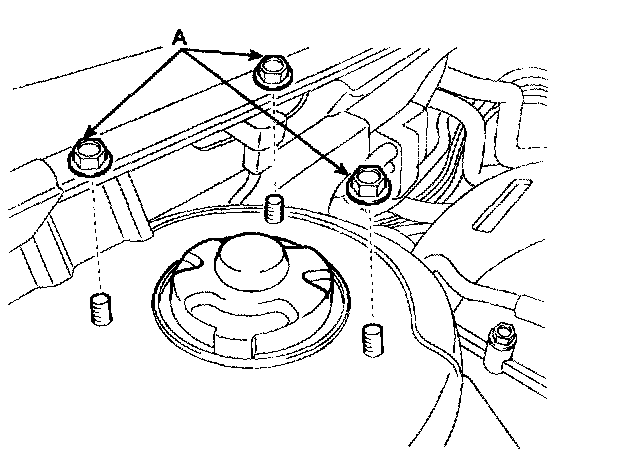

6. Remove the strut upper mounting nuts (A).

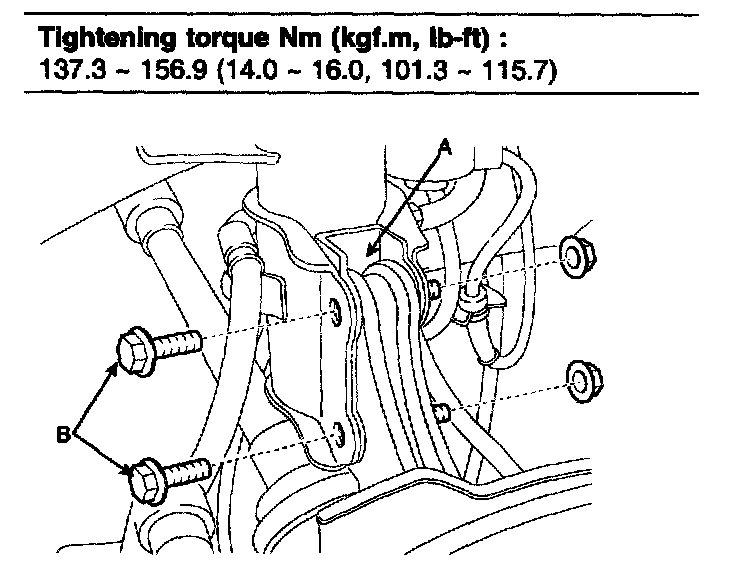

7. Remove the front strut assembly (A) bolts (B) from the front knuckle.

DISASSEMBLY

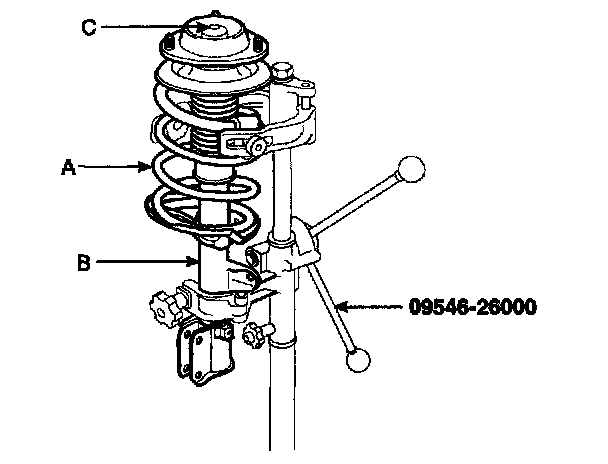

1. Using the special tool (09546-26000), compress the coil spring (A).
2. Remove the self-locking nut (C) from the strut assembly (B).
3. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.

INSPECTION
1. Check the strut insulator for wear or damage.
2. Check rubber parts for damage or deterioration.





3. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

DISPOSAL
1. Fully extend the piston rod.

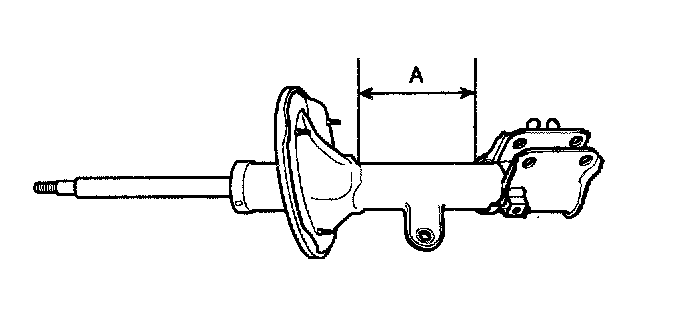

2. Drill a hole on the A section to remove gas from the cylinder.

CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling. Be sure to wear safety goggles or eye protection when performing this task.

REASSEMBLY

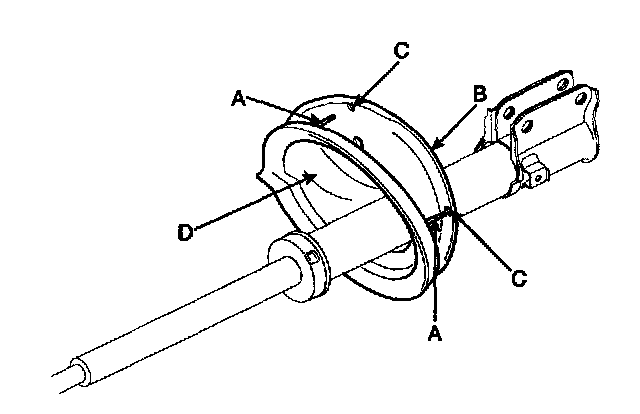

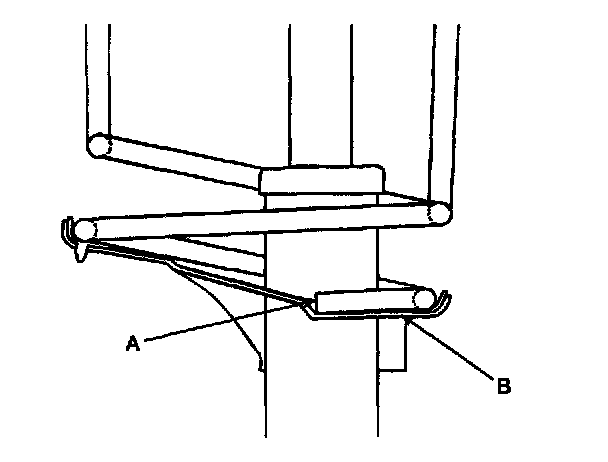

1. Install the spring lower pad (D) so that the protrusions (A) fit in the holes (C) in the spring lower seat (B).
2. Compress coil spring using special tool (09546-26000). Install compressed coil spring into shock absorber.

NOTE:
a. Indicated identification color mark on the coil spring. Pay attention to identification mark and then install them.
b. Install the coil spring with the identification mark directed toward the knuckle.

3. After fully extending the piston rod, install the spring upper seat and insulator assembly.





4. After seating the upper and lower ends of the coil spring (A) in the upper and lower spring seat grooves (B) correctly, tighten new self-locking nut temporarily.
5. Remove the special tool (09546-26000).
6. Tighten the self-locking nut to the specified torque.
Tightening torque: 49.0 - 68.6 Nm (5.0 - 7.0 kgf.m, 36.2 - 50.6 ft. lbs.)

INSTALLATION





1. Install the strut upper mounting nuts (A).

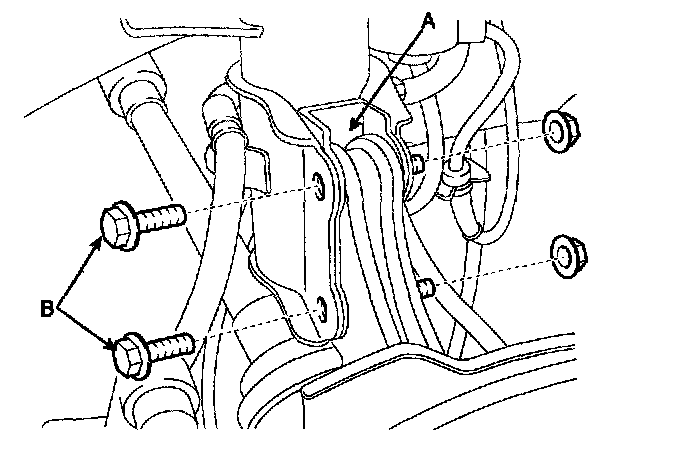

2. Install the front strut assembly (A) bolts (B) to the front knuckle.

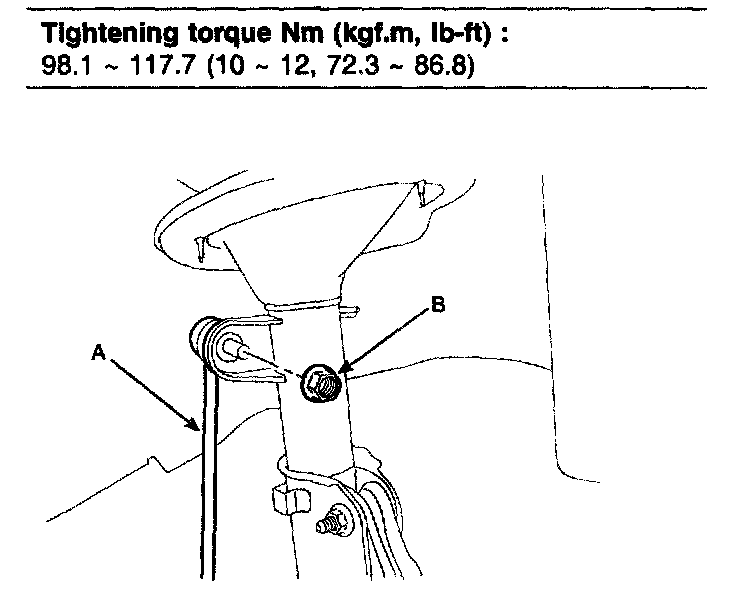

3. Install the front stabilizer link (A) nut (B) to the strut assembly.

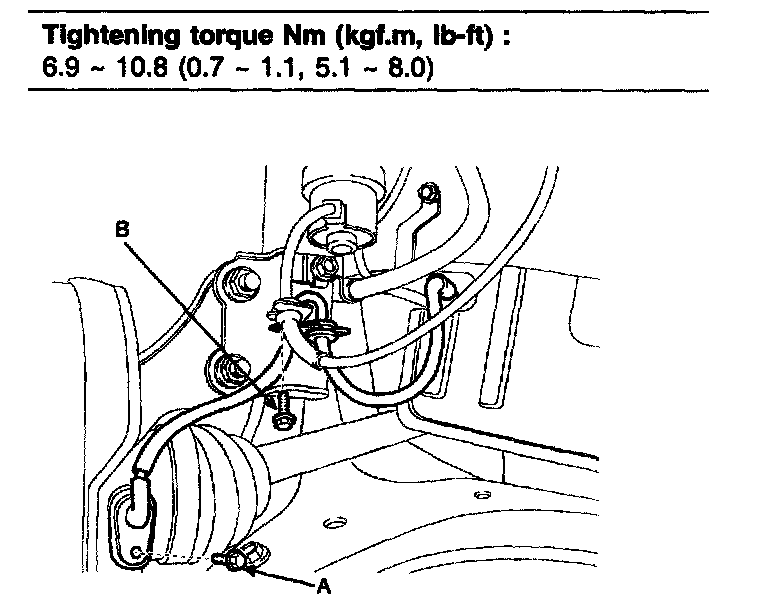

4. Install the speed sensor (A) and wire (B) bolts.





5. Install the brake hose bracket bolt (A, B) to the axle assembly.

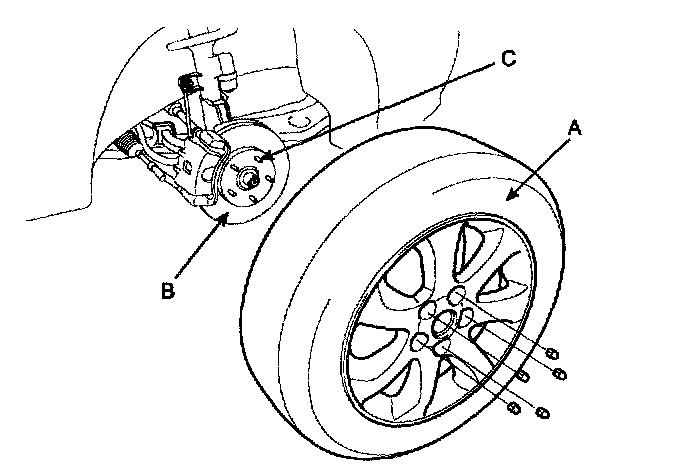

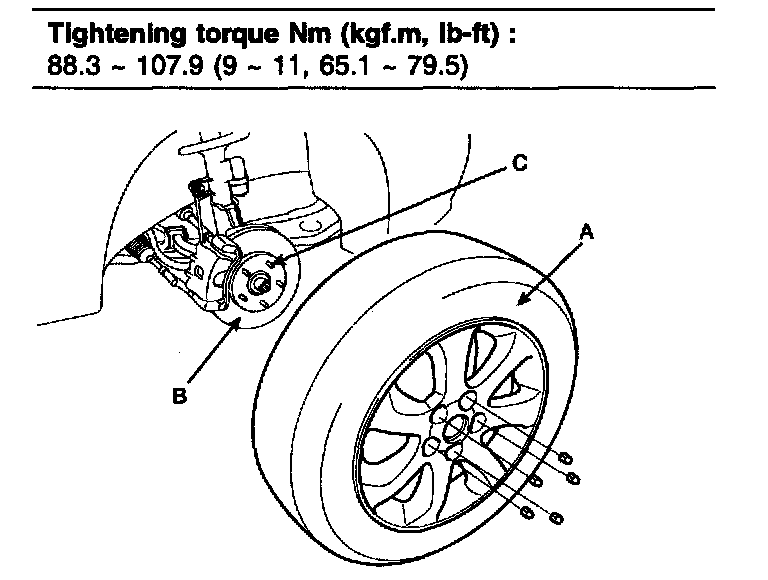

6. Install the wheel and the tire (A) to the front hub (B).

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
