Upper Arm

REAR UPPER ARM

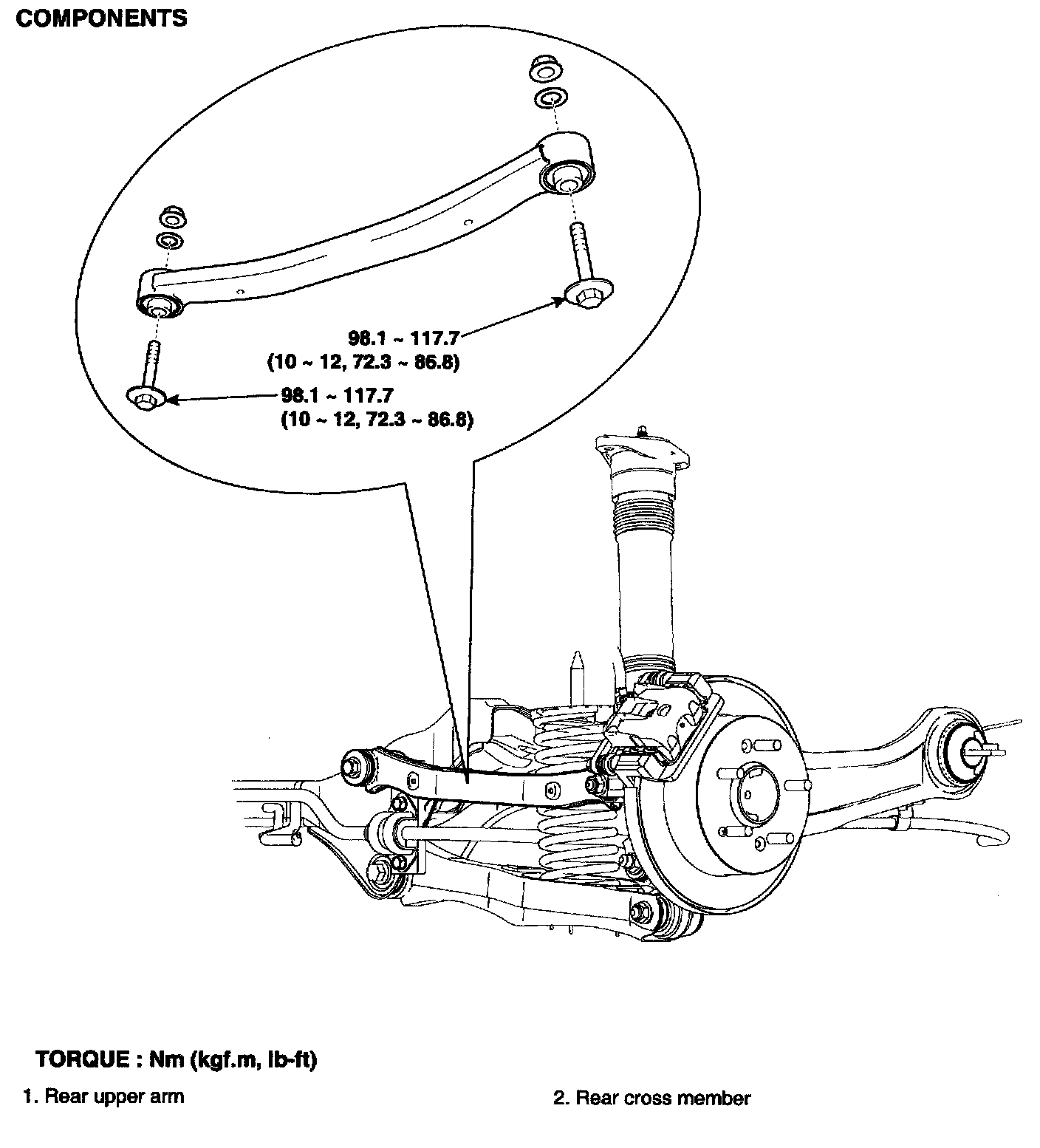

COMPONENTS:

REMOVAL
1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

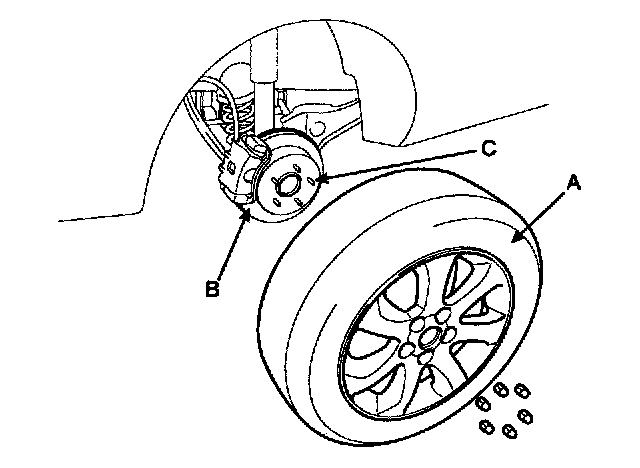

2. Remove the rear wheel and tire (A) from rear hub (B).

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).

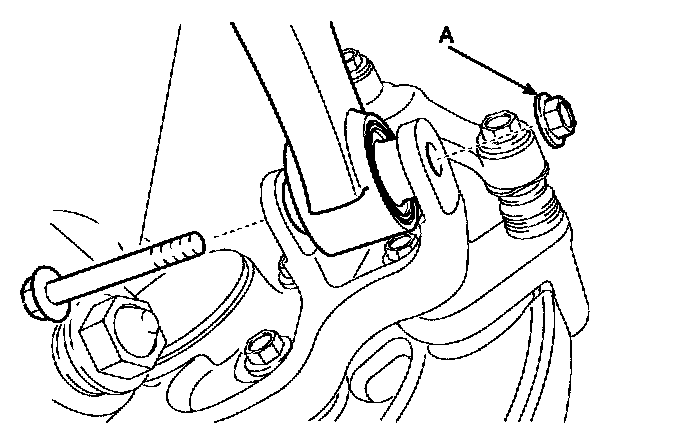

3. Remove the rear upper arm bolt and nut (A) from the knuckle.

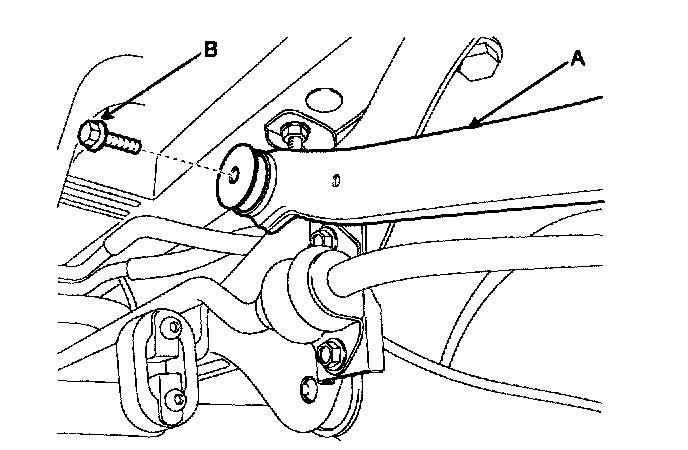

4. Remove the rear upper arm (A) bolt (B) from the cross member.

INSTALLATION

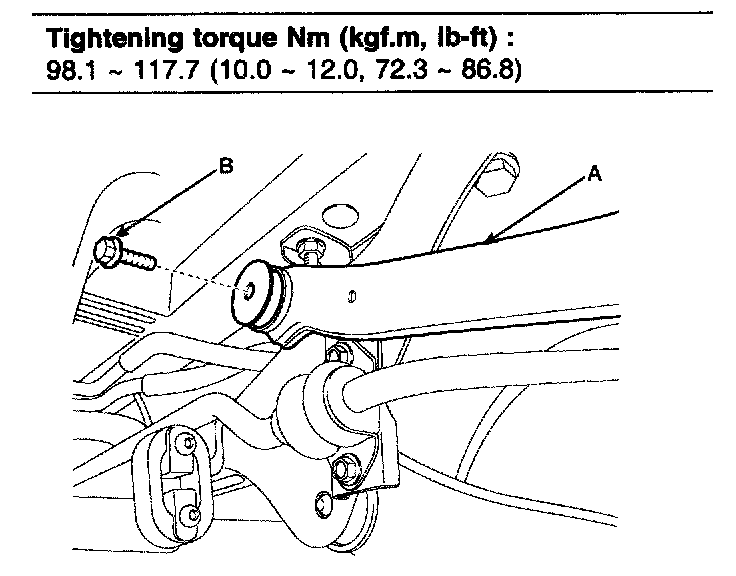

1. Install the rear upper arm (A) mounting bolt (B) to the crossmember.

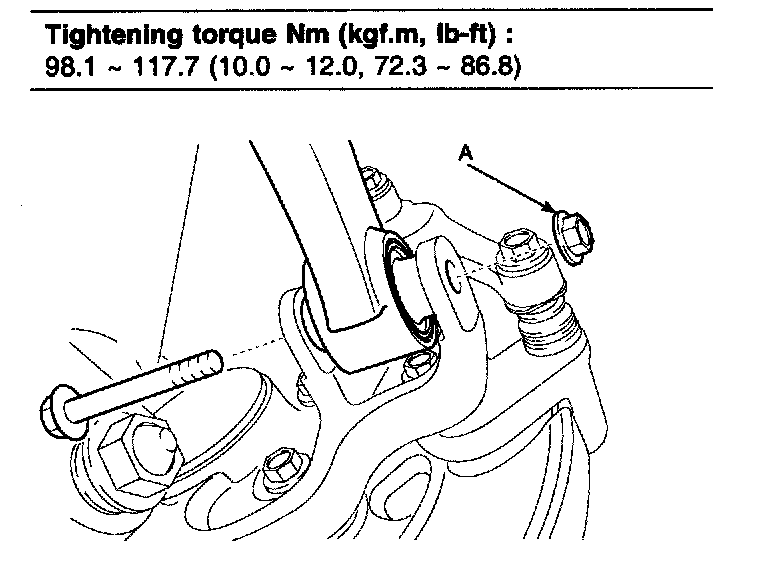

2. Install the rear upper arm mounting nut (A) to the knuckle.





3. Install the wheel and the tire (A) to the rear hub (B).

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
