Wheel Stud / Lug Nut

Wheel Fastener
Tightening torque Nm (kgf.m, ft. lbs.) 88.3 - 107.9 (9 - 11, 65.1 - 79.5)

CAUTION: When using an impact gun, final tightening torque should be checked using a torque wrench.

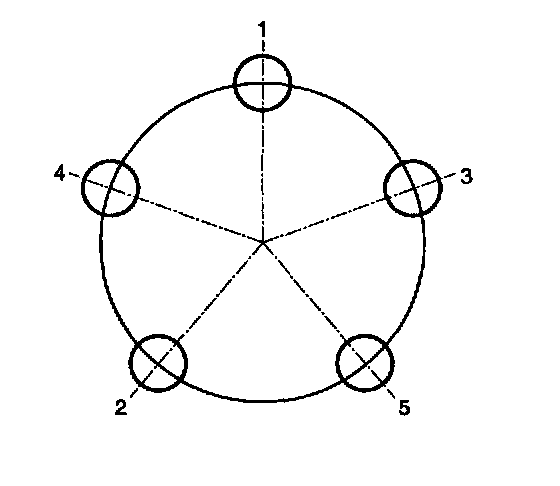

Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
