Home >> Kia >> 2006 >> Optima L4-2.4L VIN 3 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Tightening Torque

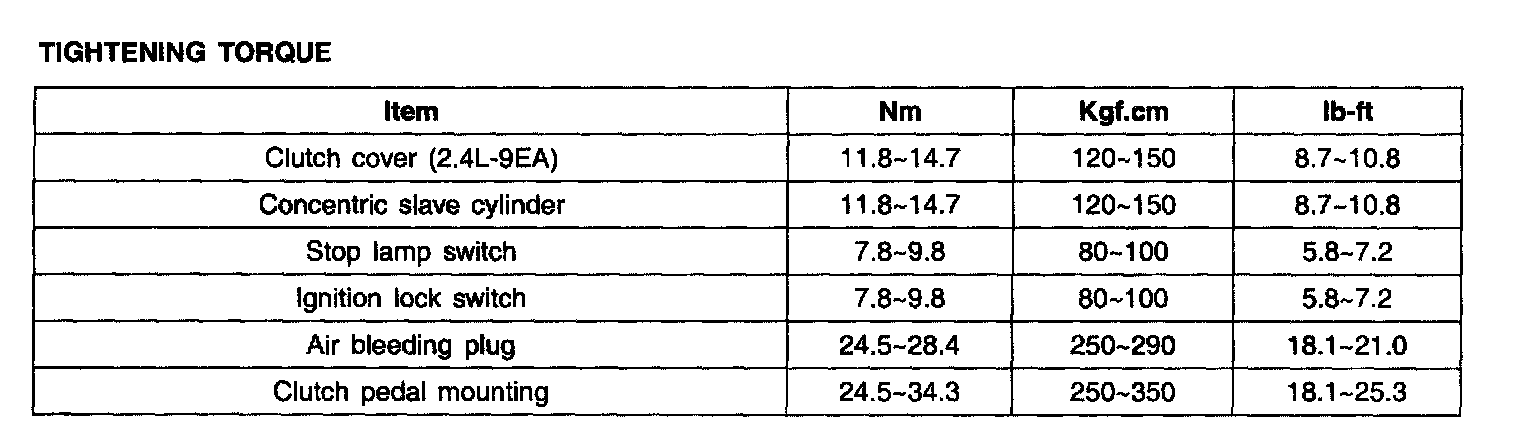

Tightening Torque





Tightening Torque

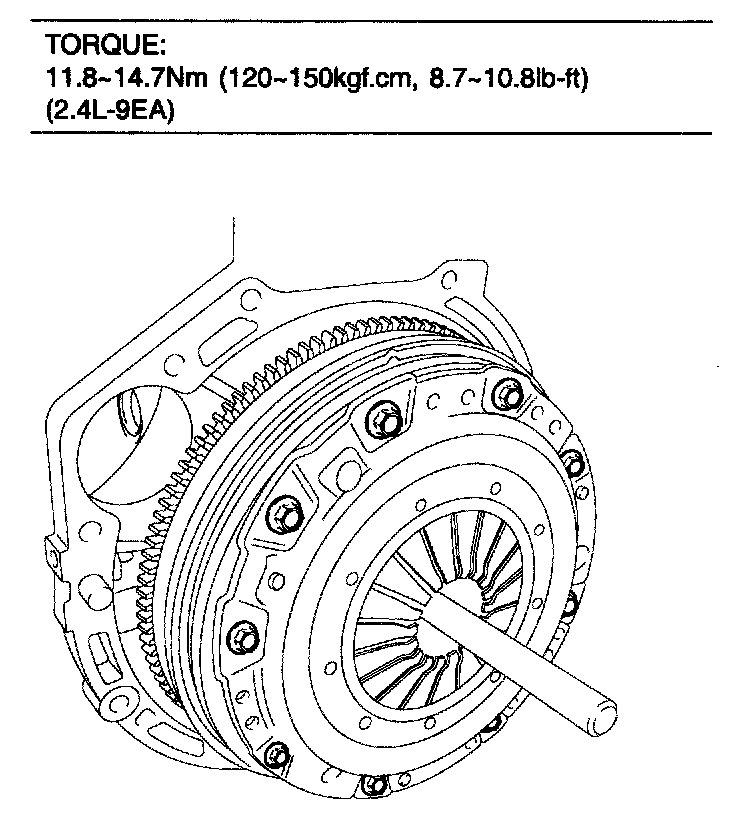

Tighten the clutch cover.

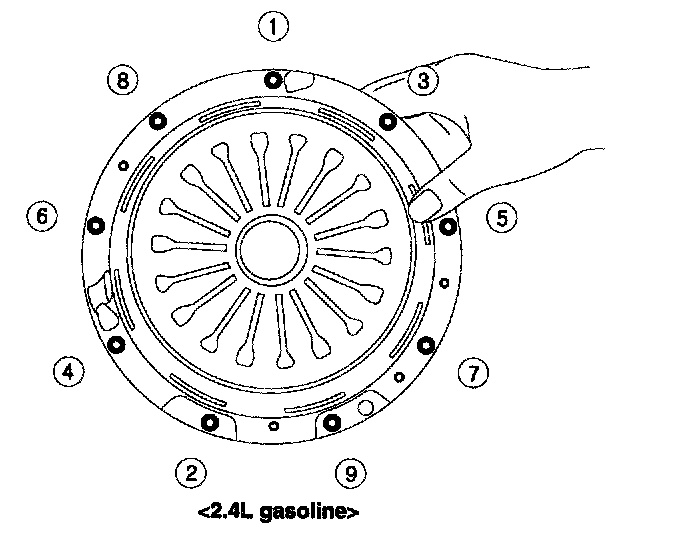

CAUTION: Tighten the bolts in the specified pattern.
