Rear Hub/Carrier

REAR AXLE

REAR HUB / CARRIER

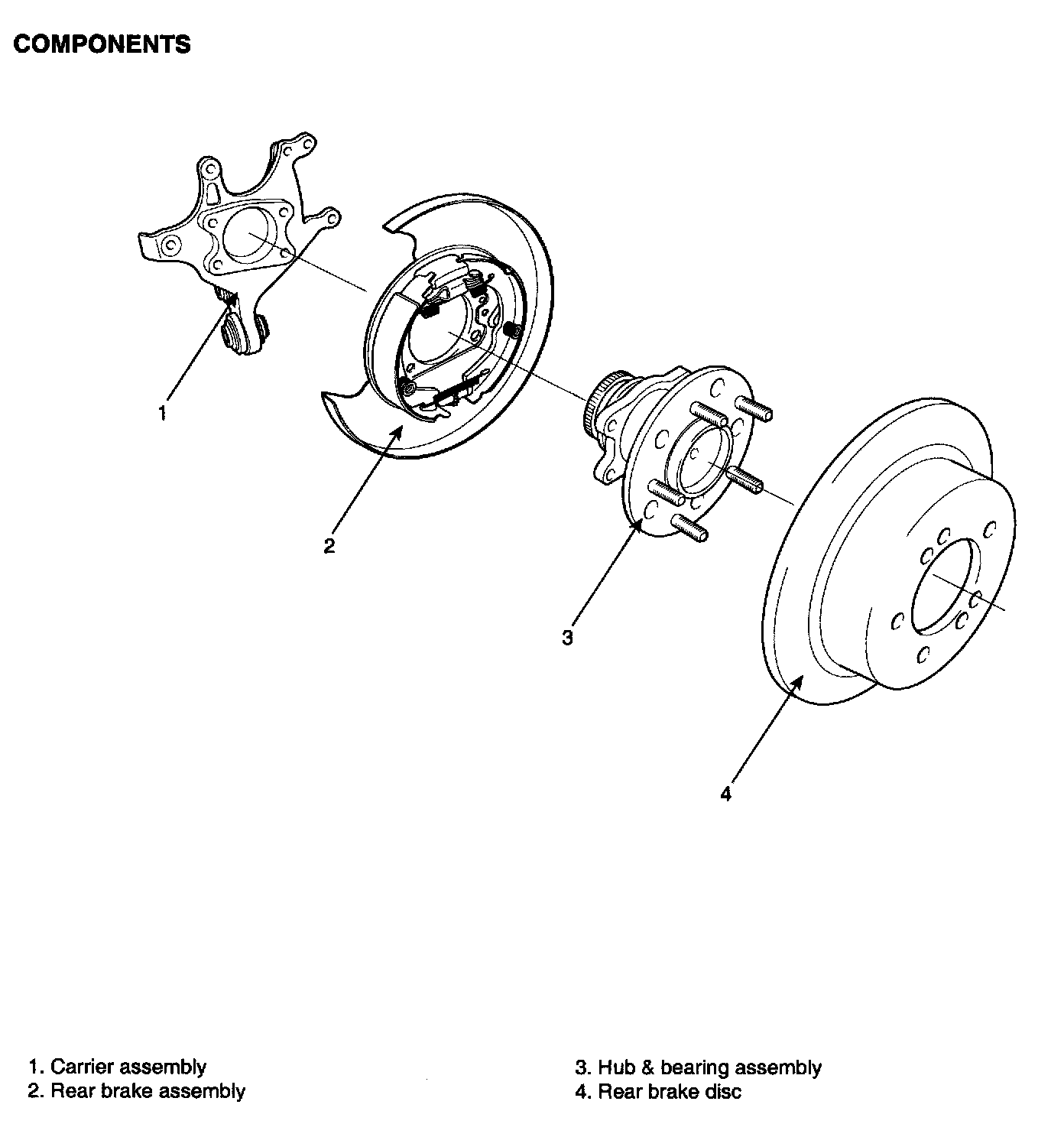

COMPONENTS:

REMOVAL
1. Release the parking brake.

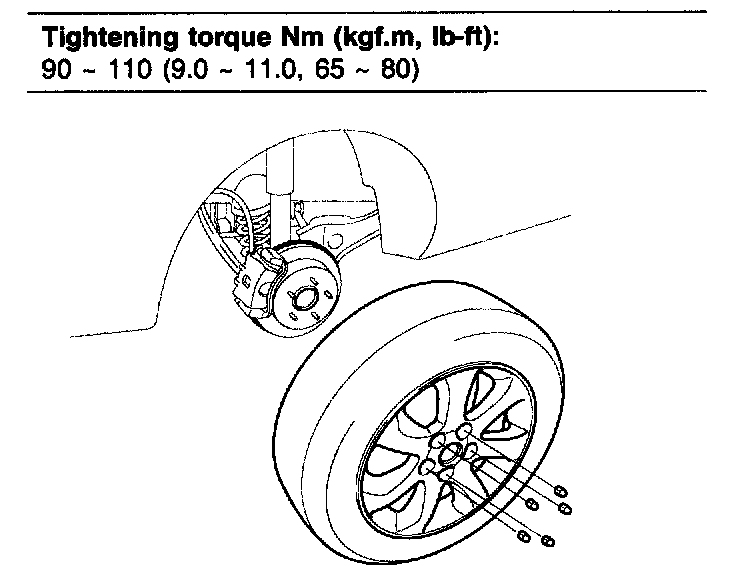

2. Remove the rear wheel.

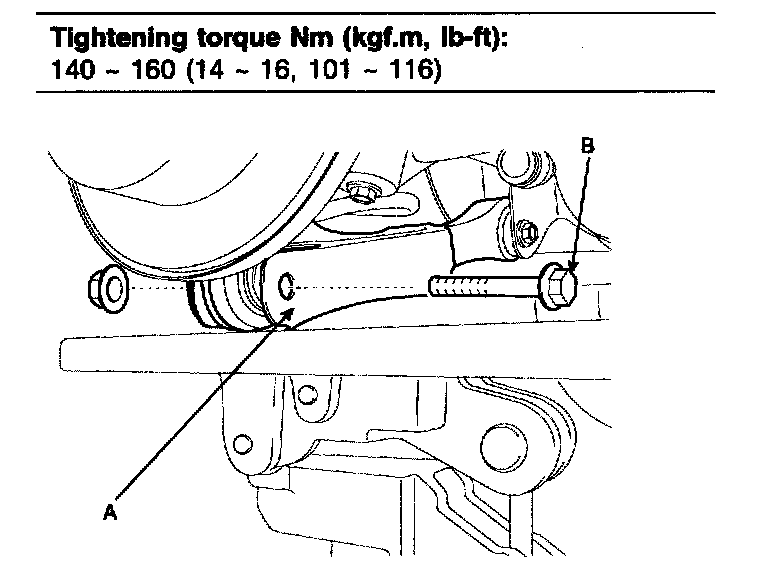

3. Support the lower part of the lower arm (A) by using a jack, then remove the bolt (B).

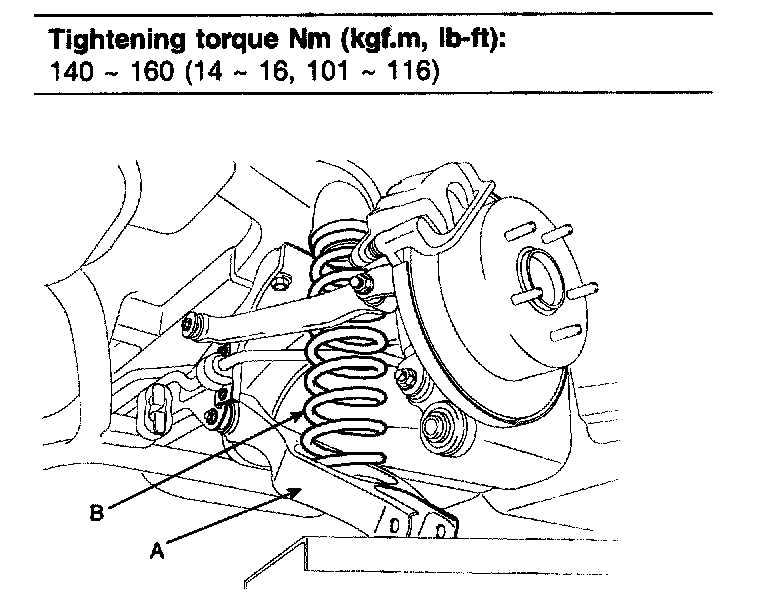

4. Temporarily loosen the lower arm (A) to cross member nut, then remove the coil spring (B) by taking down the jack.

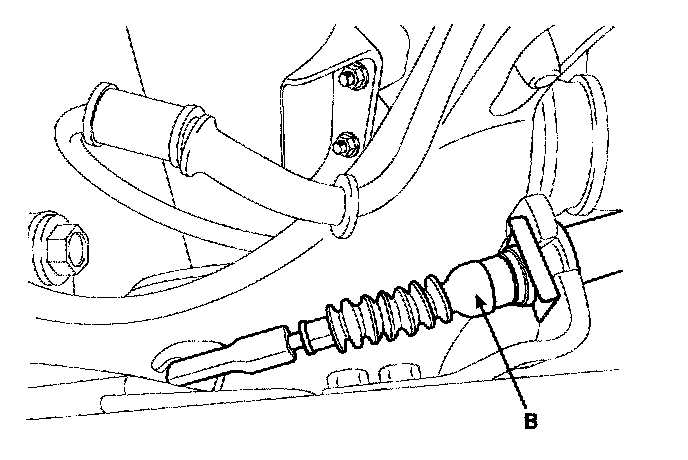

5. Remove the wheel speed sensor (A) and parking brake wire bracket (B).

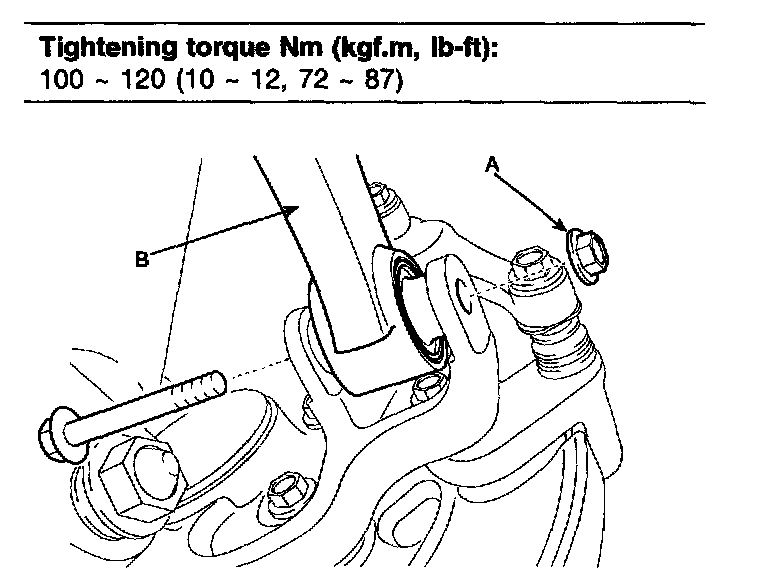

6. Disconnect the upper arm (B) from the carrier assembly after loosening the nut (A).

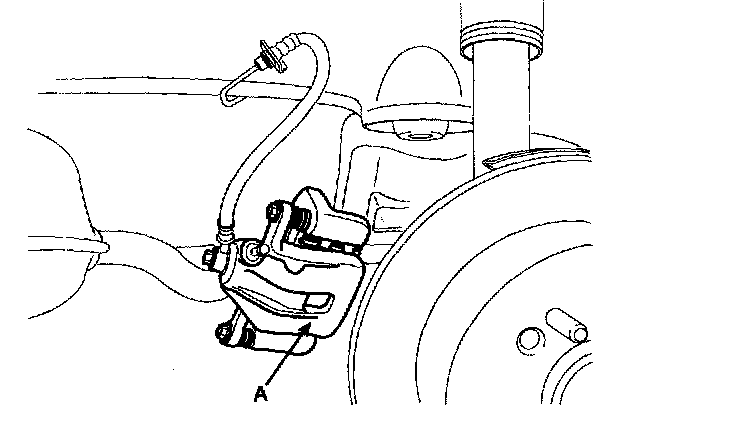

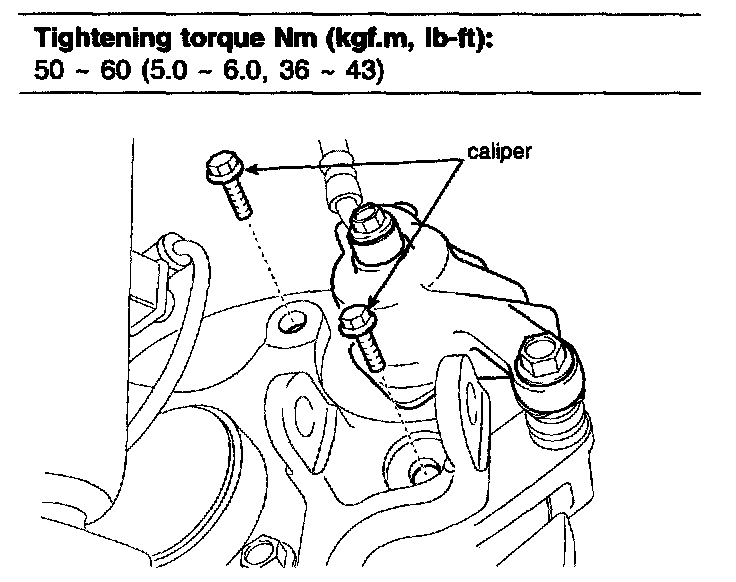

7. Remove the brake caliper assembly (A) from the carrier assembly and suspend it with wire.

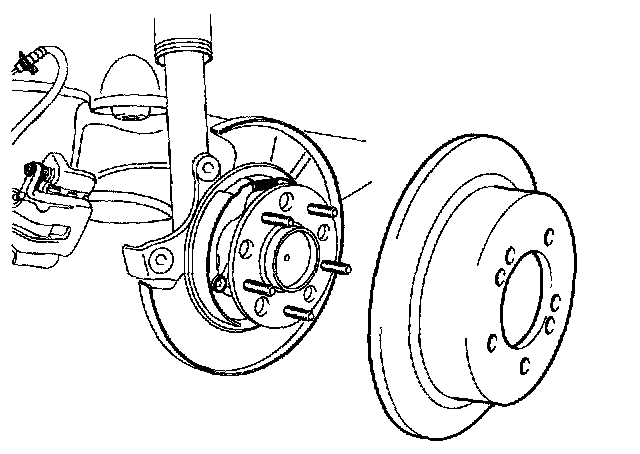

8. Loosen the screw and remove the rear brake disc assembly.

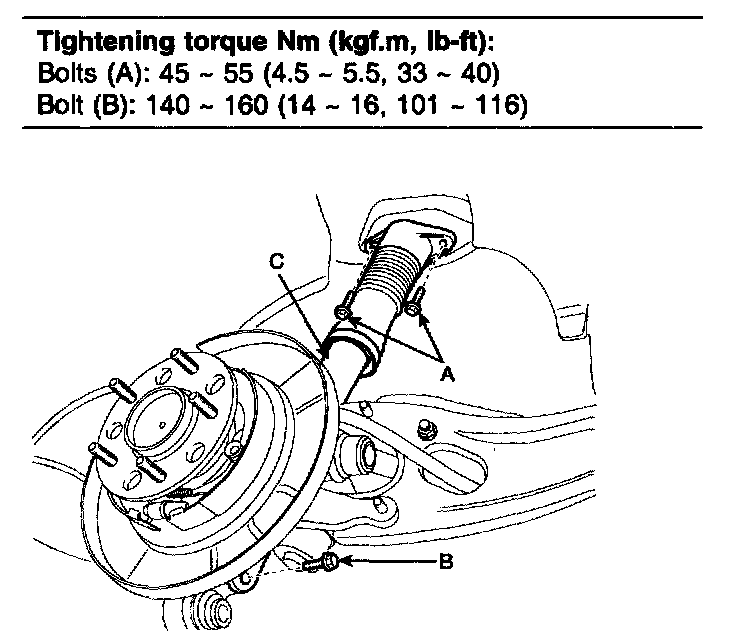

9. Loosen the bolt (A, B), then remove the rear strut assembly (C).

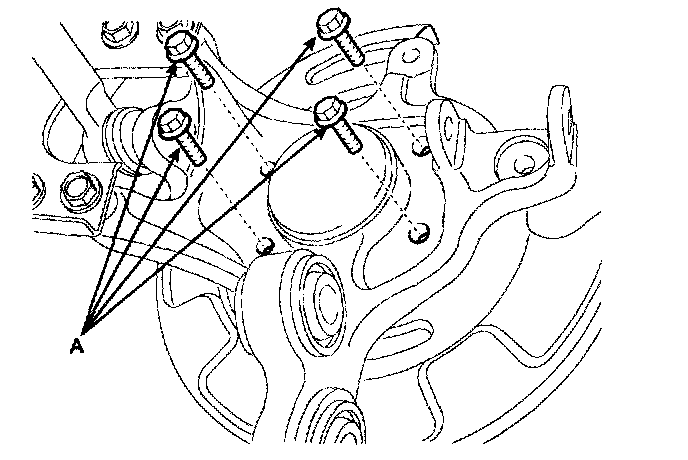

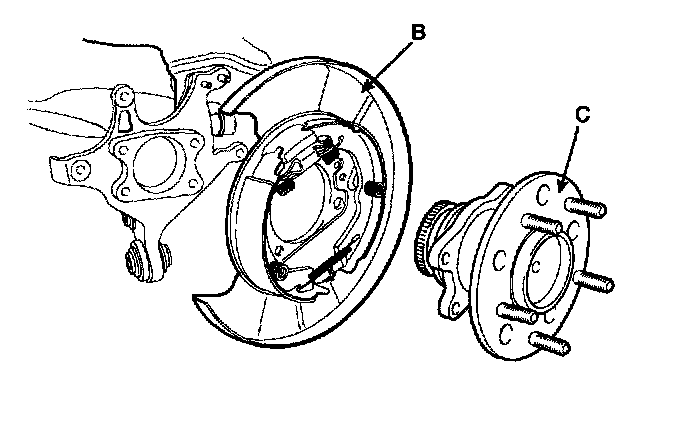

10. Loosen the bolts (A) and remove the rear hub & carrier assembly (B) and rear brake assembly (C).
11. Remove the split pin and castle nut from the assist arm.
Tightening torque Nm (kgf.m, ft. lbs.): 45 - 55 (4.5 - 5.5, 33 - 40)

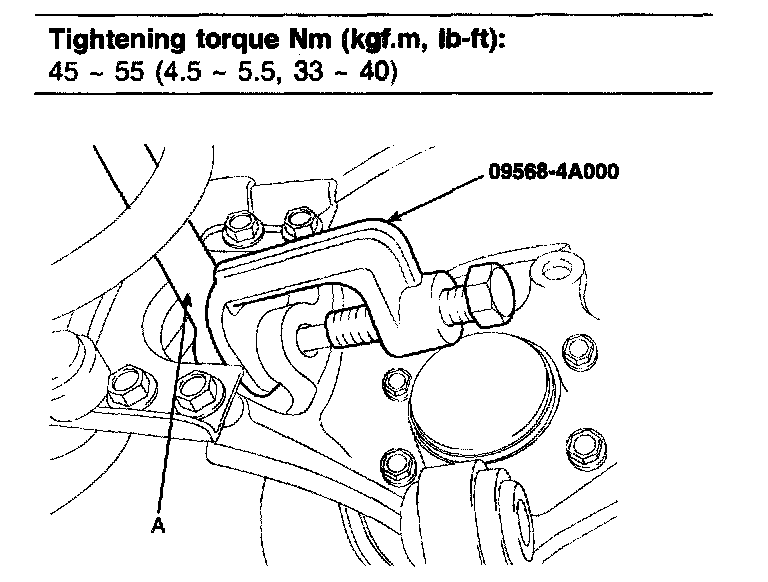

12. Using the SST (09568-4A000), disconnect the assist arm (A) from the carrier assembly.

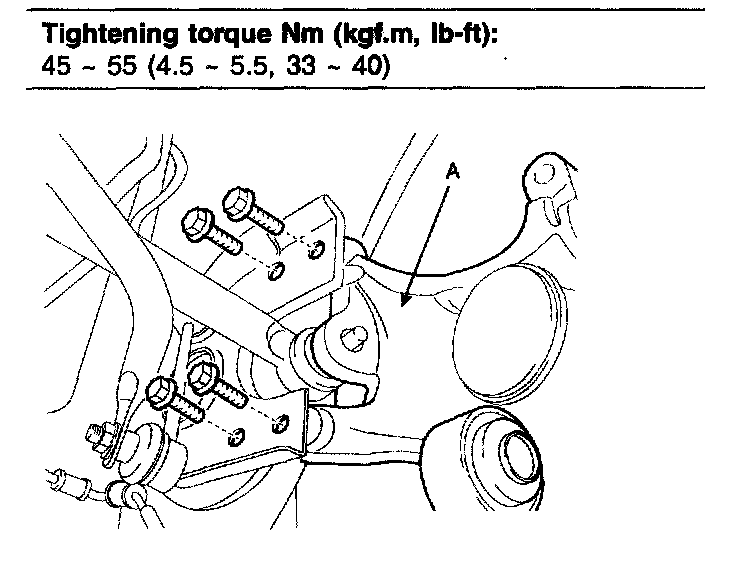

13. Remove the carrier assembly (A) from the trailing arm by loosening bolts.
Tightening torque Nm (kgf.m, ft. lbs.): 45 - 55 (4.5 - 5.5, 33 - 40)

INSPECTION
1. Check the hub & bearing assembly for wear or damage.
2. Check the carrier assembly for cracks.
3. Check the rear tone wheel for chipped the teeth.

INSTALLATION
1. Installation is the reverse of removal.
