Cabin Air Filter / Purifier: Service and Repair

A/C AIR FILTER

REPLACEMENT

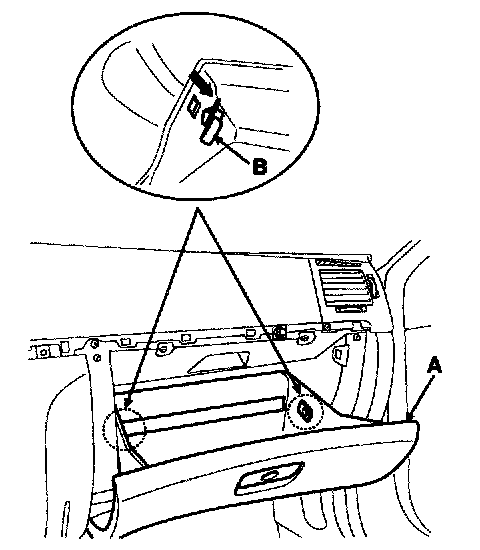

1. Remove the glove box (A) from the lift (B).

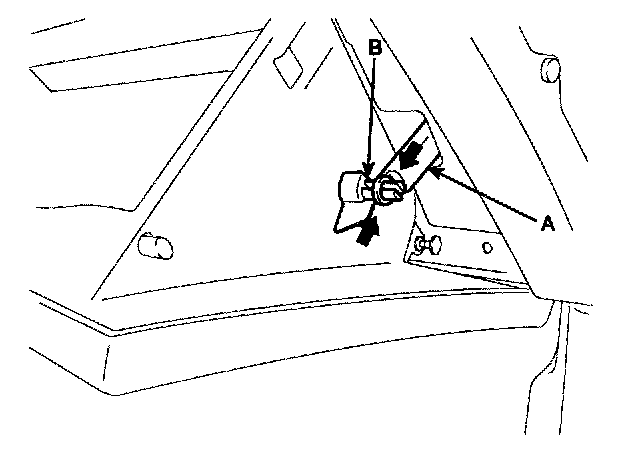

2. Open the glove box (B). Lower the glove box down completely by removing the glove box stopper (A) to the glove box.

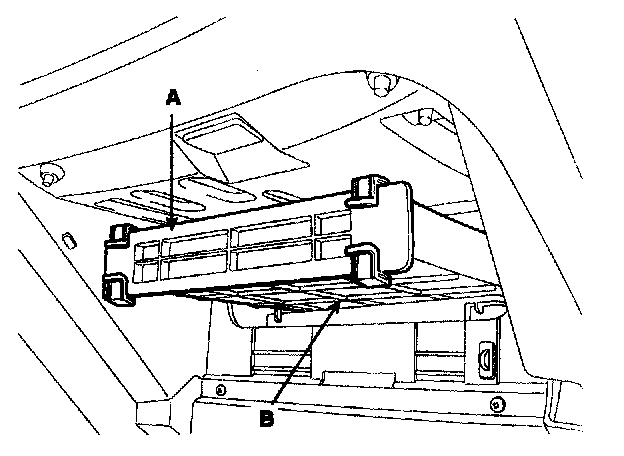

3. Remove the filter cover (A) by pressing the clips inward. Take care not to damage the clips.




4. Replace the air filter (B). The installtion direction is marked on the filter.

NOTE: In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

Replacement period : 15.000 km (9320 mile)
