Home >> Kia >> 2006 >> Optima L4-2.4L VIN 3 >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Testing and Inspection

Dome Lamp: Testing and Inspection

ROOM LAMP




INSPECTION

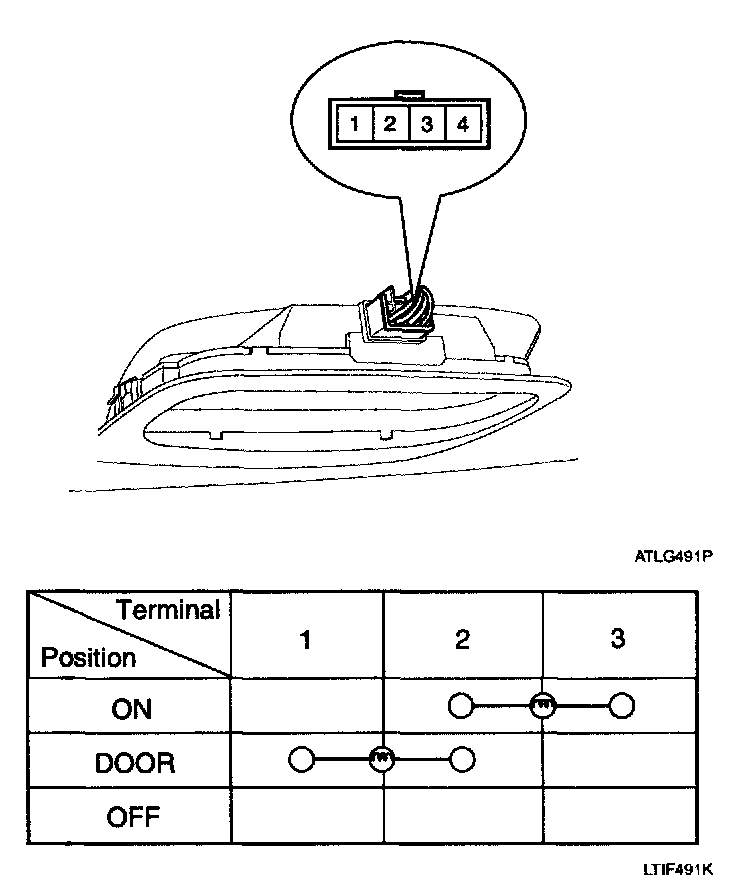

Remove the room lamp assembly then check for continuity between terminals.
