Body (Interior and Exterior)

ROOM LAMP REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

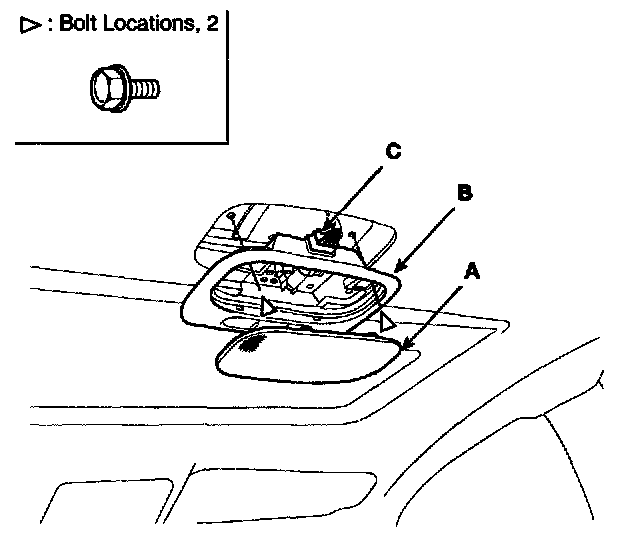

1. Remove the room lamp.
- Remove the lens (A).
- Remove the screws.
- Pull out the room lamp (B).
- Disconnect the connector (C).

2. Installation is the reverse of removal.
