Lower Panel Replacement

LOWER PANEL REPLACEMENT

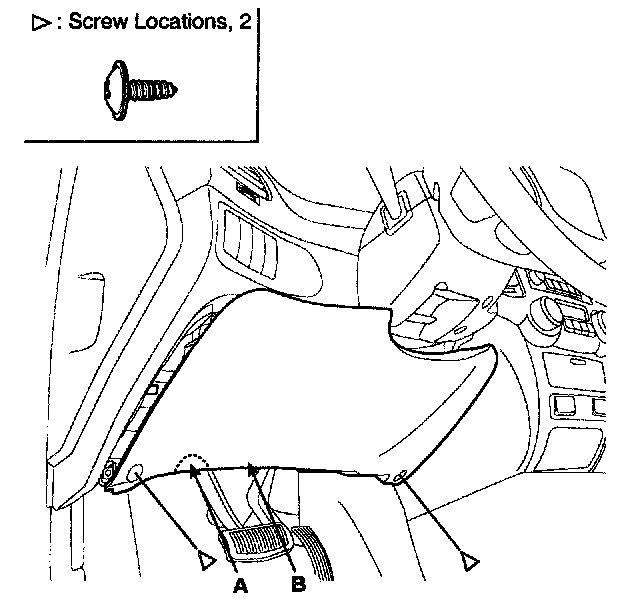

1. After loosening the crash pad lower panel mounting screw, then remove the lower panel (B).
2. Disconnect the connector (A).

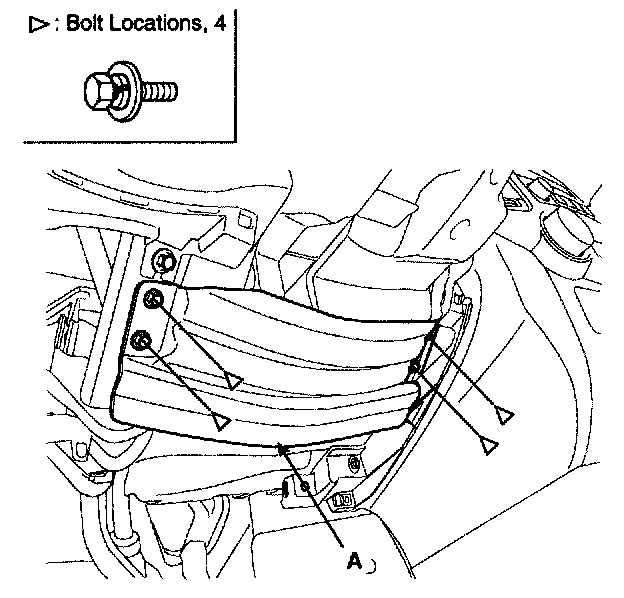

3. Loosen the mounting bolts, remove the lower panel mounting bracket (A).
4. Installation is the reverse of removal.
