Center Facia Panel Replacement

CENTER FACIA PANEL REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

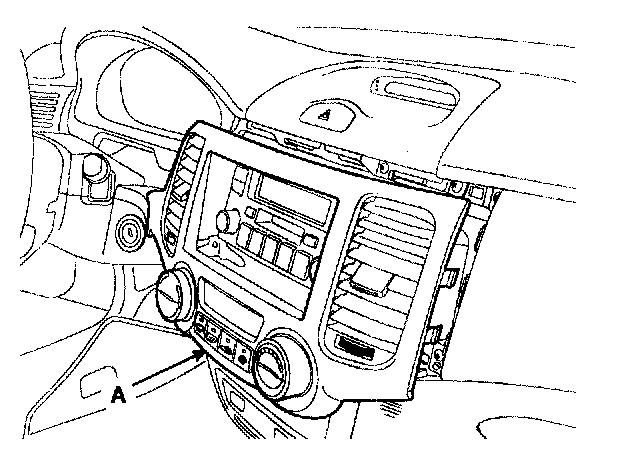

1. Using a clip remover, and remove the center facia panel (A).
2. Installation is the reverse of removal.

NOTE: Make sure the connector are plugged in properly.
