Audible Warning Device: Service and Repair

BUZZER

REPLACEMENT
1. Disconnect the negative (-) battery terminal.




2. Remove the driver lower crash pad panel (A).

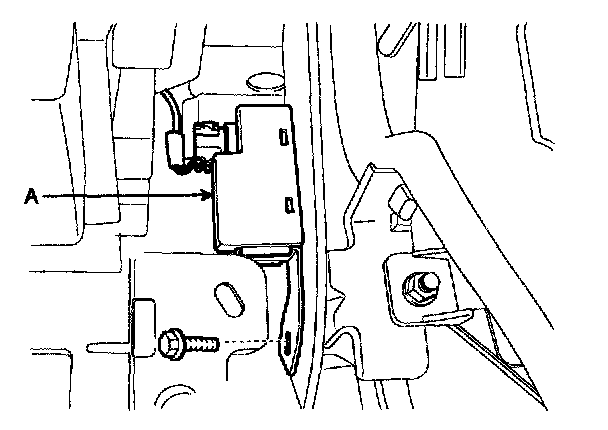

3. Remove the buzzer (A) after loosening the nut and disconnecting the 2P connector.
4. Installation is the reverse of removal procedure.
