TEMPERATURE CONTROL ACTUATOR

INSPECTION
1. Ignition "OFF".
2. Disconnect the connector of temperature control actuator.




3. Verify that the temperature control actuator operates to the hot position when connecting 12 V to the terminal 3 and grounding terminal 4.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.

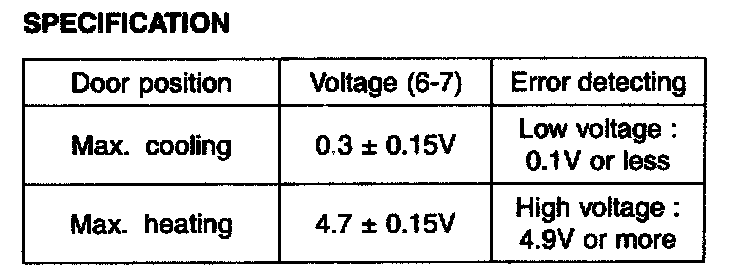

Specification:

4. Check the voltage between terminals 6 and 7.
It will feedback current position of actuator to controls.

5. If the measured voltage is not specification, substitute with a known-good temperature control actuator and check for proper operation.
6. If the problem is corrected, replace the temperature control actuator.
