Temperature Control Actuator

TEMPERATURE CONTROL ACTUATOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the driver's crash pad lower panel.
3. Disconnect the temperature control actuator connector (A) after removing the air duct.

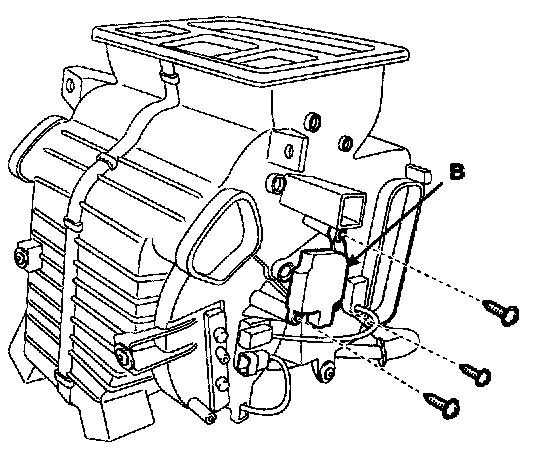

4. Loosen the mounting screw and then remove the temperature control actuator (B).
5. Installation is the reverse order of removal.
