Intake Actuator

INTAKE ACTUATOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the glove box.
3. Disconnect the intake actuator connector.

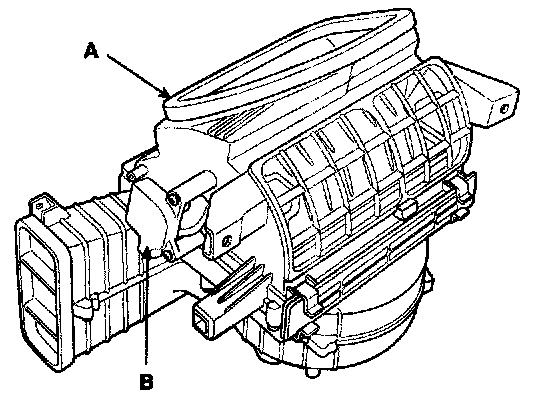

4. Loosen the mounting screw and then remove the intake actuator (A) from the blower unit.
5. Installation is the reverse order of removal.
