Front Mud Guard

FRONT MUD GUARD AND WHEEL GUARD REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

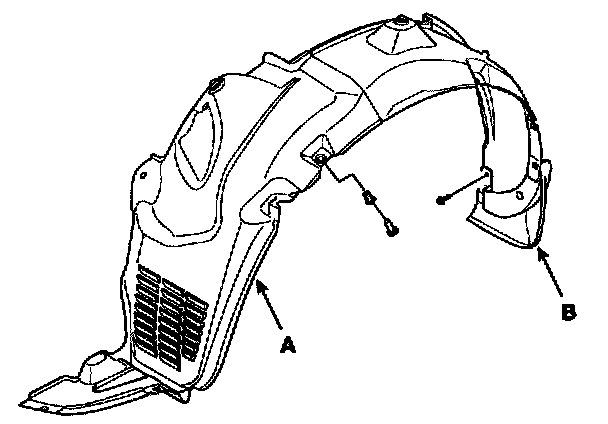

1. Remove the mud guard (B).
2. Remove the wheel guard (A).
3. Installation is the reverse of removal.
