Trim Panel: Service and Repair

INTERIOR TRIM

FRONT DOOR AND REAR DOOR SCUFF TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

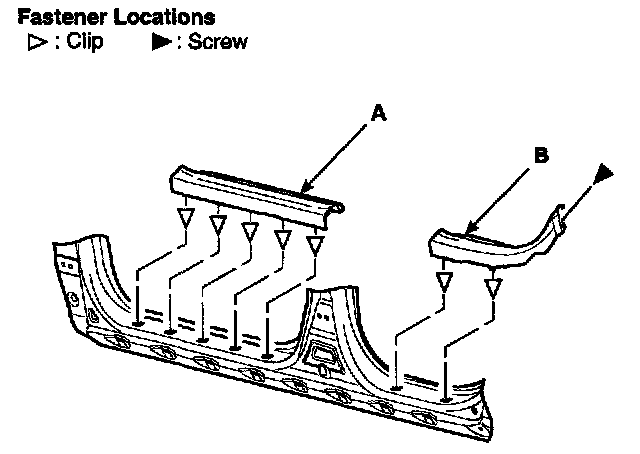

1. Remove the front door scuff trim (A).
2. Remove the rear door scuff trim (B).
3. Installation is the reverse of removal.

NOTE: Replace any damaged clips.

FRONT PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

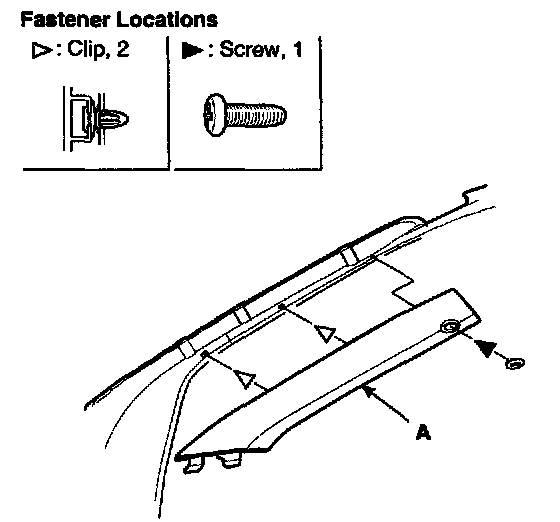

1. Remove the front pillar trim (A).
2. Installation is the reverse of removal.

NOTE: Replace any damaged clips.

COWL SIDE TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.

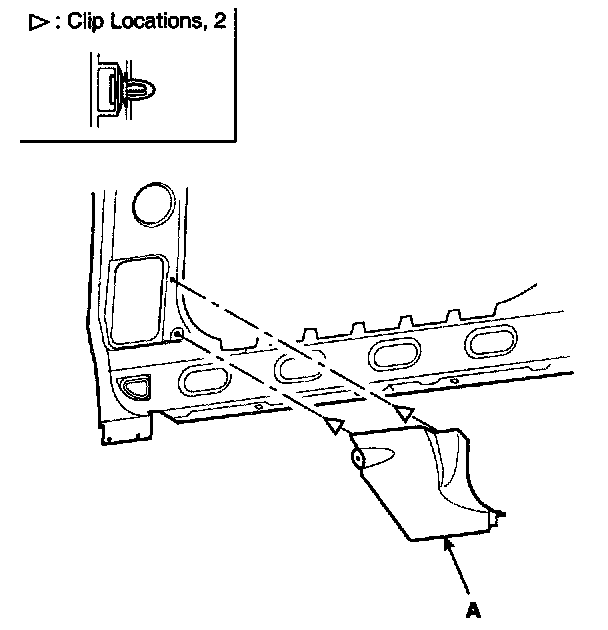

2. Remove the cowl side trim (A).
3. Installation is the reverse of removal.

NOTE: Replace any damaged clips.

CENTER LOWER AND UPPER PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

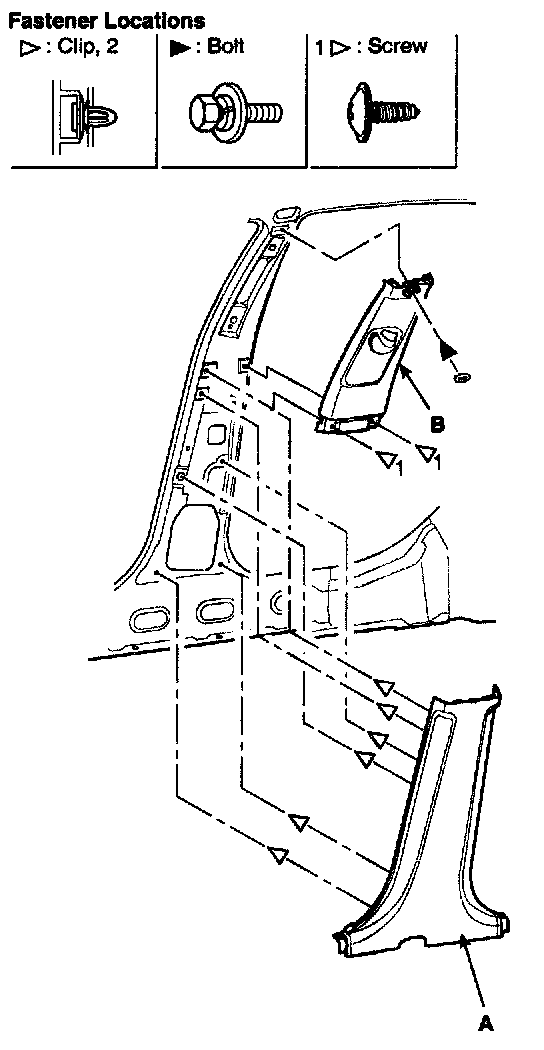

1. Remove the center lower pillar trim (A).
2. Remove the center upper pillar trim (B).
3. Installation is the reverse of removal.

NOTE: Replace any damaged clips.

REAR PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

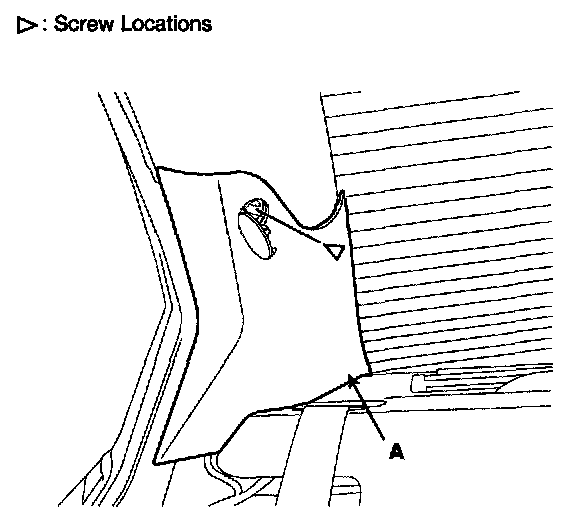

1. Remove the rear pillar lower trim (A).
2. Installation is the reverse of removal.

NOTE: Replace any damaged clips.
