Passenger Assist Handle: Service and Repair

ASSIST HANDLE REPLACEMENT

NOTE:
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Put on gloves to protect your hands.

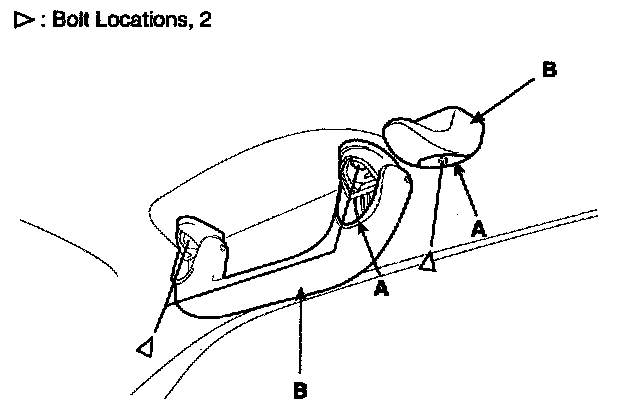

1. Remove the covers (A), and remove the screws, then remove the assist handle (B).
2. Installation is the reverse of removal.
