Headliner: Service and Repair

ROOF TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.




1. Remove the following items.
- Front seat, rear seat assembly.
- Front, rear door scuff trim.
- Front pillar trim.
- Center lower, upper pillar trim.
- Rear pillar trim.
- Overhead console.
- Room lamp.
- Sunvisor, assist handle.
- Vanity lamp and hands free mic.

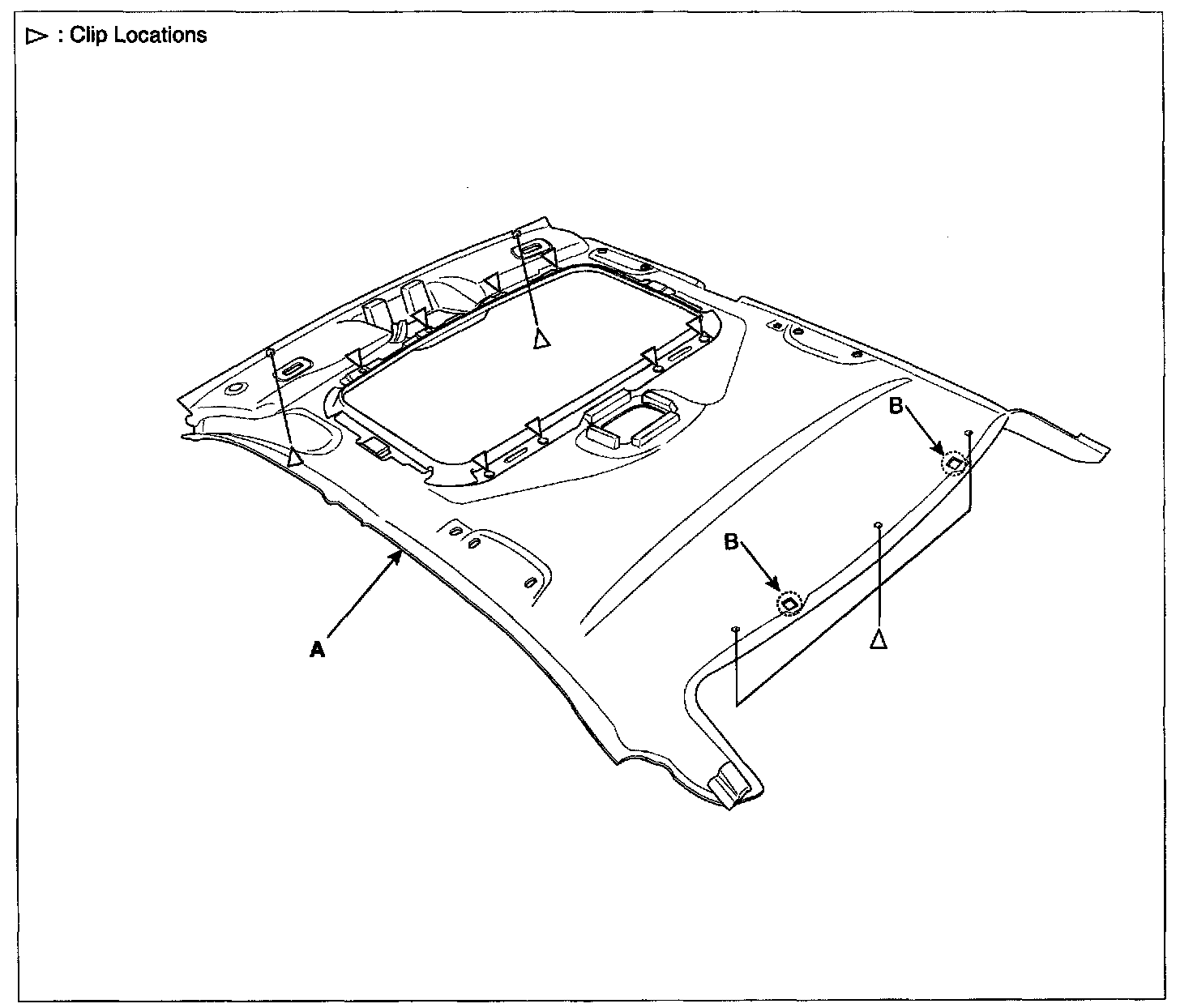

2. Remove the connector (B).
3. Remove the roof trim (A).
4. Installation is the reverse of removal.

NOTE: Replace any damaged clips.
