Interior Trim

ARMREST REPLACEMENT

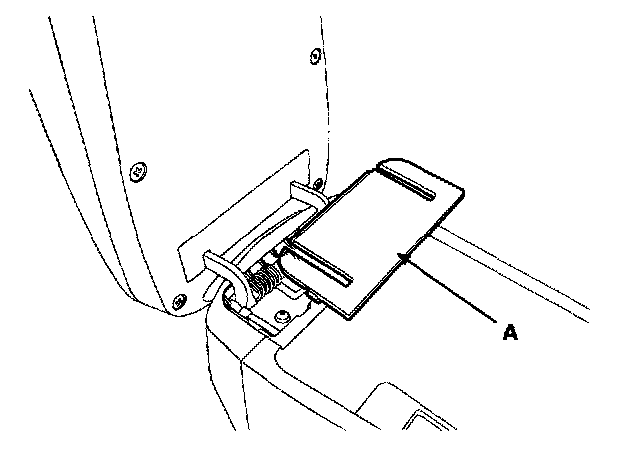

1. Remove the armrest mounting cover (A).

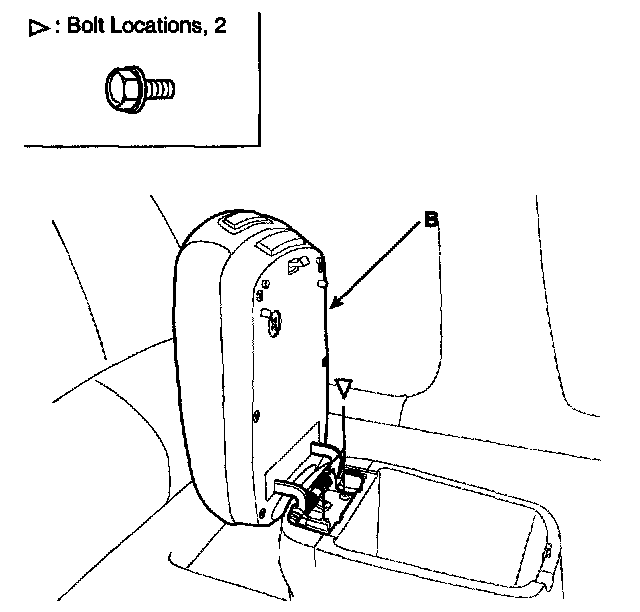

2. After loosening the armrest mounting screws, remove the armrest (B).
3. Installation is the reverse of removal.
