Front Seat

ARMREST REPLACEMENT
1. Loosening the armrest mounting nuts.

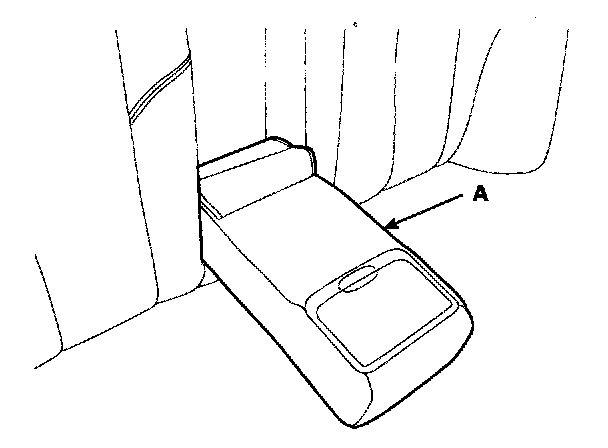

2. Remove the armrest (A).
3. Installation is the reverse of removal.
