Hood Latch Release Cable: Service and Repair

HOOD LATCH CABLE REPLACEMENT
1. Remove the following items.
- Hood latch.
- Hood release handle.
- Wheel guard.

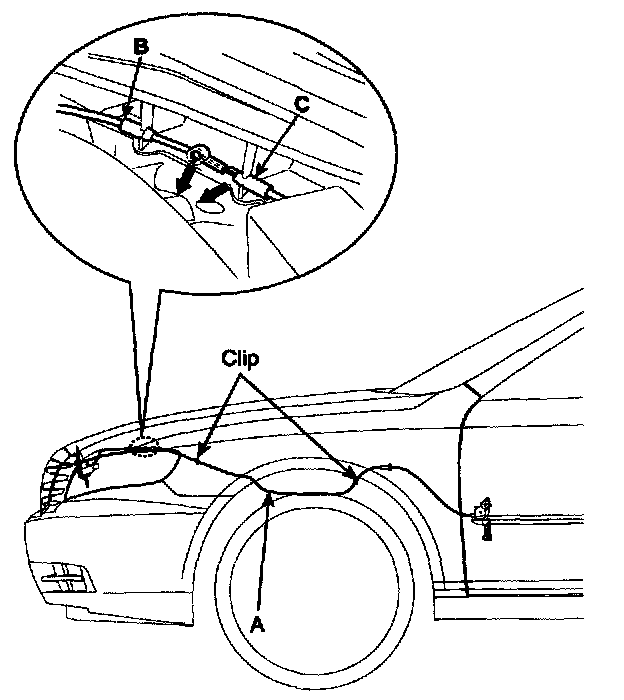

2. Disconnect the hood latch cable (B) and release cable (C).




3. Remove the hood latch cable (A).

NOTE: Take care not to bend the cable.

4. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch is connected properly
- Replace any damaged clips.
