Rear Door Latch: Service and Repair

LATCH ASSEMBLY REPLACEMENT
1. Remove the following parts.
- Front door trim.
- Glass.
- Inside handle.
- Outside handle.

2. Remove the module assembly.

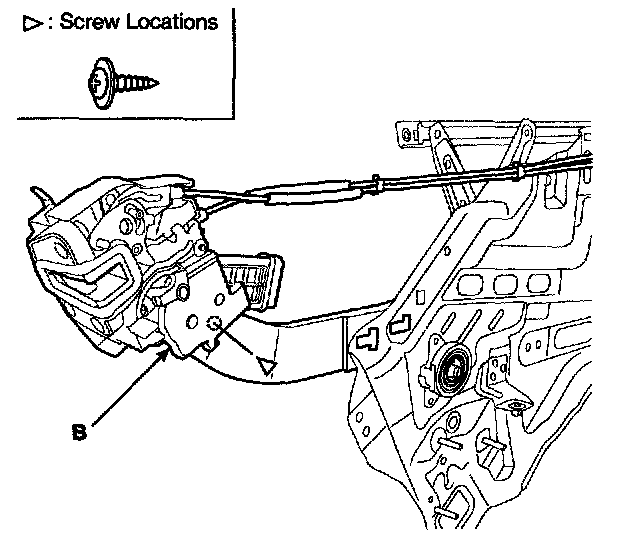

3. Remove the latch assembly (B).
4. Installation is the reverse of removal.

NOTE: Make sure the door locks and opens properly
