Front Door Weatherstrip: Service and Repair

DOOR WEATHERSTRIP REPLACEMENT
1. Loosen the checker mounting bolts.

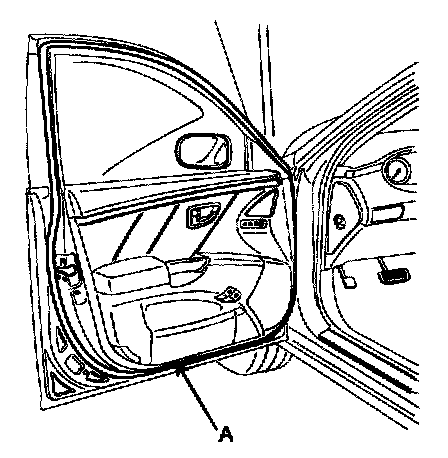

2. Detach the clips, then remove the weatherstrip (A).
3. Installation is the reverse of removal.
