Speakers Replacement

SPEAKERS REPLACEMENT

FRONT SPEAKER
1. Remove the front door trim panel.

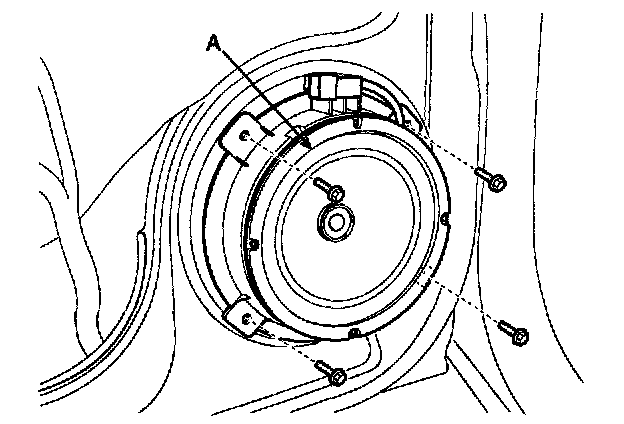

2. Remove the front speaker (A) after loosening 4 screws.
3. Installation is the reverse of removal.

REAR SPEAKER
1. Remove the rear door trim panel.

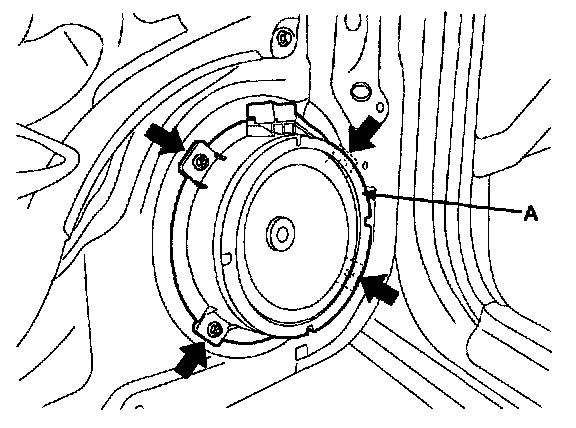

2. Remove the rear speaker (A) after removing 4 rivets.
3. Installation is the reverse of removal.

TWEETER SPEAKER

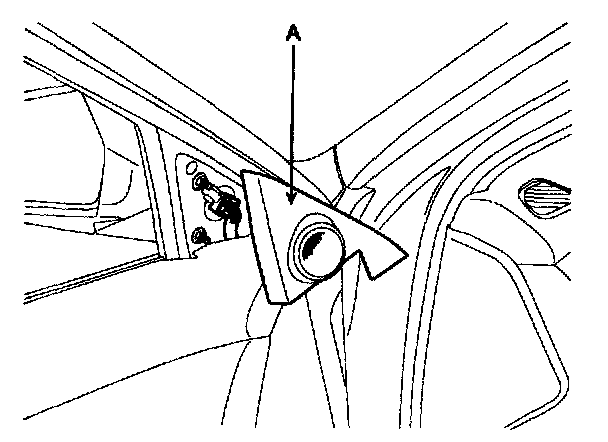

1. Remove the front door delta cover (A).




2. Remove the tweeter speaker after disconnecting the connector.
3. Installation is the reverse of removal.

WOOFER SPEAKER
1. Remove the rear seat.
2. Remove the rear package tray.

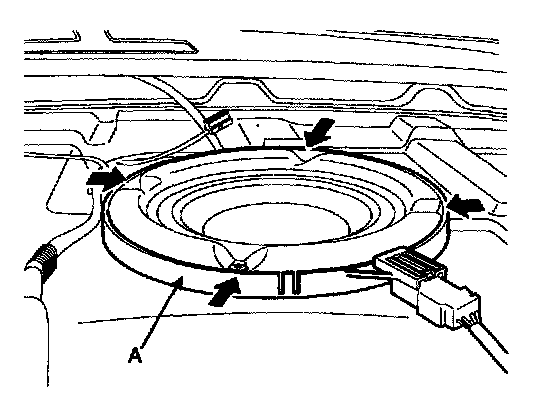

3. Remove the woofer speaker (A) after removing 4 bolts.
4. Installation is the reverse of removal.
