Audio Unit

AUDIO UNIT

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel.

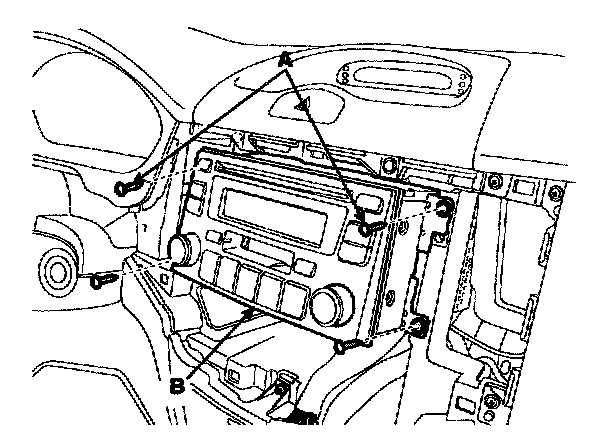

3. Remove the mounting screws (A) then remove the audio unit (B).

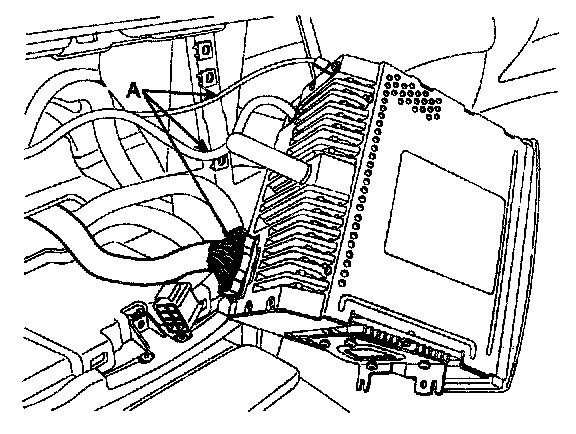

4. Remove the connector and cables (A).
5. Installation is the reverse of removal.
