P0011

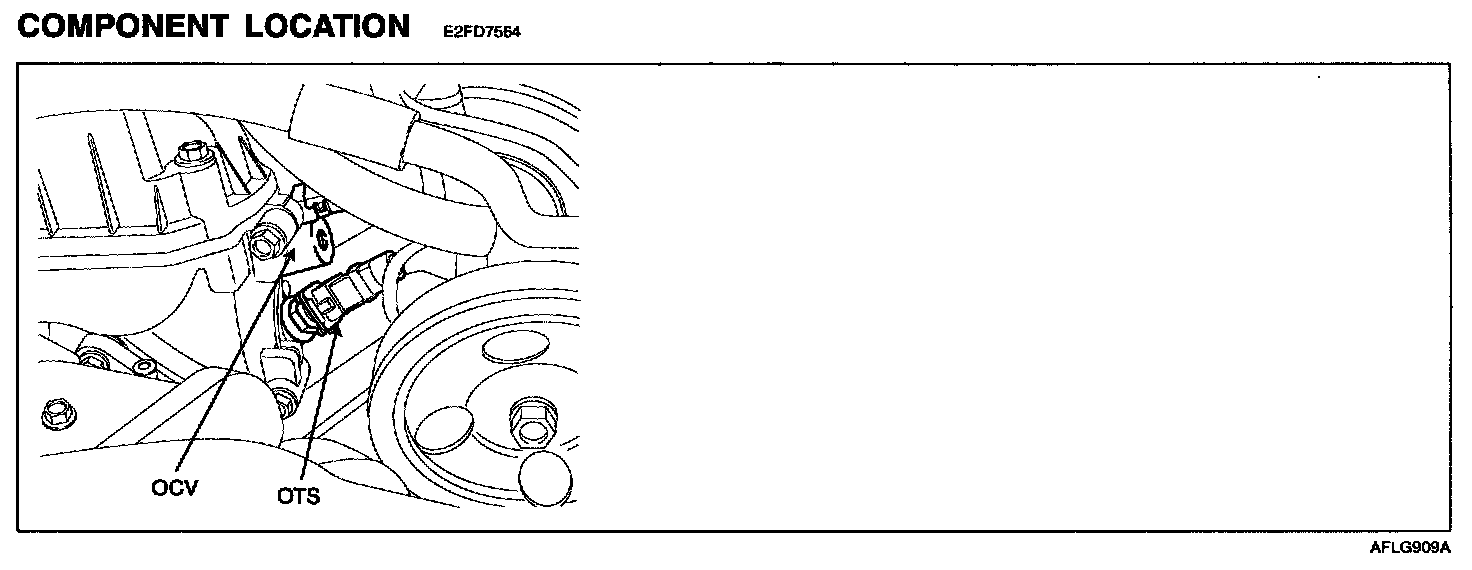

DTC P0011 1 "A" CAMSHAFT POSITION-TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE (BANK 1)Component Location:
GENERAL DESCRIPTION
The CVVT (Continuously Variable Valve Timing) system is installed to the chain sprocket of the exhaust camshaft. There is no variation in valve timing of the exhaust cam because the exhaust camshaft is driven by the timing belt. The timing of the intake cam is varied by the relative operation the CVVT vane to the housing. The CVVT controller regulates the intake camshaft angle using oil pressure through the OCV (Oil Control Valve). As result, the relative position between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves, exhaust emissions decrease by changing the valve open/close timing of the intake camshaft.
DTC DESCRIPTION
The deviation of the camshaft position from the target point is evaluated during stable driving condition. The ECM accumulates this deviation for a certain period and sets DTC P0011 when the accumulated deviation is too high. The target camshaft position is predetermined value depending on engine speed and throttle angle in the ECM.

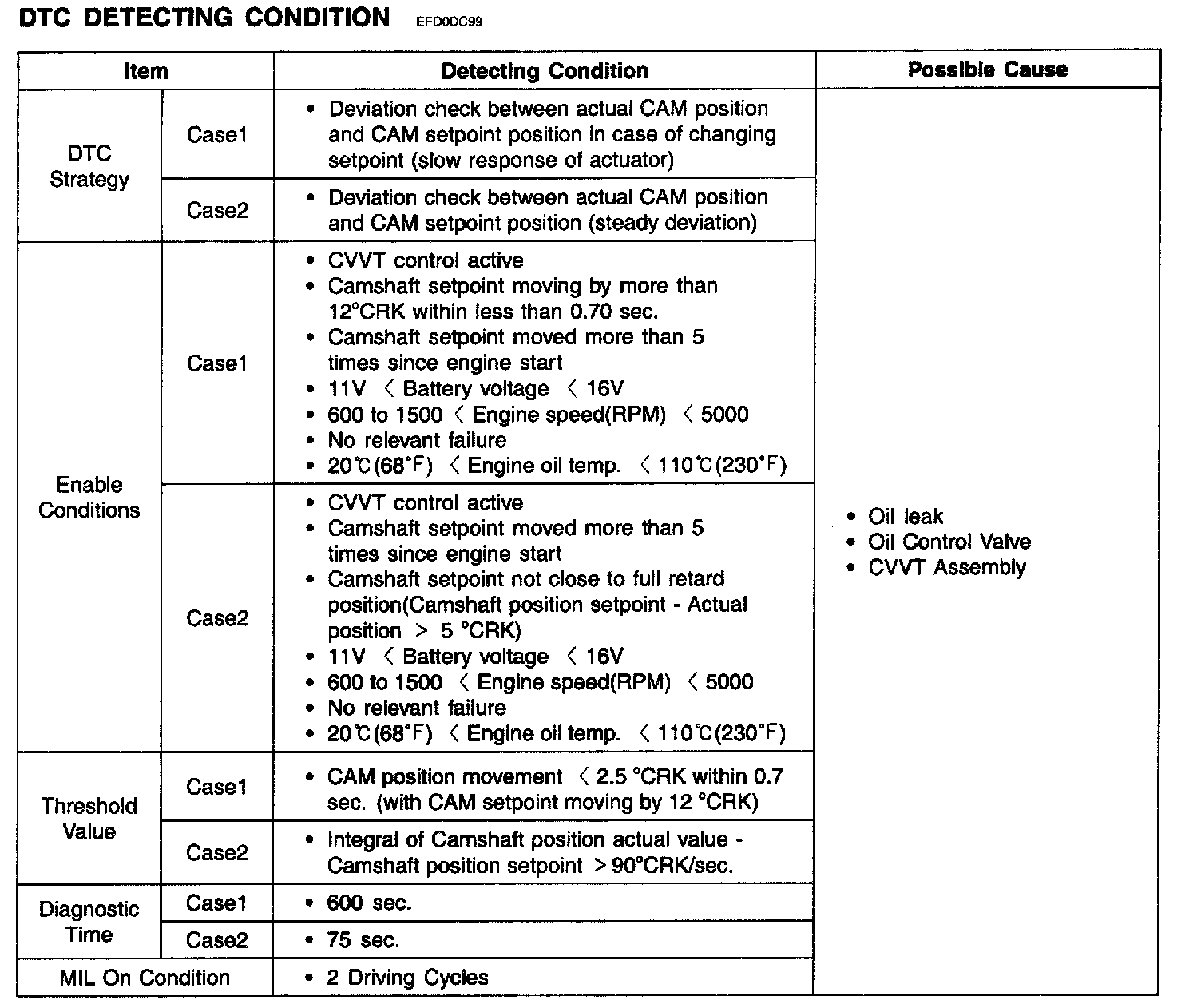

DTC Detecting Condition:
SPECIFICATION
Intake OCV Normal Parameter
Insulation Resistance Above 50 MOhms

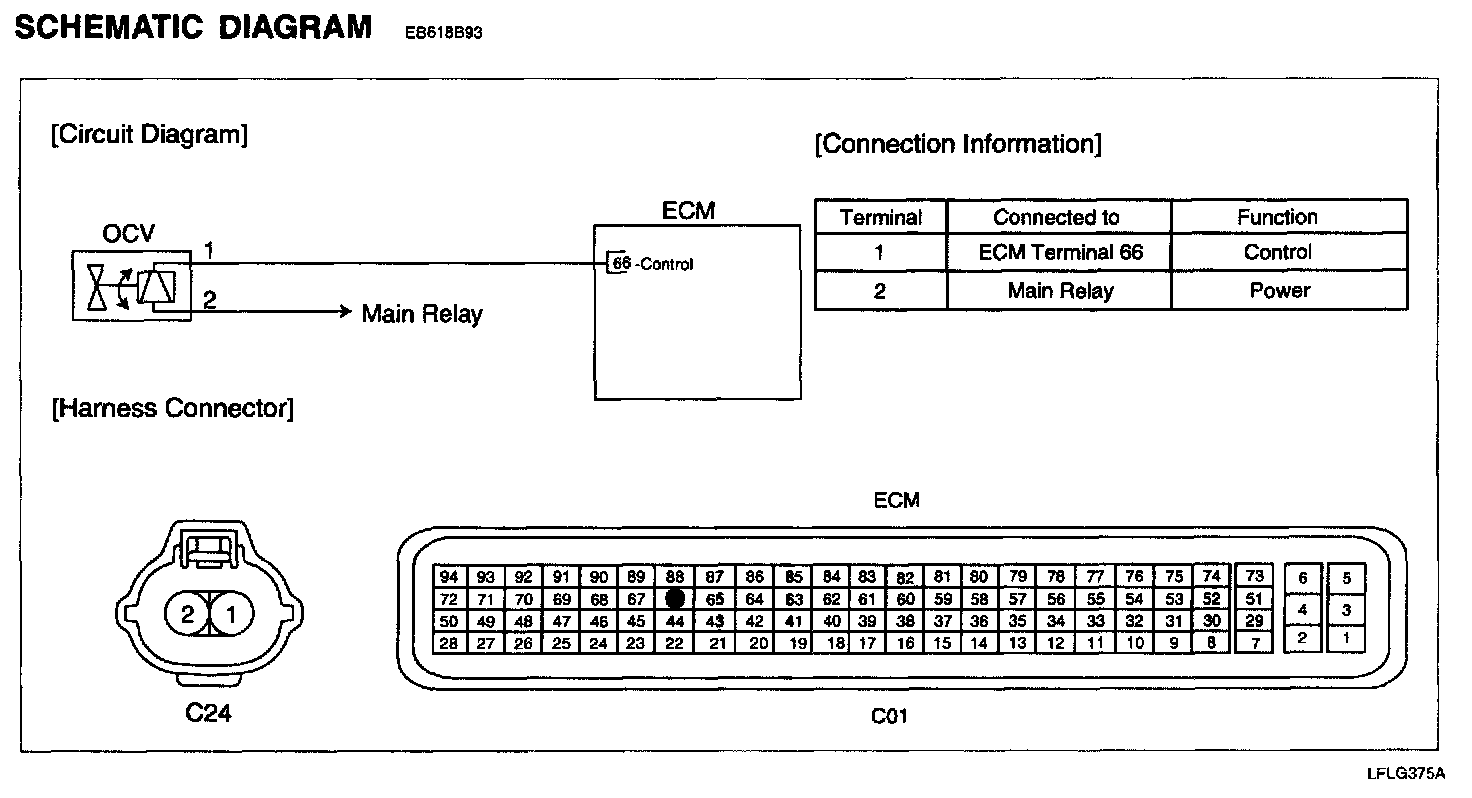

Schematic Diagram:

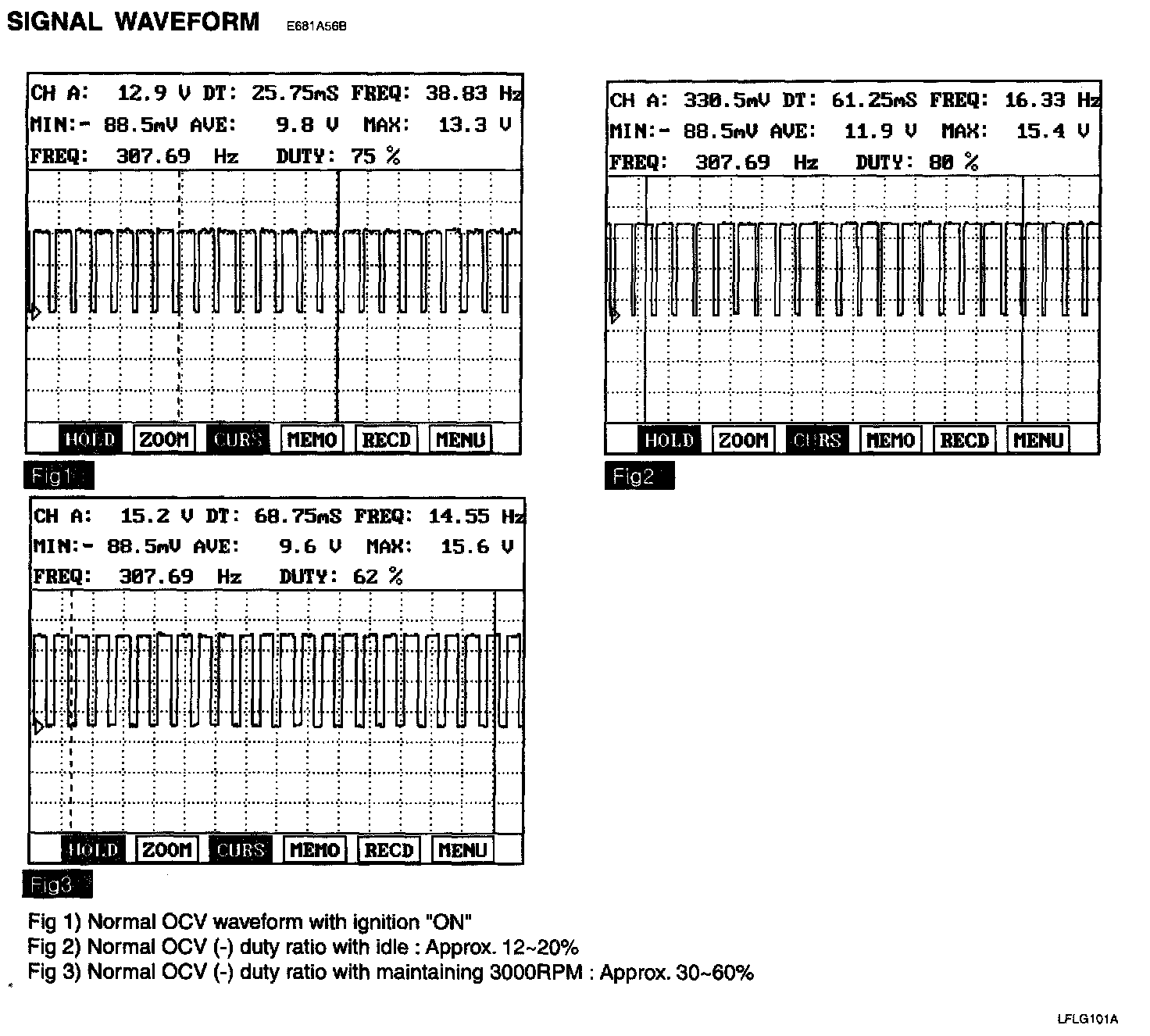

Signal Waveform:
MONITOR DTC STATUS

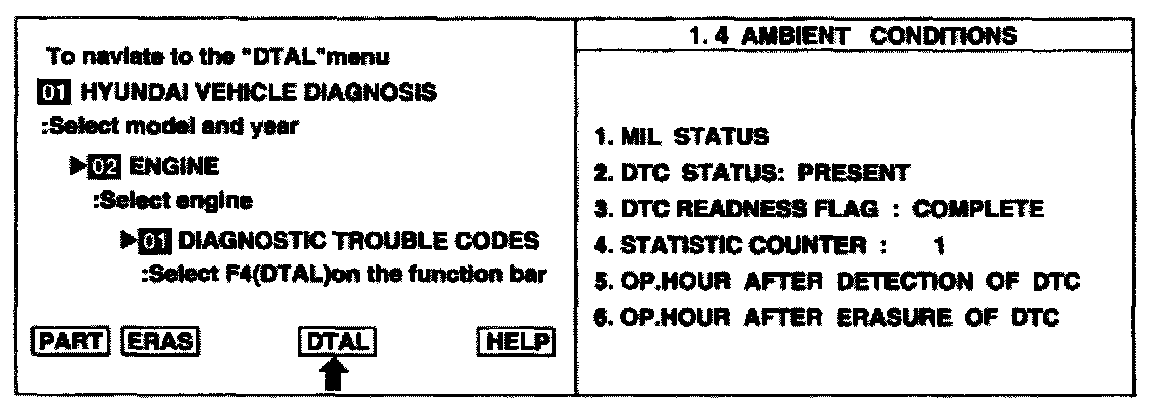

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode.
2. Press F4 (DTAL) to select DTC information from the DTCs menu.
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
4. Read "DTC Status" parameter.
5. Is parameter displayed "History (Not Present) fault"?
NOTE:
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
YES - Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, con contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO - Go to next step as below.
COMPONENT INSPECTION
CHECK OPERATION OF OCV
1. Ignition "ON" & Engine "OFF"
2. Install scantool and select "OCV (CVVT) VALVE" in the Actuation Test mode
3. Activates "OCV (CVVT) VALVE" by pressing "STRT (F1)" key (should hear a faint click from Oil Control Valve)
4. Repeat this procedure 4 or 5 times to ensure Oil Control Valve reliability
5. Has a problem been found?
YES - Check OCV for con contamination, deterioration, or damage. Substitute with a known-good OCV and check for proper operation. If the problem is corrected, replace OCV and then go to "Verification of Vehicle Repair" procedure
NO - Go to next step as below
CHECK RESISTANCE OF OCV
1. Ignition "OFF"
2. Disconnect intake OCV connector.
3. Measure resistance between terminals 1 and 2 of the intake OCV connector. (Component side)

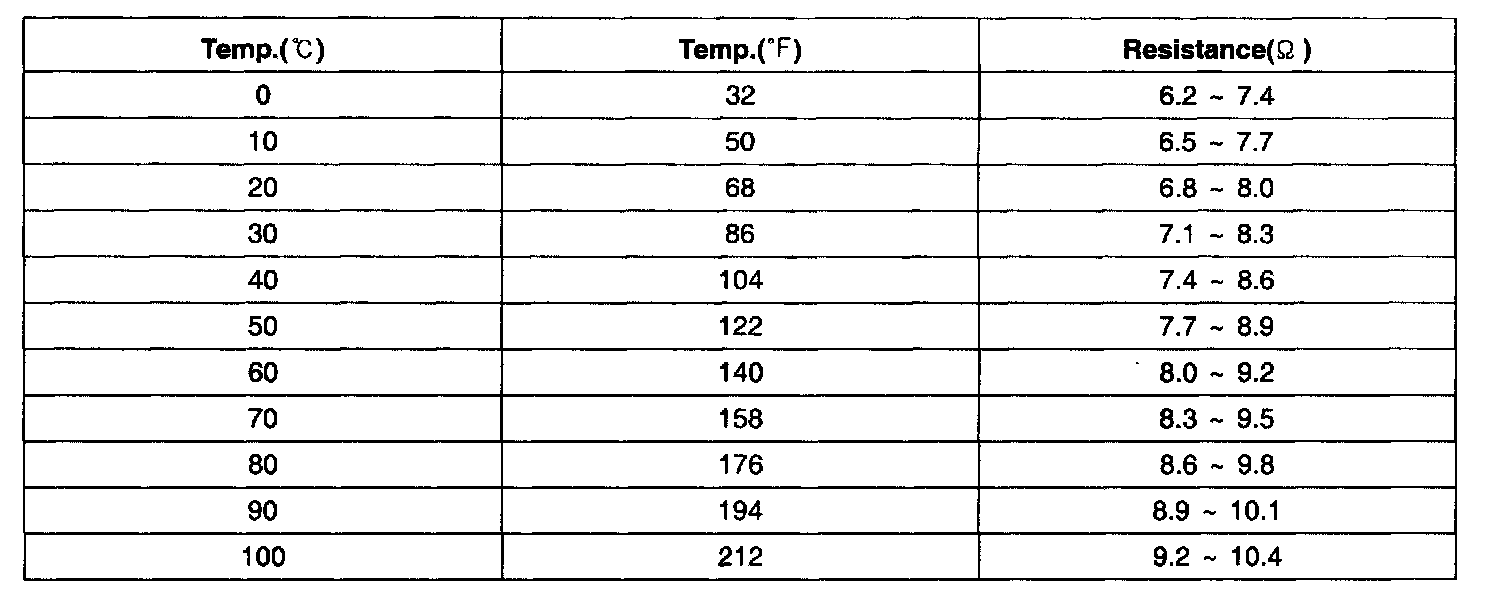

Specification : Approx. 6.8 - 8.09 Ohms at 20 degrees C (68 degrees F)
4. Is resistance within the specification?
YES - Go to next step as below
NO - Replace OCV and then go to "Verification of Vehicle Repair" procedure
CHECK THE SUSPECTED AREA
1. Oil Control Valve filter for sticking or con contamination
1. Ignition "OFF"
2. Check OCV filter for sticking or con contamination.
3. Remove the OCV and visually check the spool column of OCV for contamination
2. Engine oil filter
3. Has a problem been found?
YES - Clean or replace as necessary and then go to "Verification of Vehicle Repair" procedure
NO - Go to next step as below.
CHECK CVVT (CONTINU0USLY VARIABLE VALVE TIMING) ASSEMBLY
1. Remove the CVVT assembly.
2. Check that the CVVT assembly is locked.
3. The one of the 2 holes on the cam journal is for advances (upper) and the rest is for retards (lower). Apply masking tape to all oil path holes except the one advance hole ("BM") indicated by the arrow as shown in the figure.
4. To release the CVVT lock pin, wrap some tape around the tip of an air pressure adapter and apply low air pressure of approx. 150 kPa (1.5 kg/sq.cm, 21 psi) to the exposed camshaft port. Wrap a shop towel or rag around the CVVT because residual oil may leak out of the unit when applying air pressure.

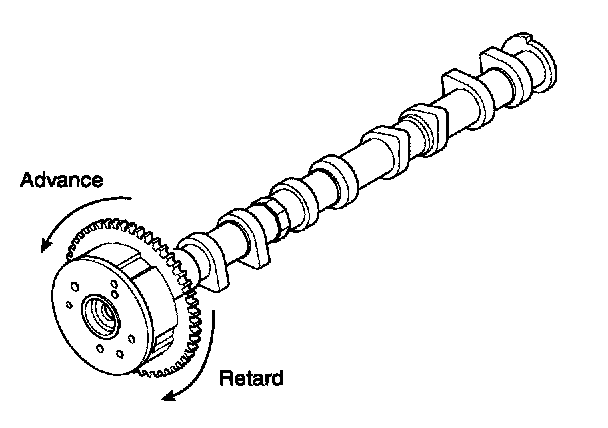

5. With low air pressure applied, turn the CVVT to the ADVANCE direction as indicated in the figure.
NOTE: If too much air leaks when applying the low air pressure, the CVVT lock pin may not release and the CVVT may not turn.
6. Allow the CVVT assembly to move in the ADVANCE and DELAY directions to ensure there is no binding and that it moves freely. (Movable smoothly in the range about 20")
7. Turn the CVVT by hand and make sure it locks in the maximum delay angle position.
8. Is CVVT assembly working properly?
YES - Go to next step as below.
NO - Replace the CVVT assembly and go to "Verification of Vehicle Repair" procedure.
TERMINAL AND CONNECTOR INSPECTION
1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, con contamination, deterioration, or damage.
3. Has a problem been found?
YES - Repair as necessary and go to "Verification of Vehicle Repair" procedure.
NO - Check valve timing. Refer to "P00166" : Crankshaft Position-Camshaft Position Correlation (Bank 1)" procedure. Repair as necessary and go to "Verification of Vehicle Repair" procedure.
VERIFICATION OF VEHICLE REPAIR
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode.
2. Press F4 (DTAL) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
3. Read "DTC Status" parameter.
4. Is parameter displayed "History (Not Present) fault"?
YES - System performing to specification at this time. Clear the DTC
NO - Go to the applicable troubleshooting procedure.
