Service Adjustment Procedure
CLUTCH PEDAL AND IGNITION LOCK SWITCHNOTE:
^ Inspect ignition lock switch.
^ Remove the driver's seat mat to adjust a clutch pedal.
^ No gap between a clutch master cylinder piston and push rod can cause clutch slip.
1. Loosen and draw out the bolt until it is off the pedal surface.

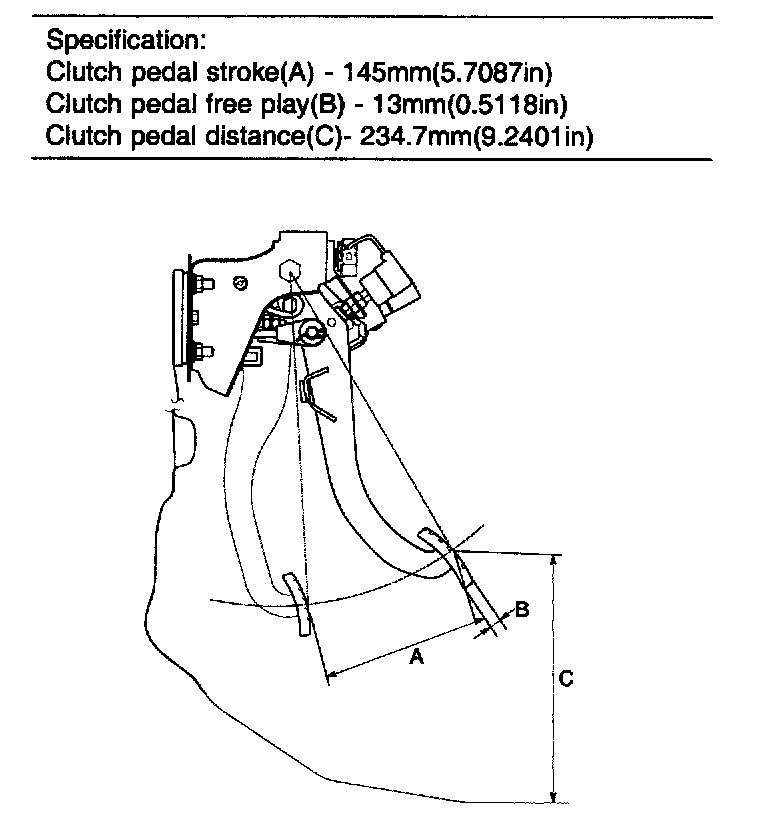

2. Push and pull a clutch master cylinder push rod to satisfy the specification.
3. With no pressure on a clutch pedal, tighten the bolt until it contacts on the pedal.
4. Tighten the retaining nut.
5. Press the clutch pedal to the floor.
6. Adjust the ignition lock switch position with the pedal raised (3 - 5 mm).
7. Install the ignition lock switch firmly
TORQUE: 7.8 - 9.8 Nm (80 - 100 kgf.cm, 5.8 - 7.2 ft. lbs.)
