Cabin Temperature Sensor / Switch: Testing and Inspection

IN CAR SENSOR

INSPECTION
1. Ignition "ON".

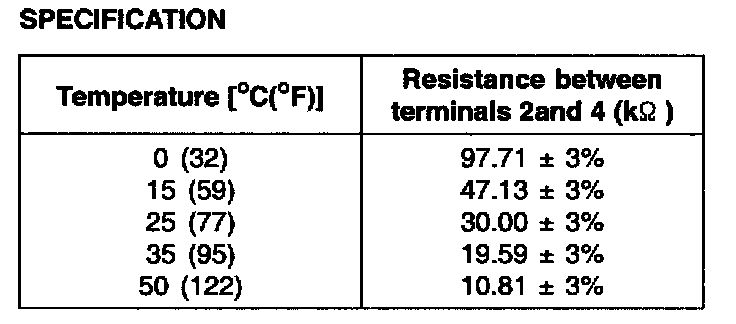

2. Blow air with changing temperature to the in car sensor air inlet. Measure sensor resistance between 2 and 4 terminals.

NOTE: In car sensor is negative type thermistor resistance will rise with lower temperature, and reduce with higher temperature.
