Temperature Sensor (Gauge): Testing and Inspection

ENGINE COOLANT TEMPERATURE SENDER

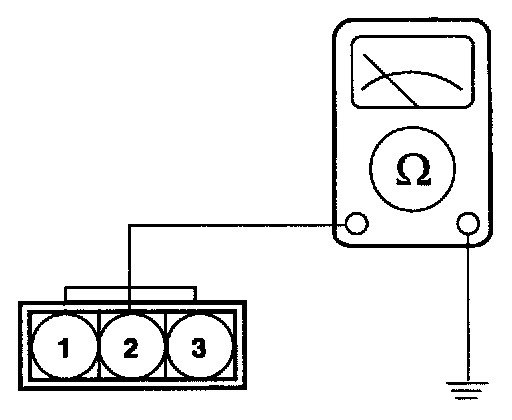

1. Using an ohm meter, measure the resistance between the terminal 2 and ground.

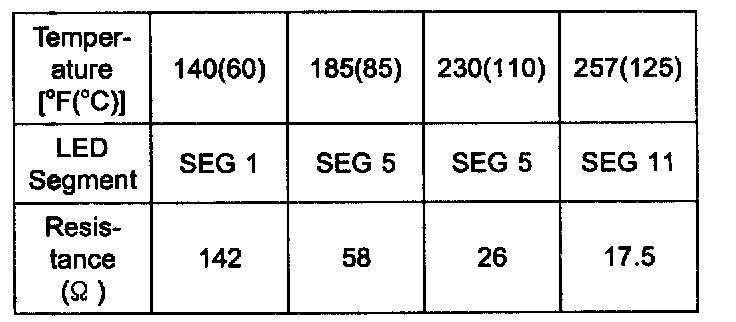

2. If the resistance value is not as shown in the table, replace the temperature sender.
