Front Seat Belt

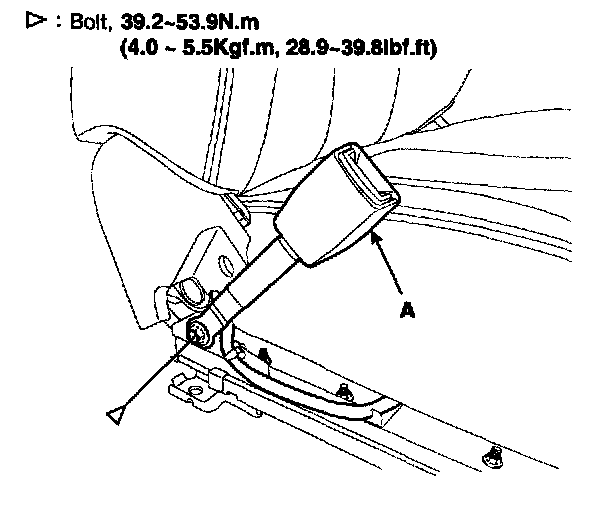

FRONT SEAT BELT BUCKLE REPLACEMENT1. Remove the following items first.
- Front seat assembly.
2. Remove the wire harness of buckle from seat.
3. Remove the seat belt buckle (A).
4. Installation is the reverse of removal.
1. Remove the following items first.
- Front seat assembly.
2. Remove the wire harness of buckle from seat.
3. Remove the seat belt buckle (A).
4. Installation is the reverse of removal.
