Home >> Kia >> 2006 >> Magentis (CANADA) L4-2.4L VIN 3 >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Fuel Level Sensor >> Locations

Fuel Level Sensor: Locations

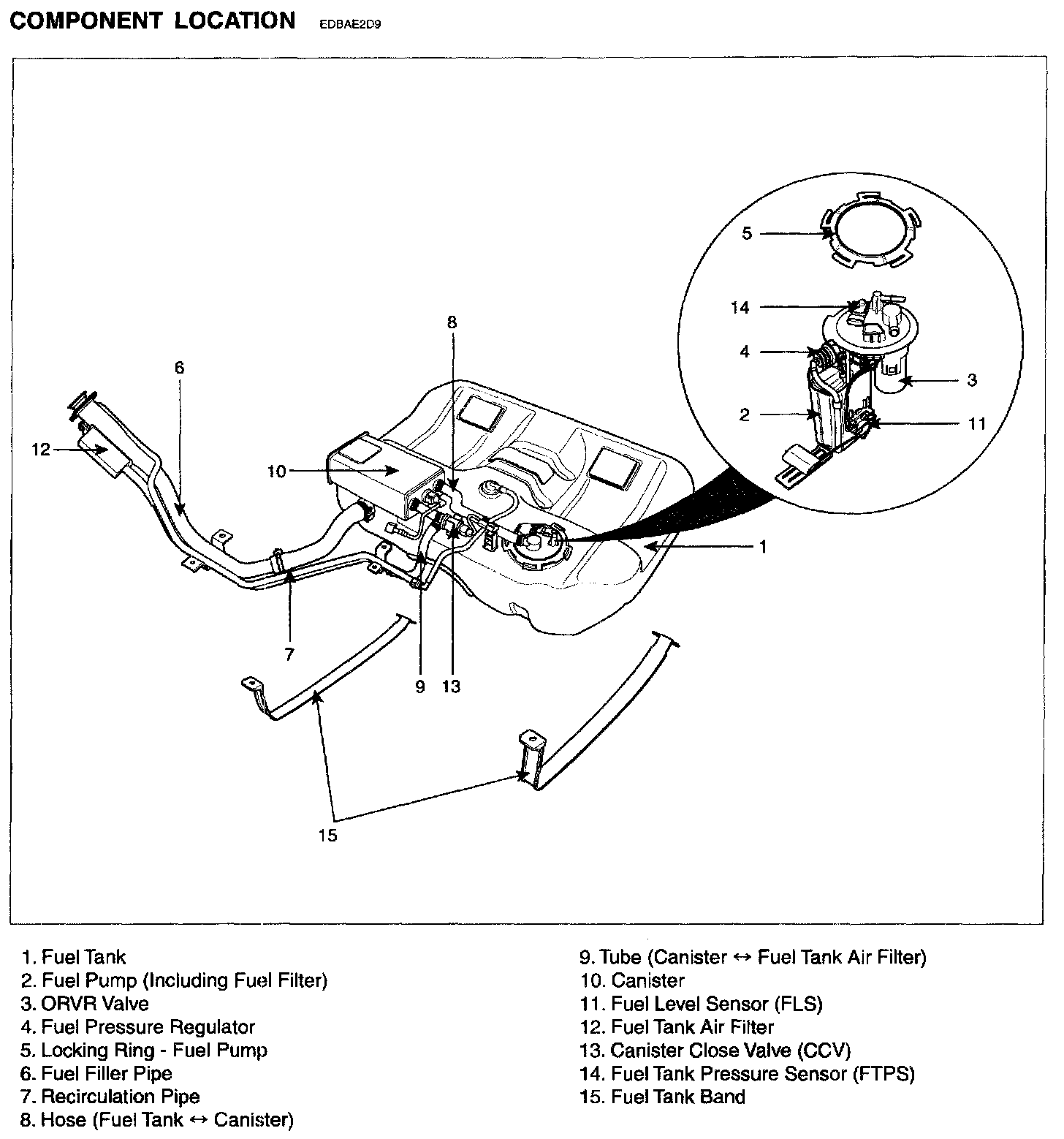

Fuel Delivery System Component Location:

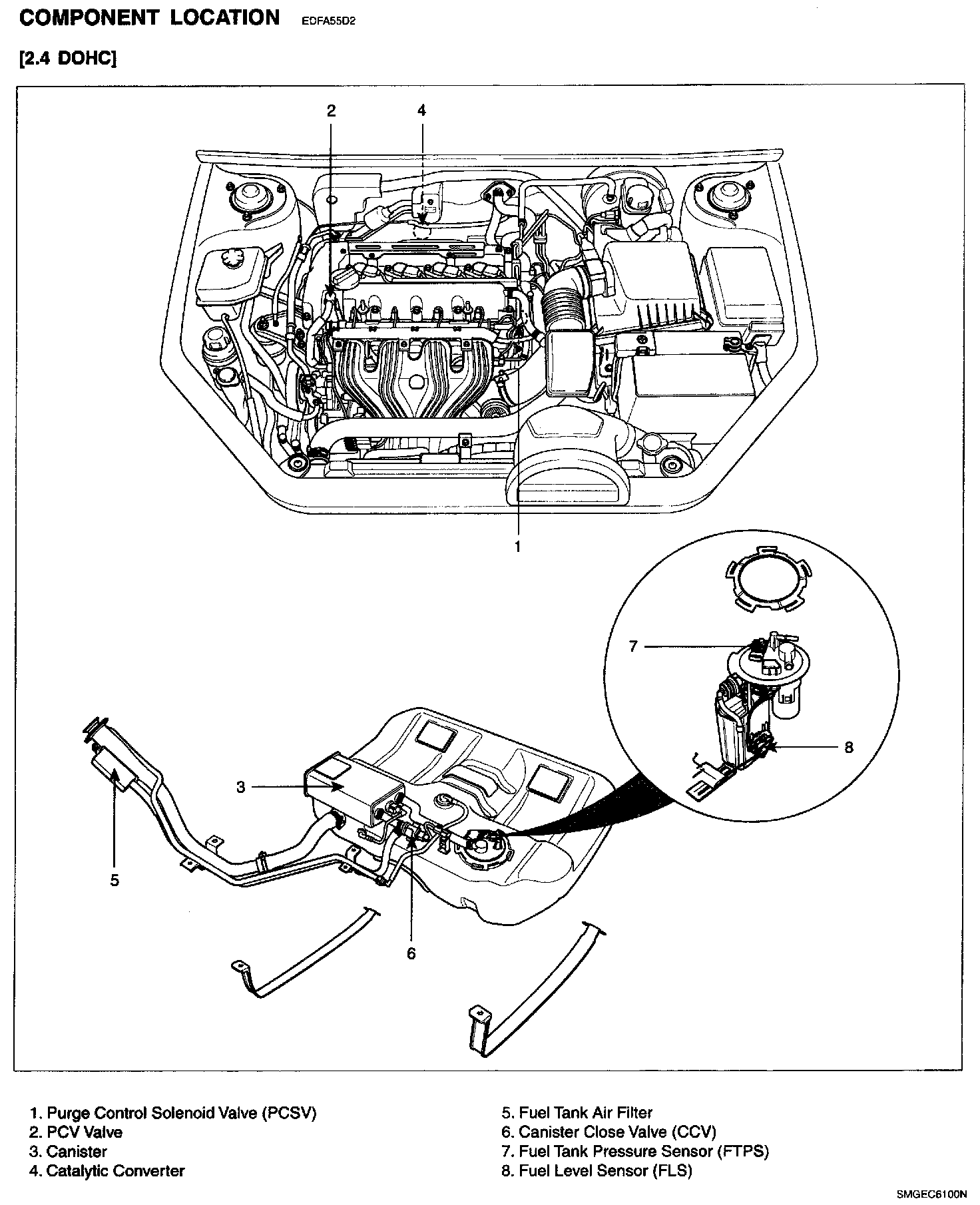

Component Location - 2.4 DOHC:
