Home >> Kia >> 2006 >> Magentis (CANADA) L4-2.4L VIN 3 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oil Temperature Sensor For ECM >> Specifications

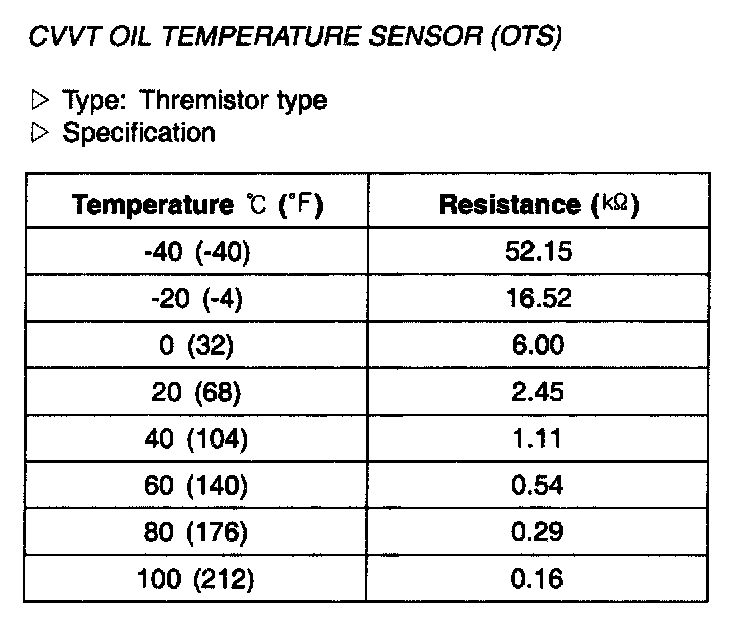

Oil Temperature Sensor For ECM: Specifications
