Magentis (CANADA) L4-2.4L VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Schematic
Schematic

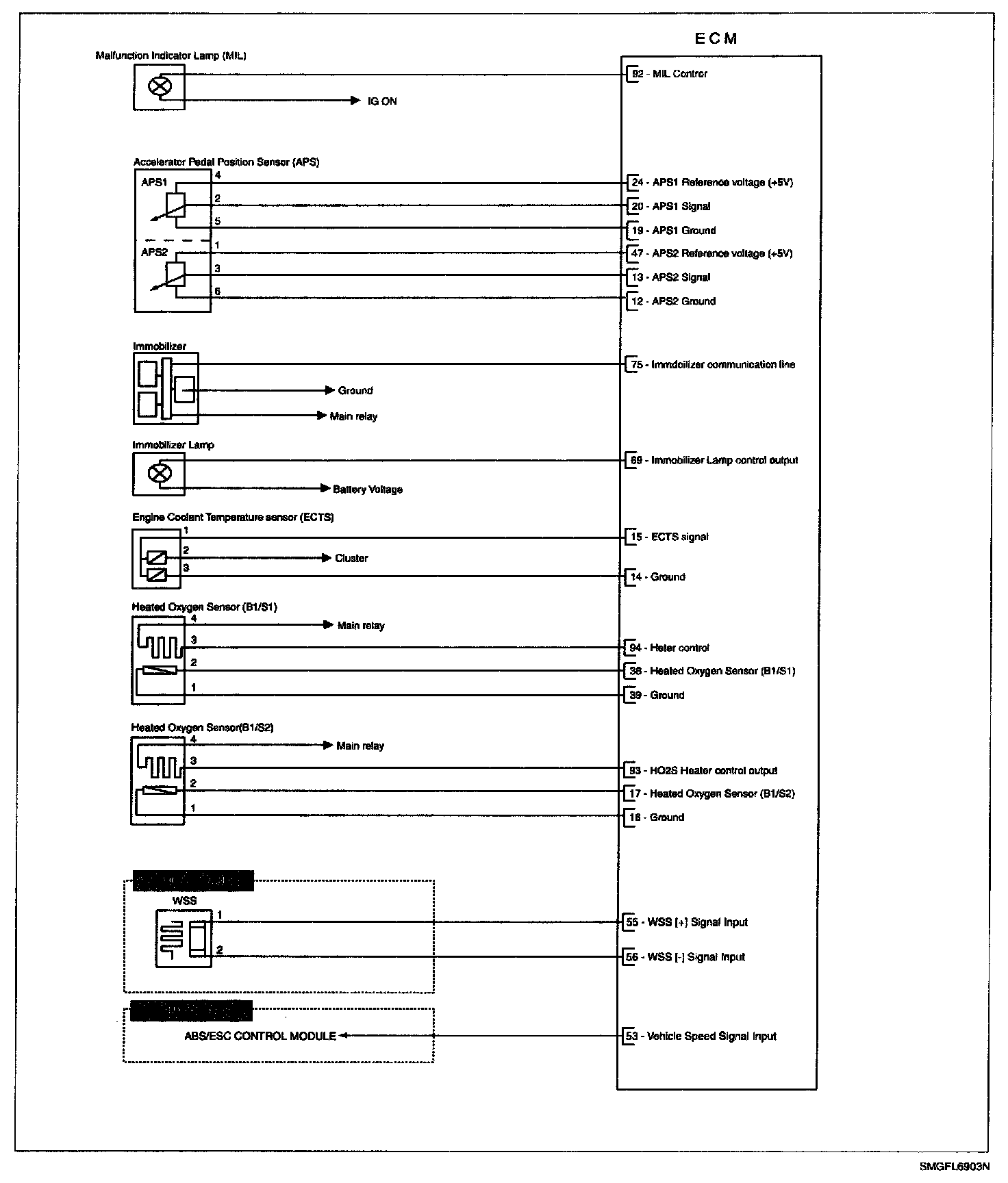

Circuit Diagram (Part 1):

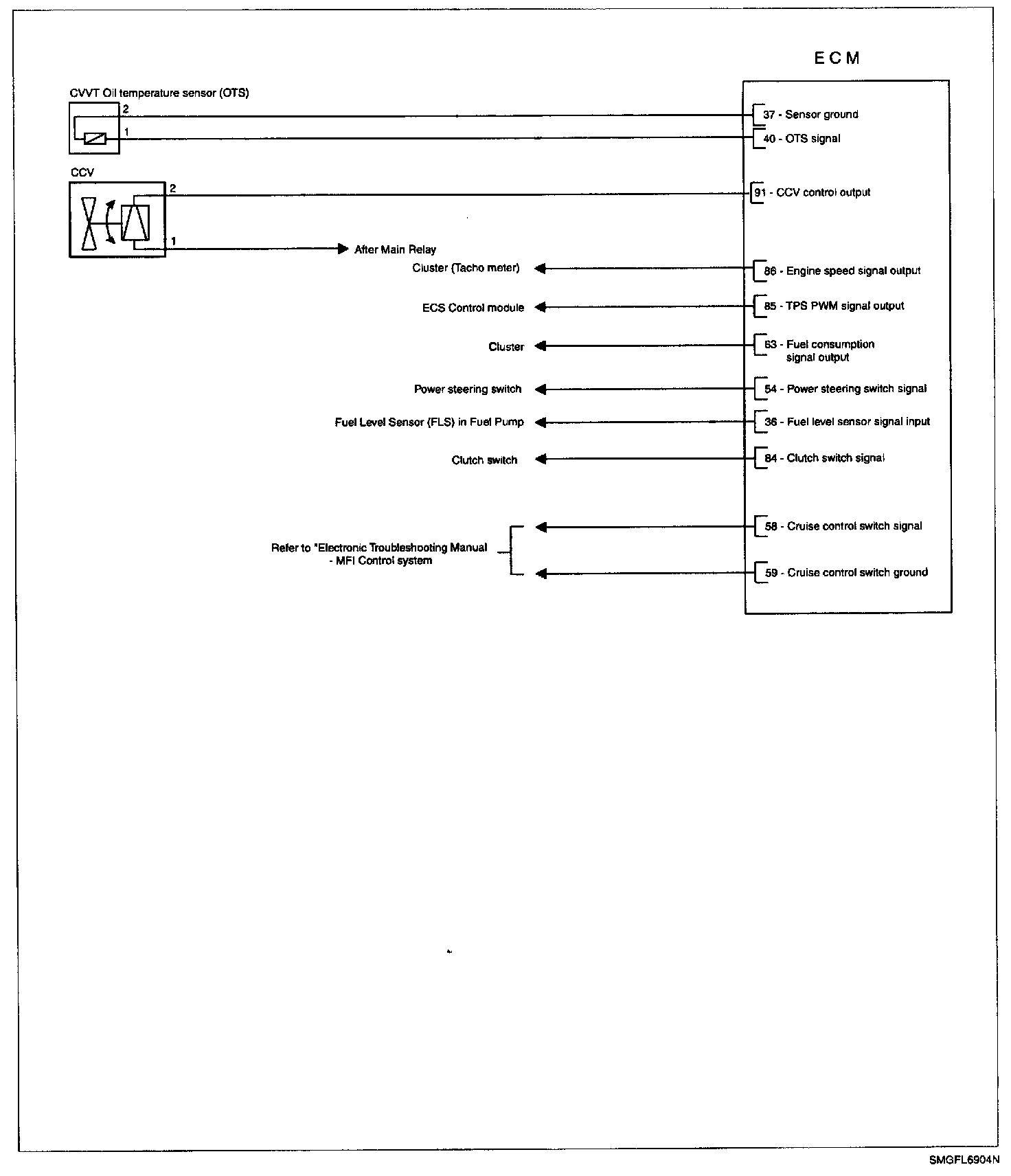

Circuit Diagram (Part 2):

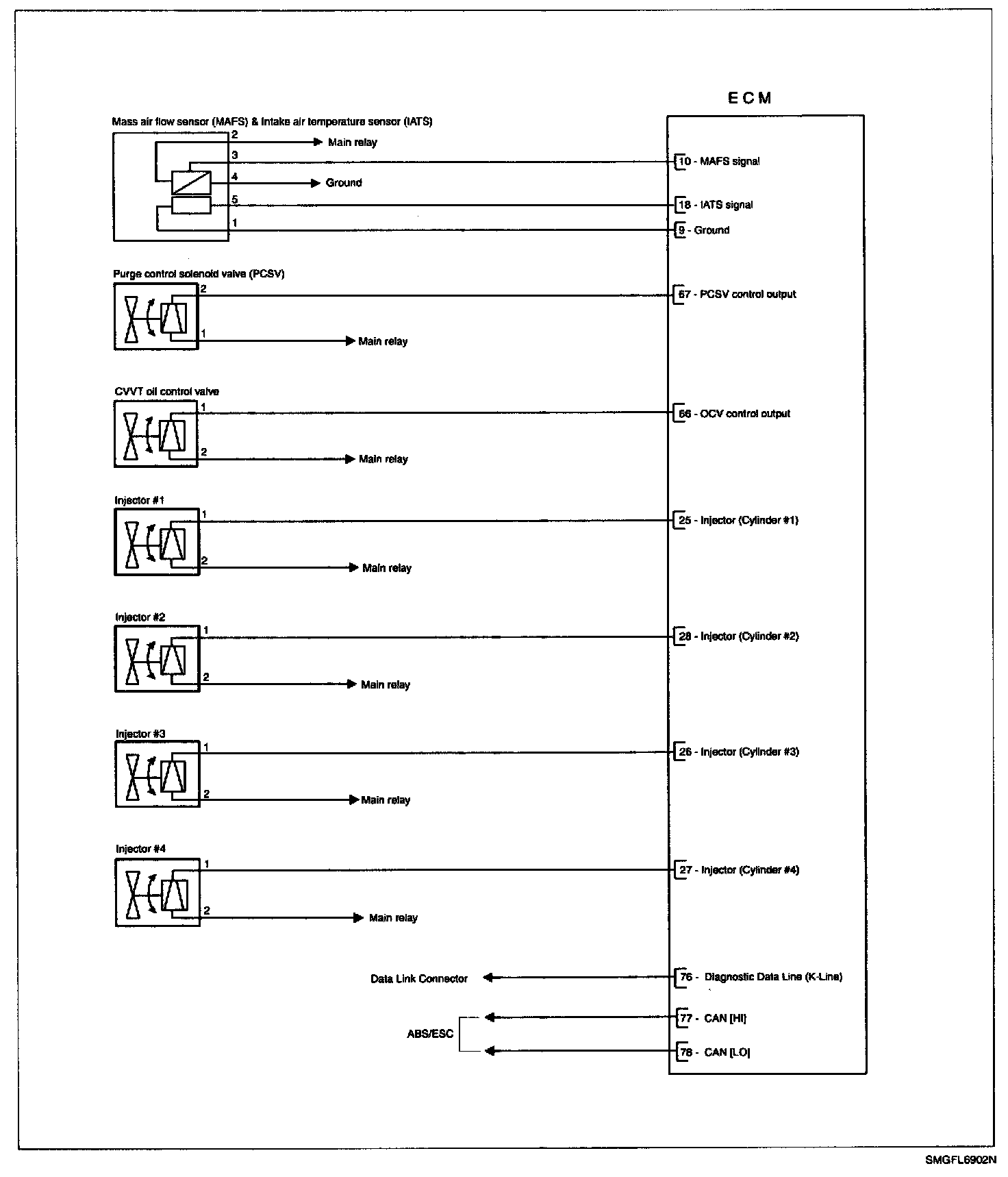

Circuit Diagram (Part 3):

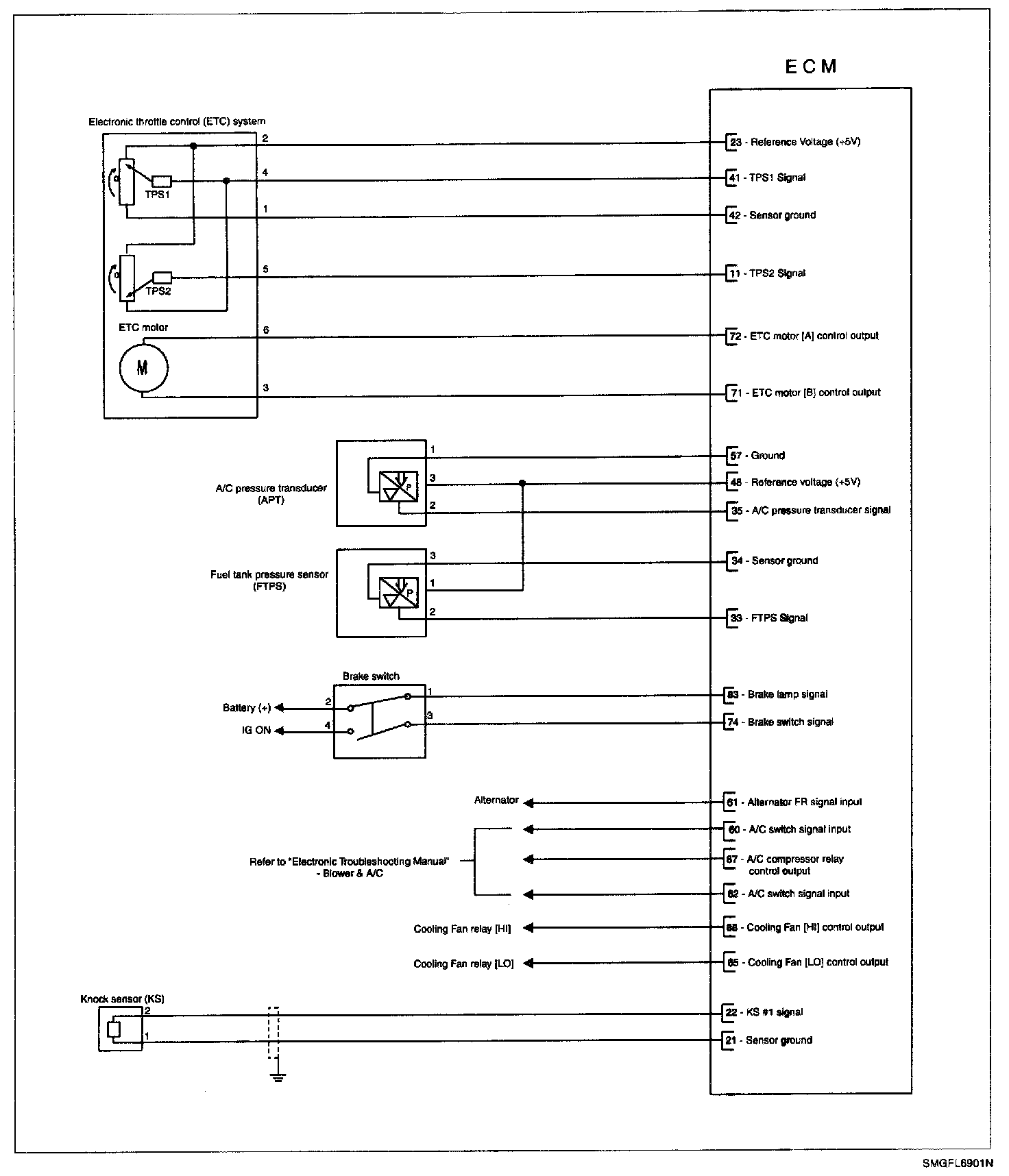

Circuit Diagram (Part 4):
Circuit Diagram (Part 5):
