ECS (Electronic Stability Control)
ECS (Electronic Stability Control)

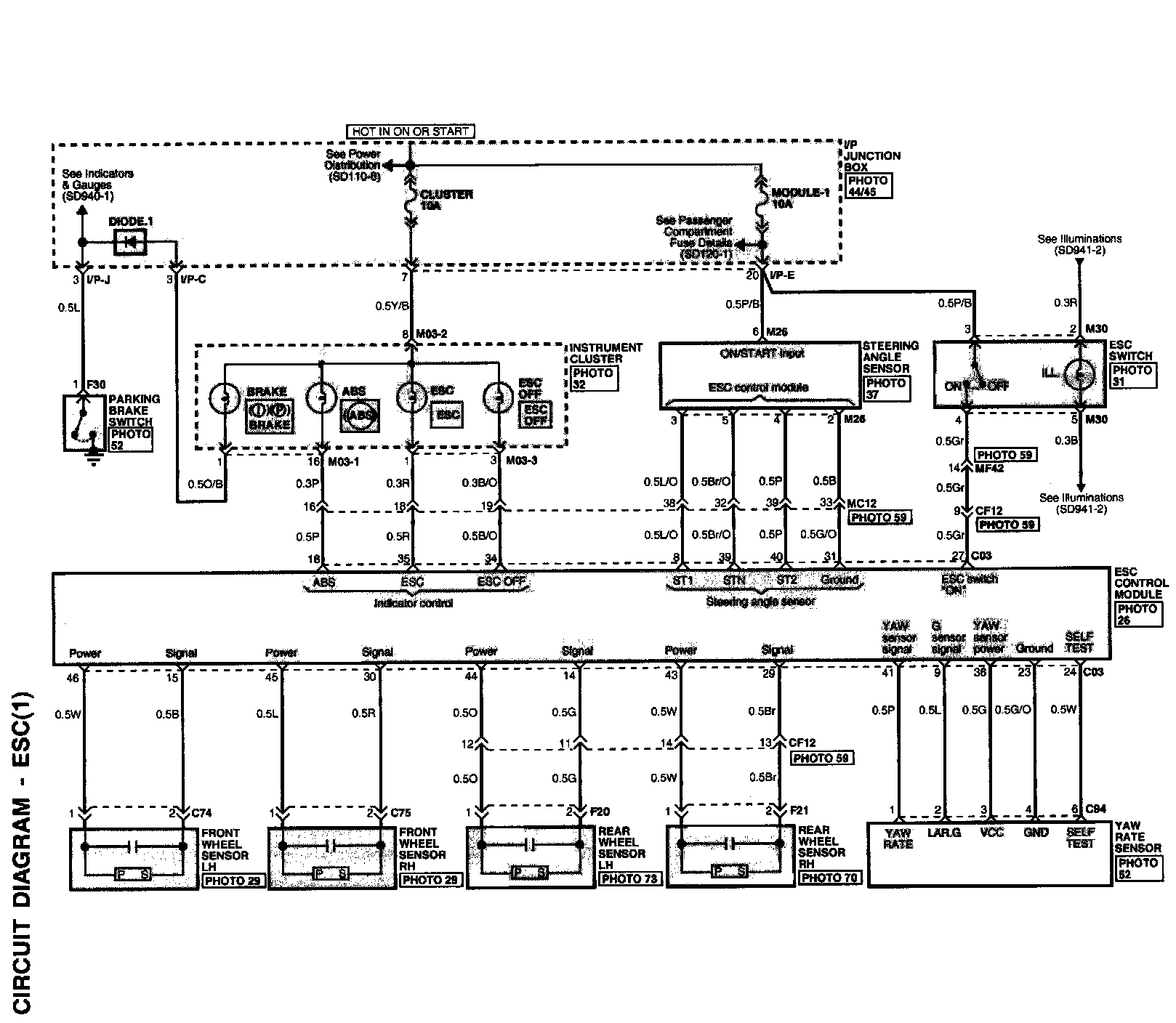

Circuit Diagram - ECS (1) For Electronic Stability Control System Part 1:

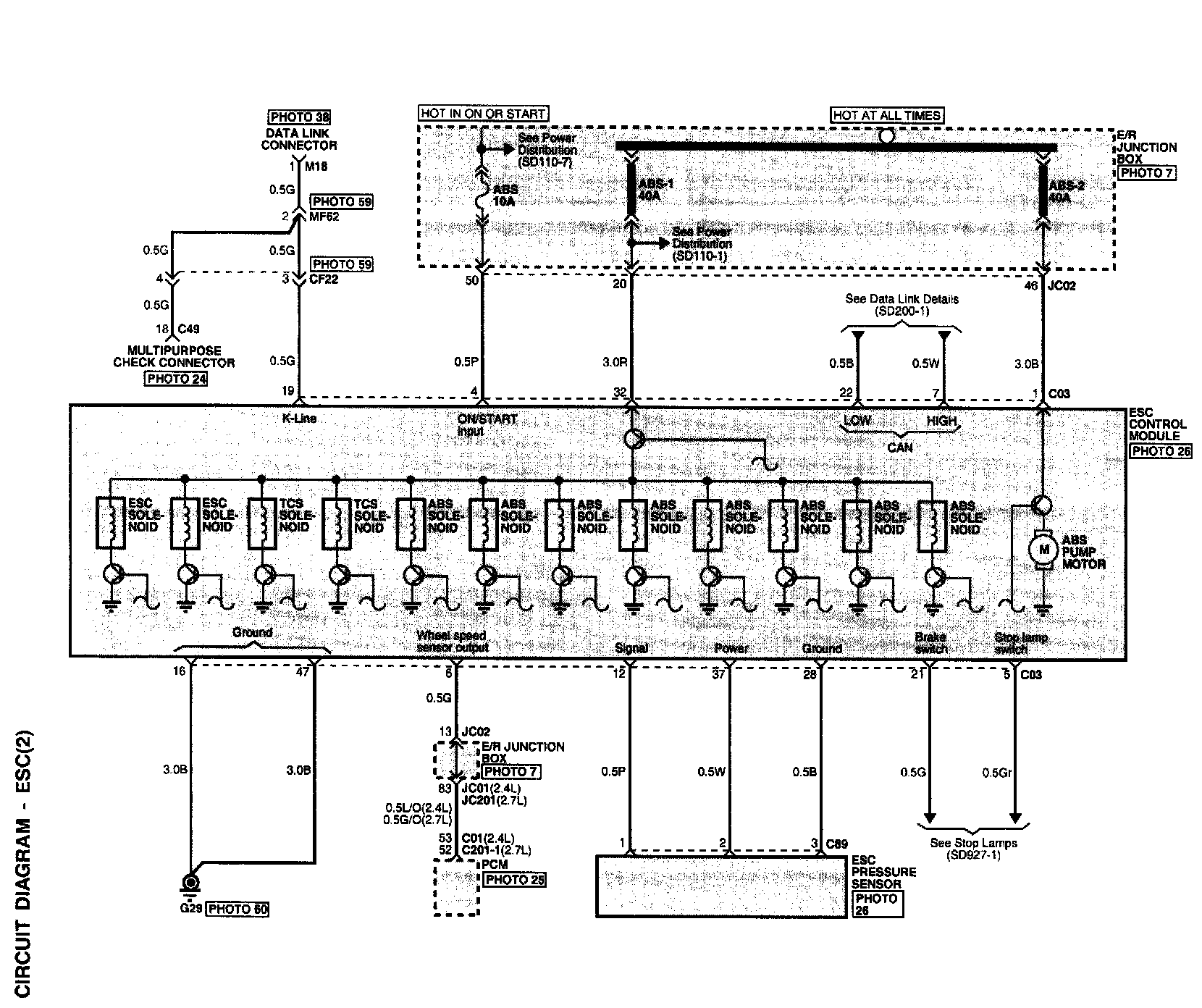

Circuit Diagram - ECS (2) For Electronic Stability Control System Part 2:
