ECM Mirror Replacement
ECM MIRROR REPLACEMENT

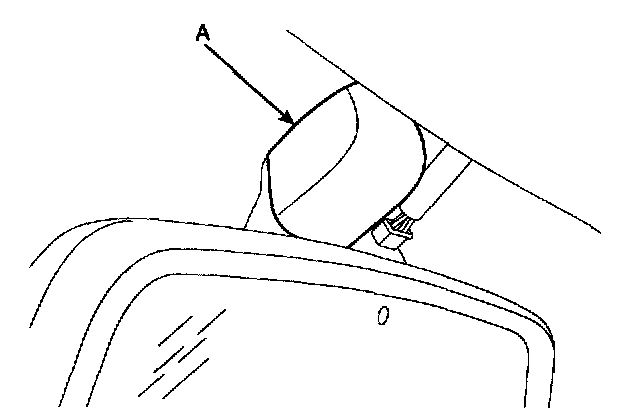

1. Remove the ECM mirror cover (A).

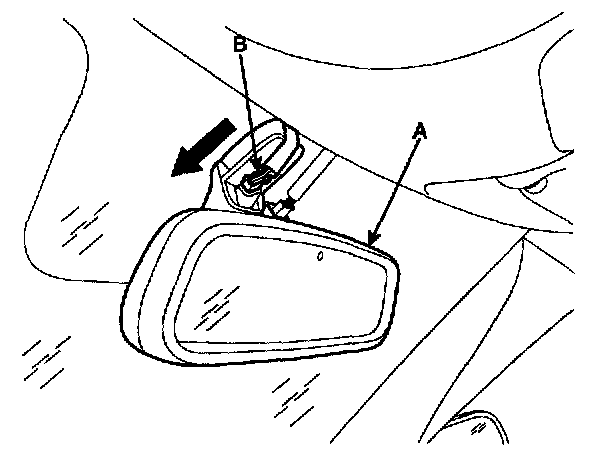

2. Remove the cover and connector (B).
3. Push the ECM mirror base down to remove the ECM mirror assembly (A).
4. Installation is the reverse of removal.
