Trunk Trim

TRUNK TRIM

REPLACEMENT

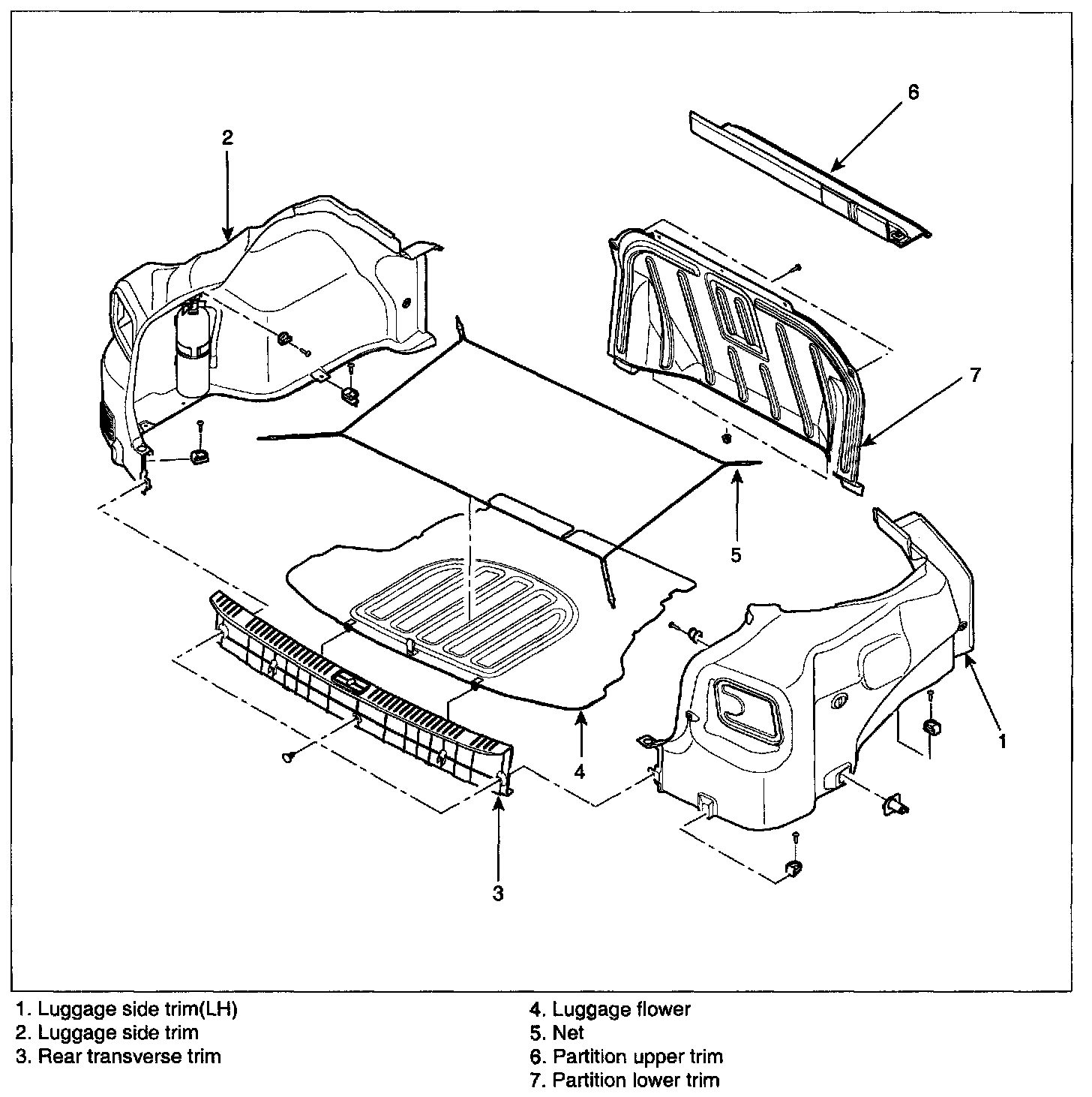

1. Remove the trunk trim.

NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE: Replace any damaged clips.
