Back Window Glass: Service and Repair

REMOVAL

1. Remove rear pillar trim.

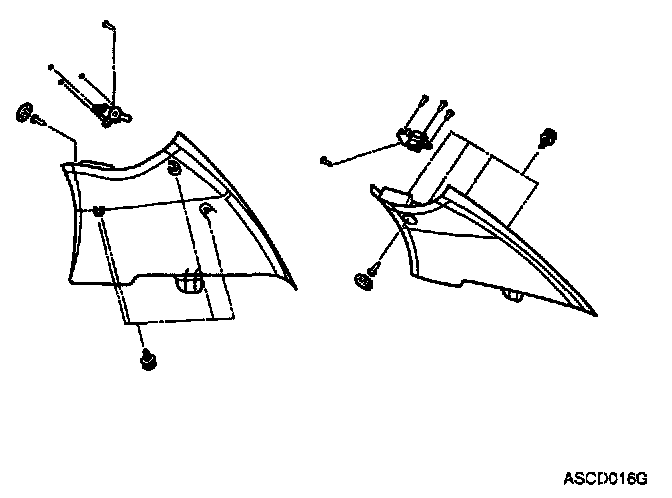

1. Remove rear pillar trim blanking cover.
2. Remove rear pillar trim screw.

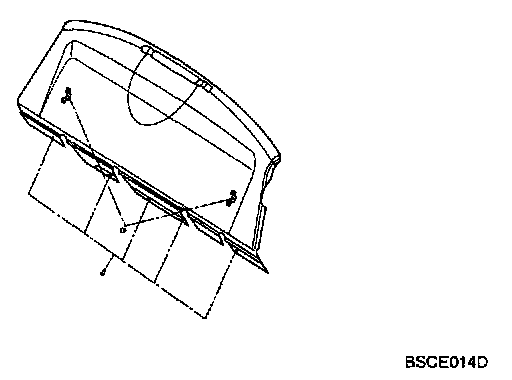

2. Remove package tray.

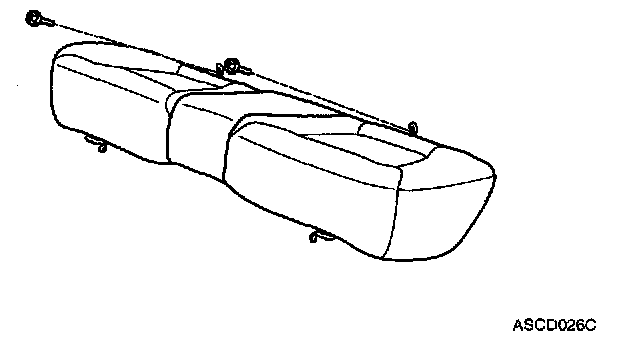

1. Remove rear seat cushion.

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

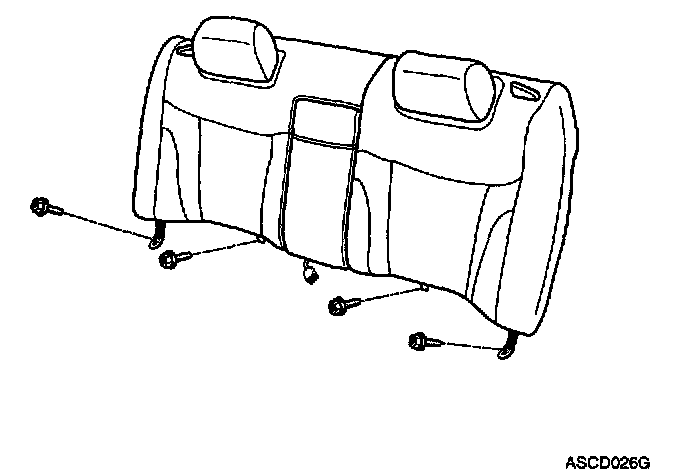

2. Remove rear seatback.

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

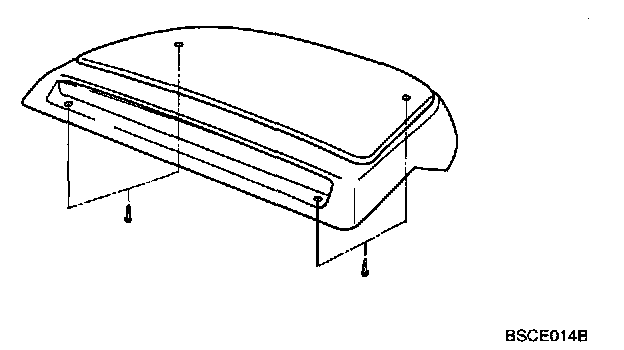

3. Remove hi-mounted brake lights.




4. Remove package tray.

3. Disconnect rear window defroster connector.

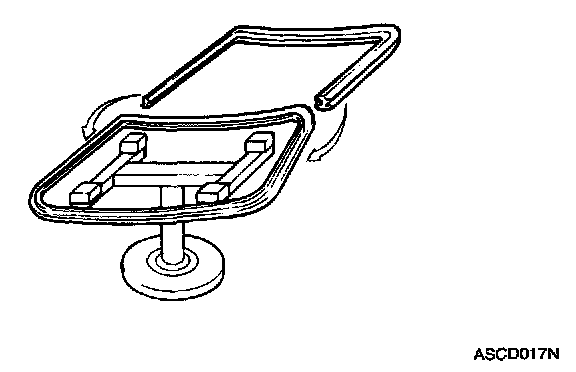

4. Remove the rubber molding from around the window glass.

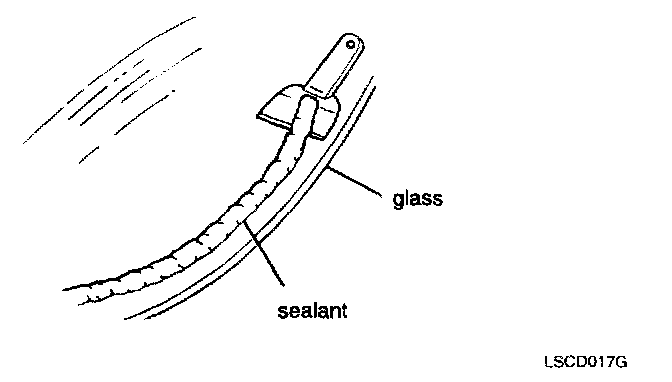

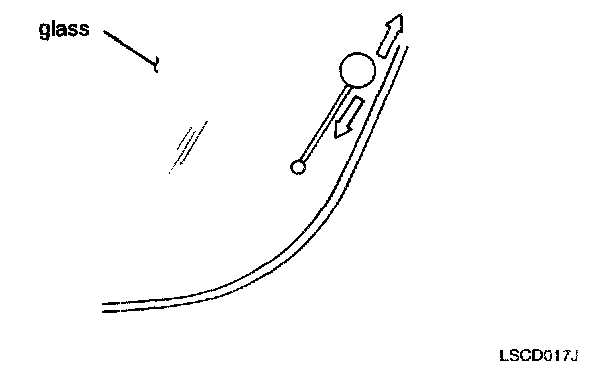

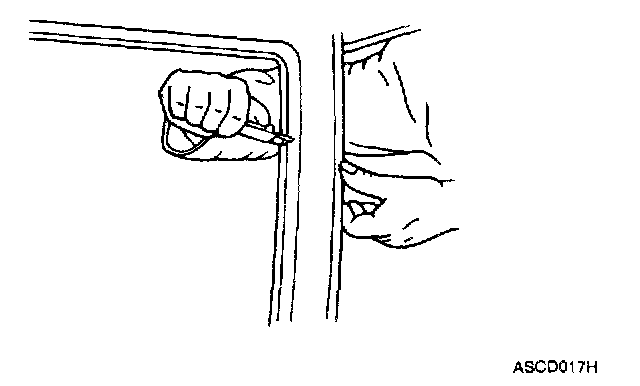

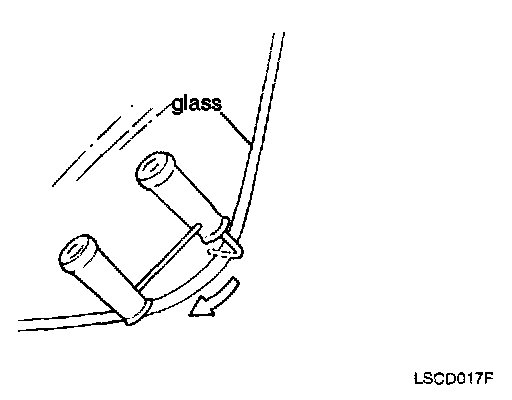

5. Pierce the sealant with a pull knife and cut all the way around the windshield from outside the vehicle.
6. Remove the glass to a safe place.

INSTALLATION




1. Remove the excess sealant from the glass with a window scraper.




2. Remove the excess sealant and foam dam from the body with a knife.
3. Clean the inside of the glass with commercial glass cleaner and a lint-free cloth.

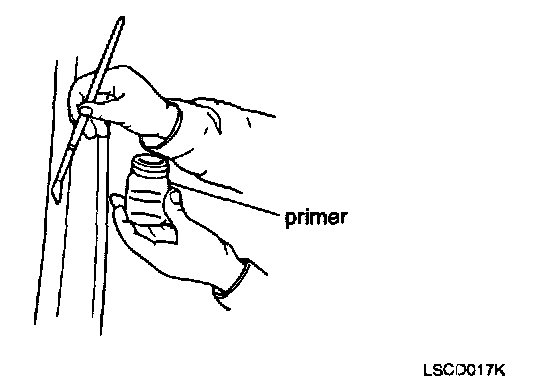

4. Prime an area approximately 20 mm (3/4 inch) wide around the complete perimeter of the glass.




5. Prime the contact area on the body.
6. Reprime the same area on the inside surface of the glass.

CAUTION: Do not permit any primed surface to become contaminated with dirt, water, oil, etc. Do not touch primed surfaces with your hands. Contamination will affect adhesion.

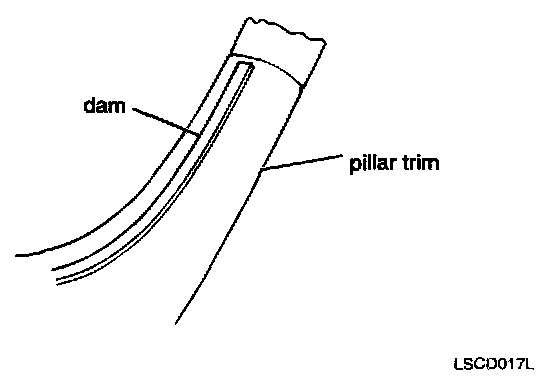

7. Install the self-adhesive foam dam to the body where the original dam had been.

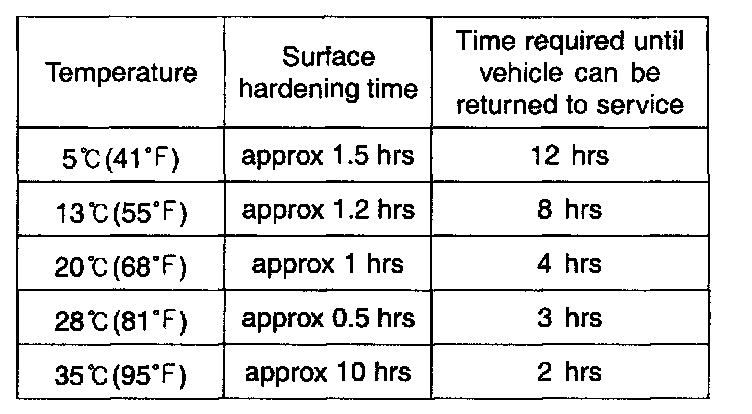

NOTE: The following cure times may be critical. Attempting to replace a windshield in ambient temperature over 35 °C (95 °F) should be avoided before completing the application.

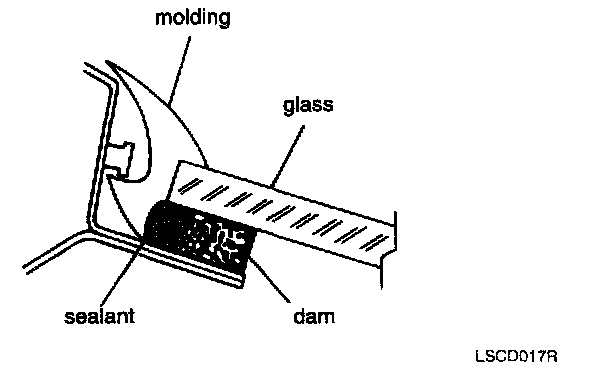

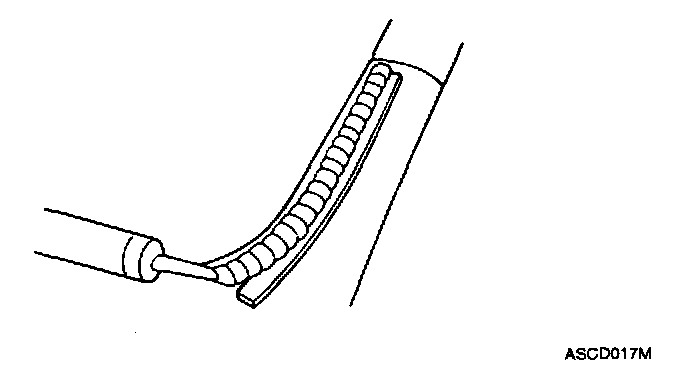

8. Apply the sealant bead to the body just outside the dam. The bead should be slightly higher than the dam.




9. Install molding on the glass.

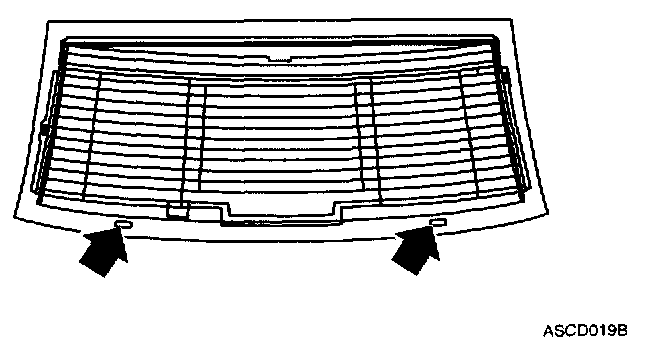

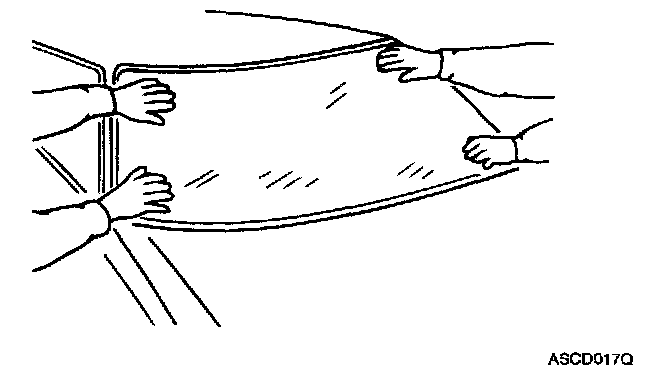

10. Install the glass into the body making sure the glass rests upon the two spacers at the bottom of the windshield.







11. Press glass firmly into place.

CAUTION: Lower both front door windows and leave them in that condition until the vehicle can be put back into service. If the vehicle were completely closed, quickly closing a door could break the seal.

12. Remove excess sealant, if any.
13. Press molding firmly into place.
14. Perform water leak test immediately.
15. Clean the outside of the window glass.
16. Install package tray.
17. Install both of the rear pillar trims.
