Pinout Values and Diagnostic Parameters

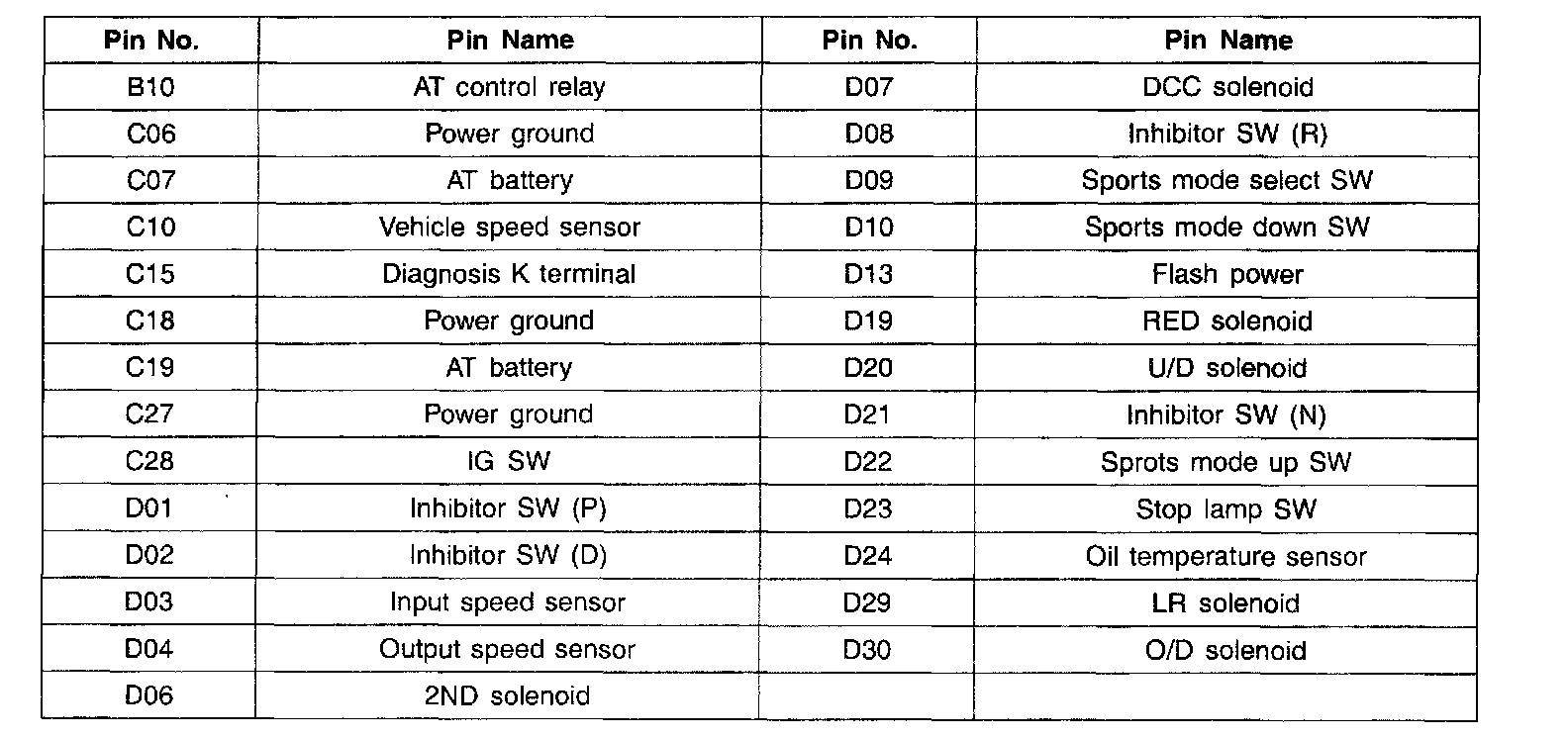

COMBINED ECM (ONLY AT) CONNECTOR PIN NO. AND NAME

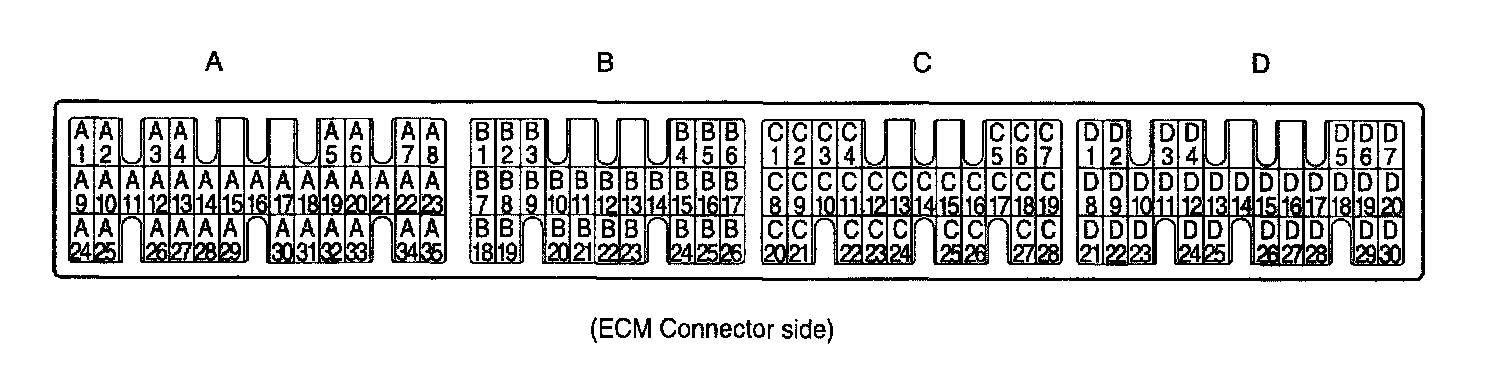

COMBINED ECM CONNECTOR

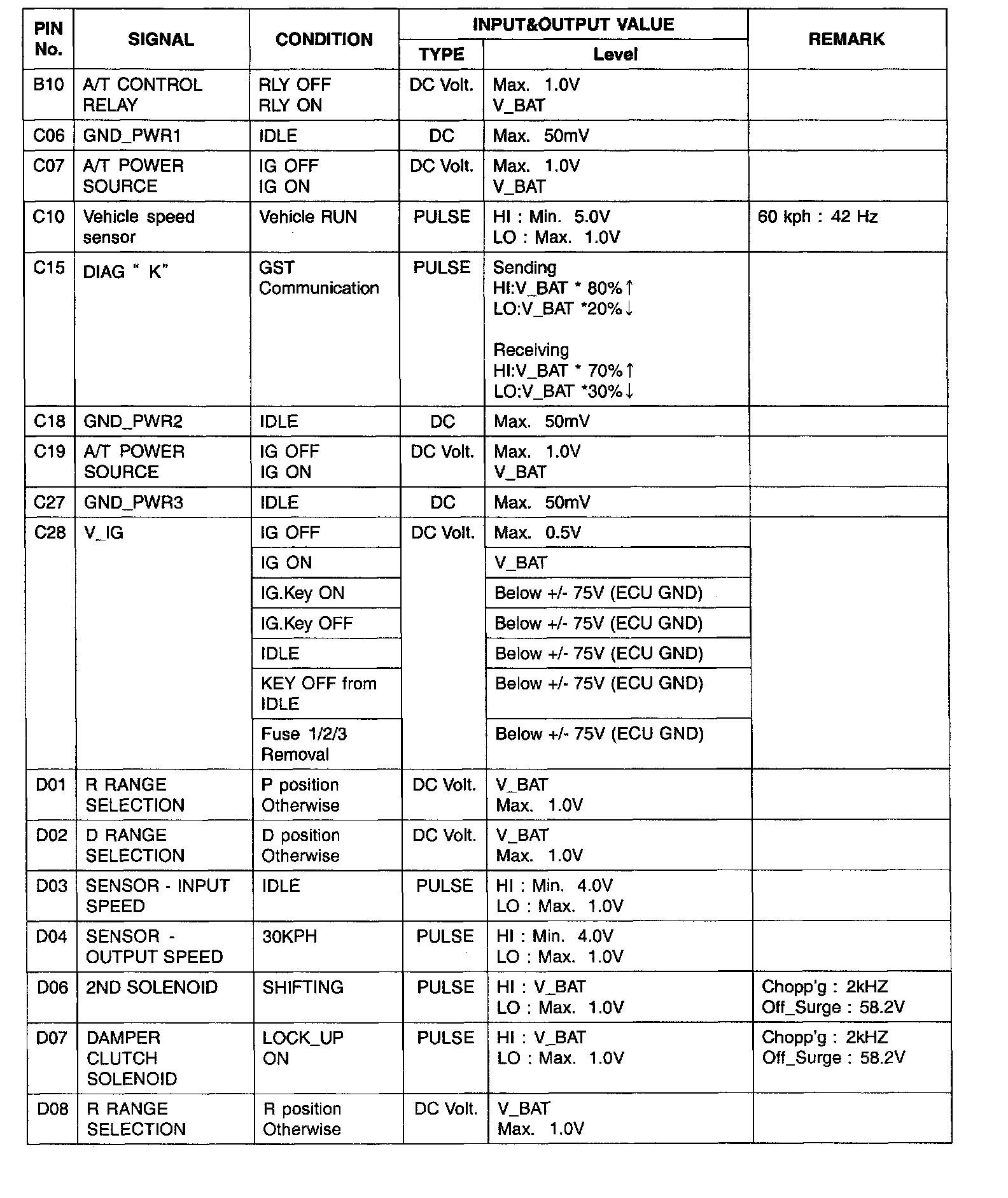

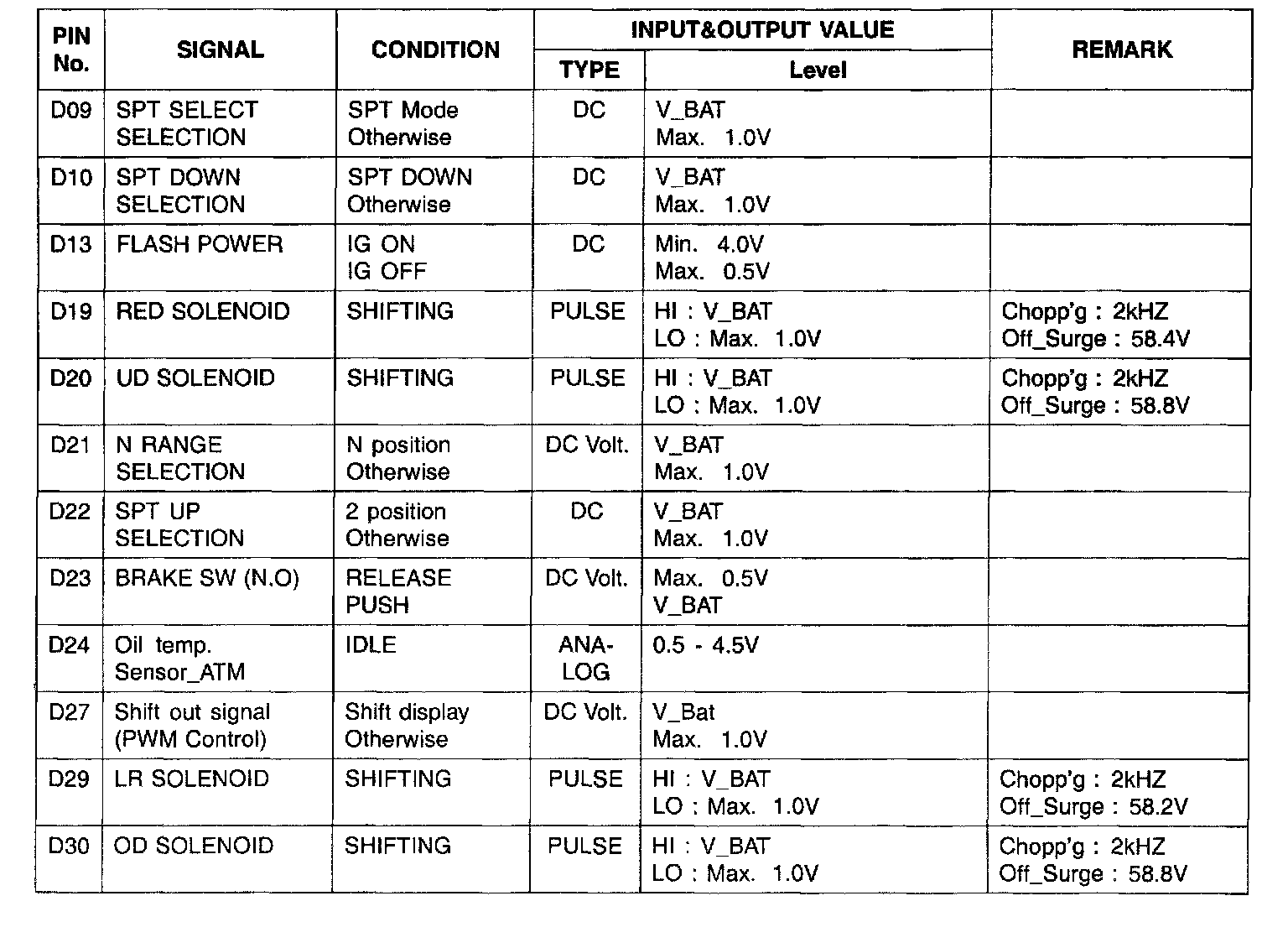

ECM TERMINAL INPUT/OUTPUT CHECK SHEET
