Fluid Temperature Sensor Checking

FLUID TEMPERATURE SENSOR CHECKING

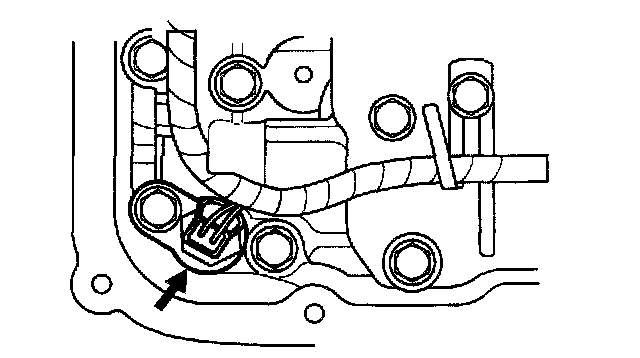

1. Remove the fluid temperature sensor.

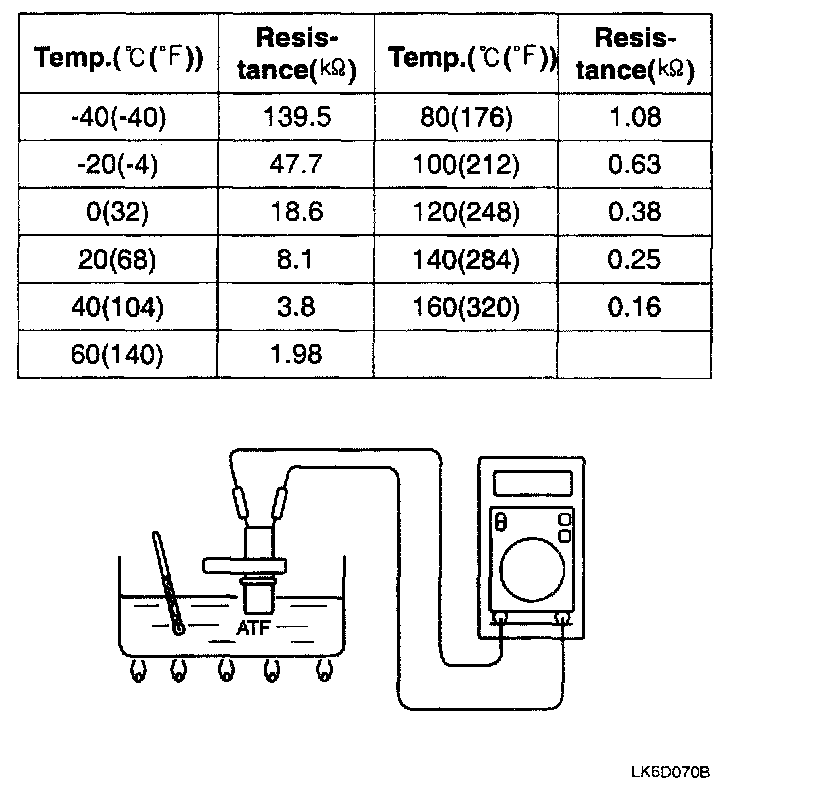

2. Check the resistance between the connector terminal No.1 and 2 at the fluid temperature sensor side.





STANDARD VALUE

3. If the resistance deviates from the standard value, then replace the temperature sensor.
