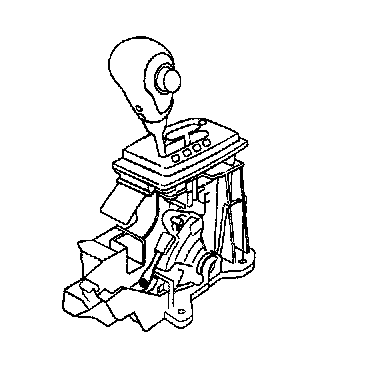

Checking Sport Mode Selection Switch

CHECKING SPORT MODE SELECTION SWITCH

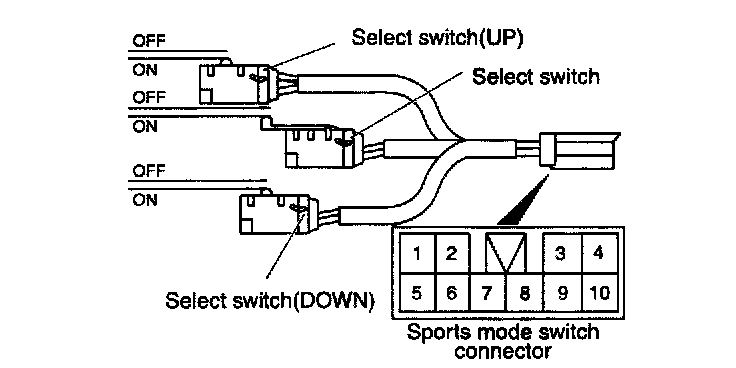

In order to set the shifting pattern according to drive requirement, it will detect if it is in SPORTS MODE or AUTO MODE. In SPORTS MODE, it will check the UP/DOWN shift signal and transmit the shift control signal to the integrated ECM.

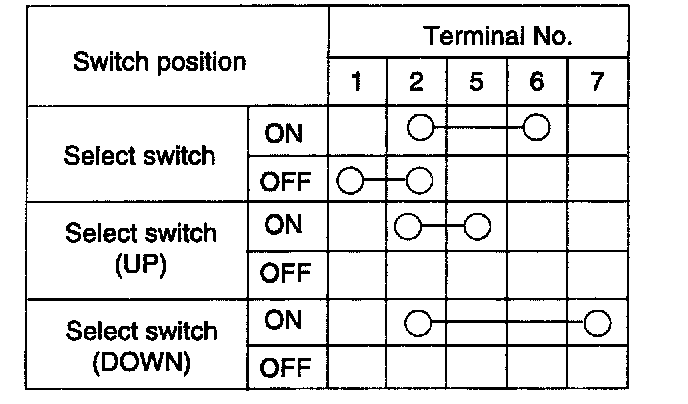

CHECK
